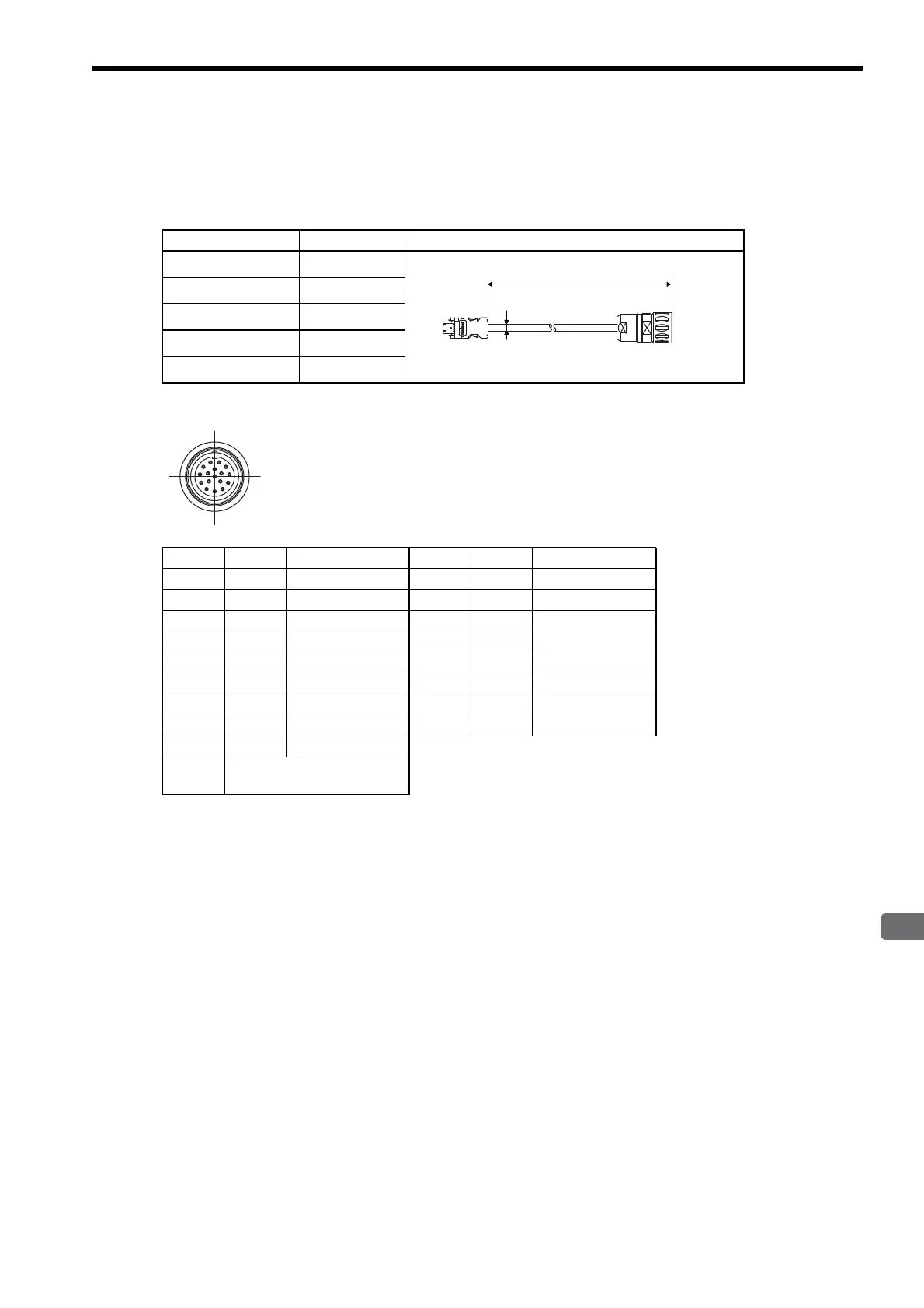

5.4 Encoder Cables for CN2 Connector

5-47

Specifications and Dimensional Drawings of Cables and Peripheral Devices

5.4.7 Encoder Cable With a Waterproof Connector for SGMAH and SGMPH

Servomotors

(1) Cable Type

(2) Connector Pin Arrangement

Cable Type Length (L) Dimensional Drawing

DP9325256-1

3 m

DP9325256-2

5 m

DP9325256-3

10 m

DP9325256-4

15 m

DP9325256-5

20 m

Finished dimension

φ6.5 mm

Soldered connector

(Molex Japan Co., Ltd.)

Crimped connector

(Interconnectron GmbH)

SERVOPACK end Servomotor end

Pin No. Signal Lead Color Pin No. Signal Lead Color

BAT(-) Orange/white

−−

BAT(+) Orange

−−

PS Light blue

−−

/PS Light blue/white

−−

PG5V Red

−−

PG0V Black

Shell

FG (Frame Ground Shield

Wire)
