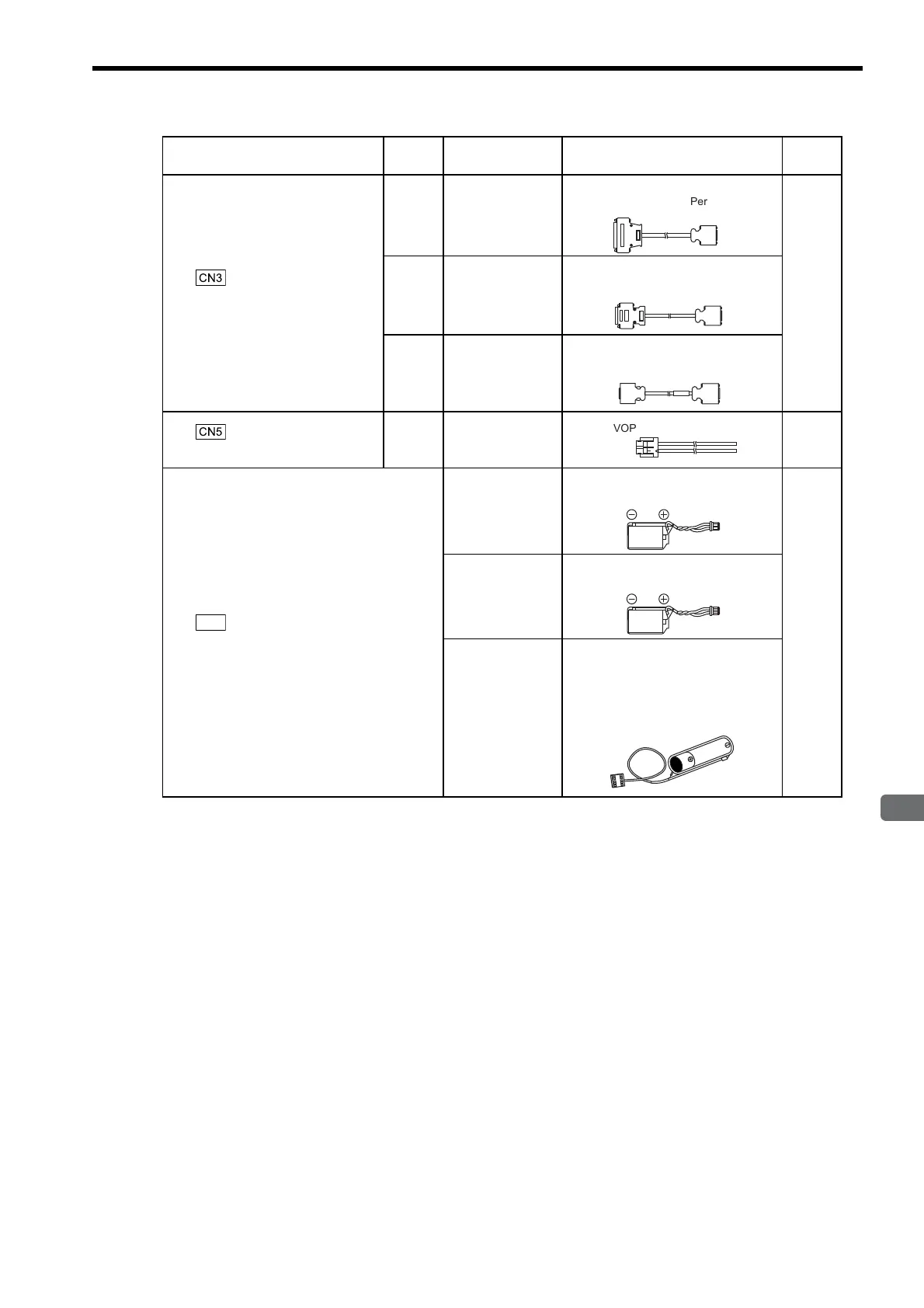

2.5 Selecting Peripheral Devices

2-27

Selections

Connection Cable for Personal

Computer

2 m JZSP-CMS01

D-Sub 25-pin (For PC98)

5.8.1

2 m JZSP-CMS02

D-Sub 9-pin (For DOS/V)

2 m JZSP-CMS03

Half-pitch 14-pin (For PC 98)

Analog Monitor Cable

1 m

JZSP-CA01 or

DE9404559

5.8.3

Battery for Absolute Encoder

JZSP-BA01

To mount in the SERVOPACK

(30 W to 5.0 kW)

5.8.8

JZSP-BA01-1

To mount in the SERVOPACK

(6.0 kW to 15.0 kW)

ER6VC3

To connect to a host controller (pro-

vided by a customer)

3.6 V 2000 mAh

manufactured by Toshiba Battery

Co., Ltd.

Name Length Type Specifications

Refer-

ence

CN3

Personal

computer end

SERVOPACK

end

Personal

computer end

SERVOPACK

end

Personal

computer end

SERVOPACK

end

CN5

SERVOPACK end

Monitor end

CN8
