YASKAWA Sigma II Series User Manual

5 Specifications and Dimensional Drawings of Cables and Peripheral Devices
5.2.13 Connector Dimensional Drawings
5-34
(2) Connectors Conforming to European Safety Standards (TÜV Certified), Manufactured
by Japan Aviation Electronics Industry, Ltd.
Contact Yaskawa Controls Co., Ltd.

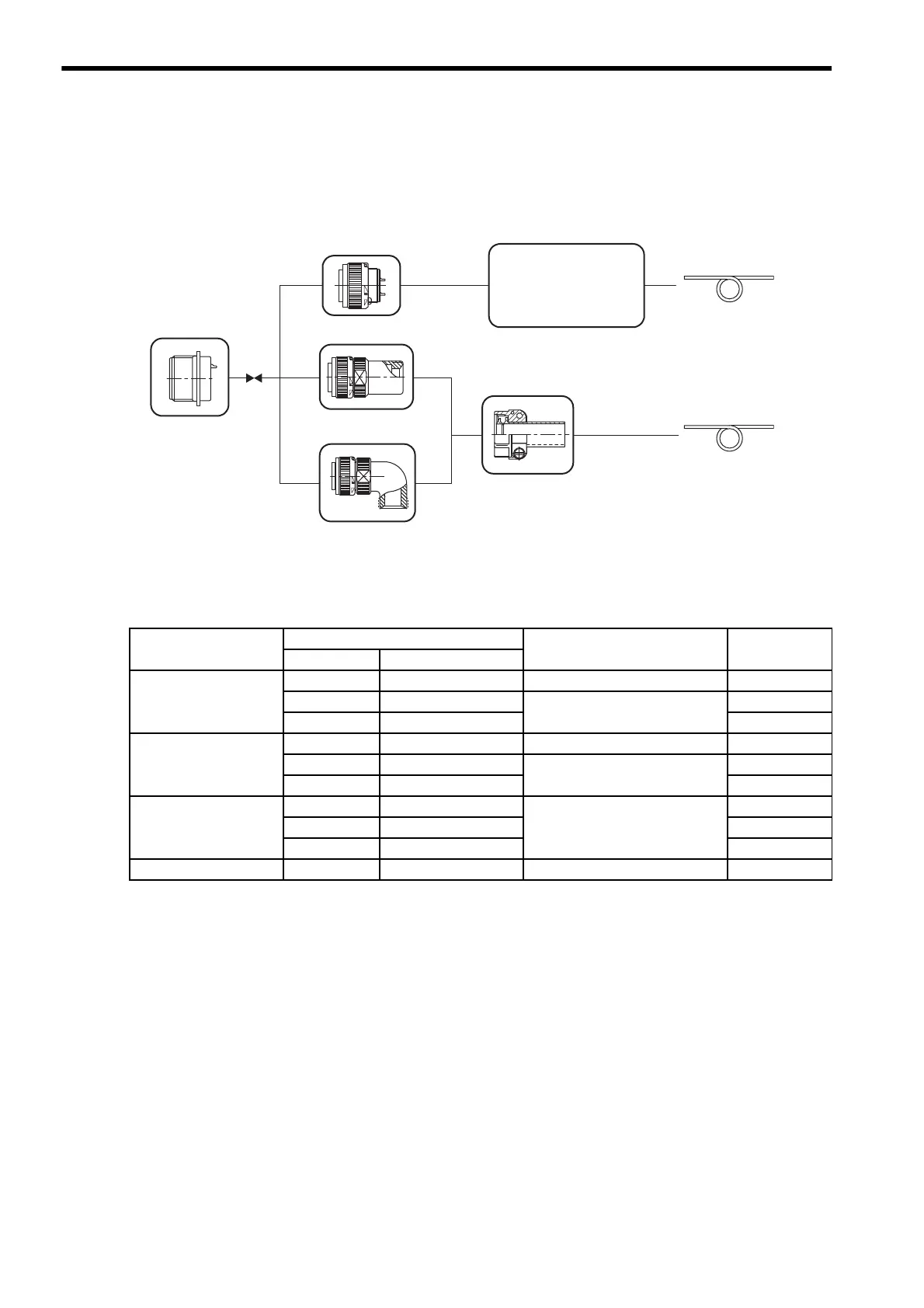

(a) JL04V Series Products
For more information, contact the manufacturer of the conduit being used.
Receptacle
(Waterproof)
Box mounting type
Plug
(Waterproof when inserted only)
Straight plug
L-shaped plug
Cable Clamp
(Waterproof when inserted only)
Note: Possible to connect with an MS connector
Cable
Cable
Conduit
 Nippon Flex Co., Ltd.
Manufacturers

DAIWA DENGYO Co., Ltd.
 NEOFLEX Co., Ltd.
 SANKEI Manufacturing Co., Ltd.
Receptacle
Plug
Waterproof Cable Clamp Reference
Type Model
JL04V-2E20-15PE-B
Plug JL04V-6A20-15SE Applicable with conduit
(d)
Straight plug JL04V-6A20-15SE-EB
JL04-2022CK(14) or applicable
with conduit
(b) and (e)
L-shaped plug JL04V-8A20-15SE-EB
(c) and (e)
JL04HV-2E22-22PE-B
Plug JL04V-6A22-22SE Applicable with conduit
(d)
Straight plug JL04V-6A22-22SE-EB
JL04-2022CK(14) or applicable
with conduit
(b) and (e)
L-shaped plug JL04V-8A22-22SE-EB
(c) and (e)
JL04HV-2E24-10PE-B
Plug JL04V-6A24-10SE
JL04-2028CK(14) or applicable
with conduit
(d)
Straight plug JL04V-6A24-10SE-EB
(b) and (e)
L-shaped plug JL04V-8A24-10SE-EB
(c) and (e)
JL04V-2E32-17PE-B Plug JL04V-6A32-17SE Applicable with conduit
(d)
