5 Specifications and Dimensional Drawings of Cables and Peripheral Devices

5.4.4 Cable with Loose Wire at Encoder End for SGMGH, SGMSH, and SGMDH Servomotors

5-42

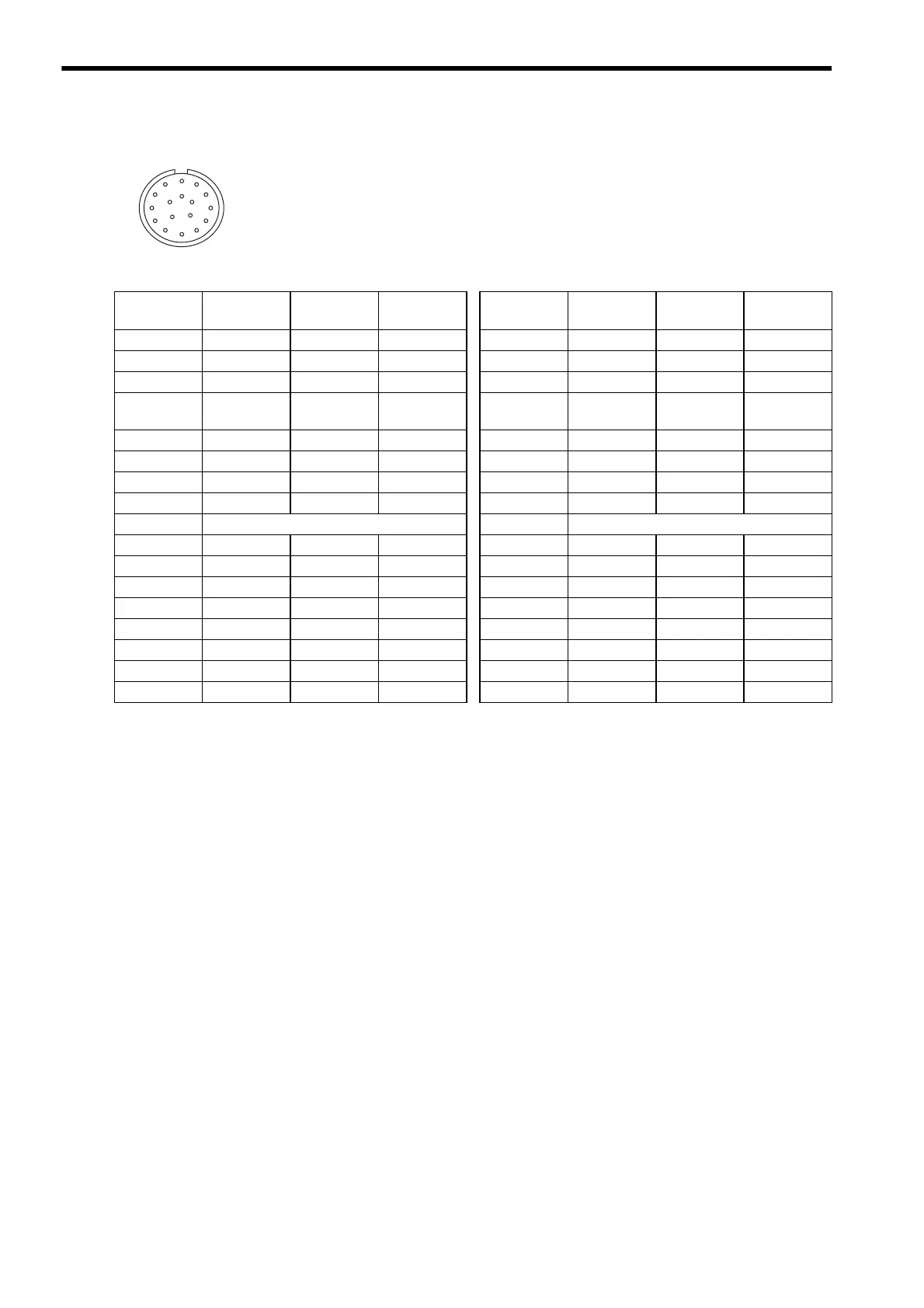

(3) Encoder Plug Connector Pin Arrangement

17-bit Absolute Encoder Connection Specifications 17-bit Incremental Encoder Connection Specifications

Pin No. Signal

Wire

Marker

Lead

Color

Pin No. Signal

Wire

Marker

Lead

Color

−−−

PS 5 Light blue

/PS 6

White/light

blue

/PS 6

White/light

blue

−−−

PG0V 2 Black

PG5V 1 Red

FG (Frame Ground) Shield wire

−−−

BAT(−) 4 White/orange

−−−

BAT(+) 3 Orange

−−−
