5 Specifications and Dimensional Drawings of Cables and Peripheral Devices

5.4.5 Encoder Flexible Cables for SGMAH and SGMPH Servomotors

5-44

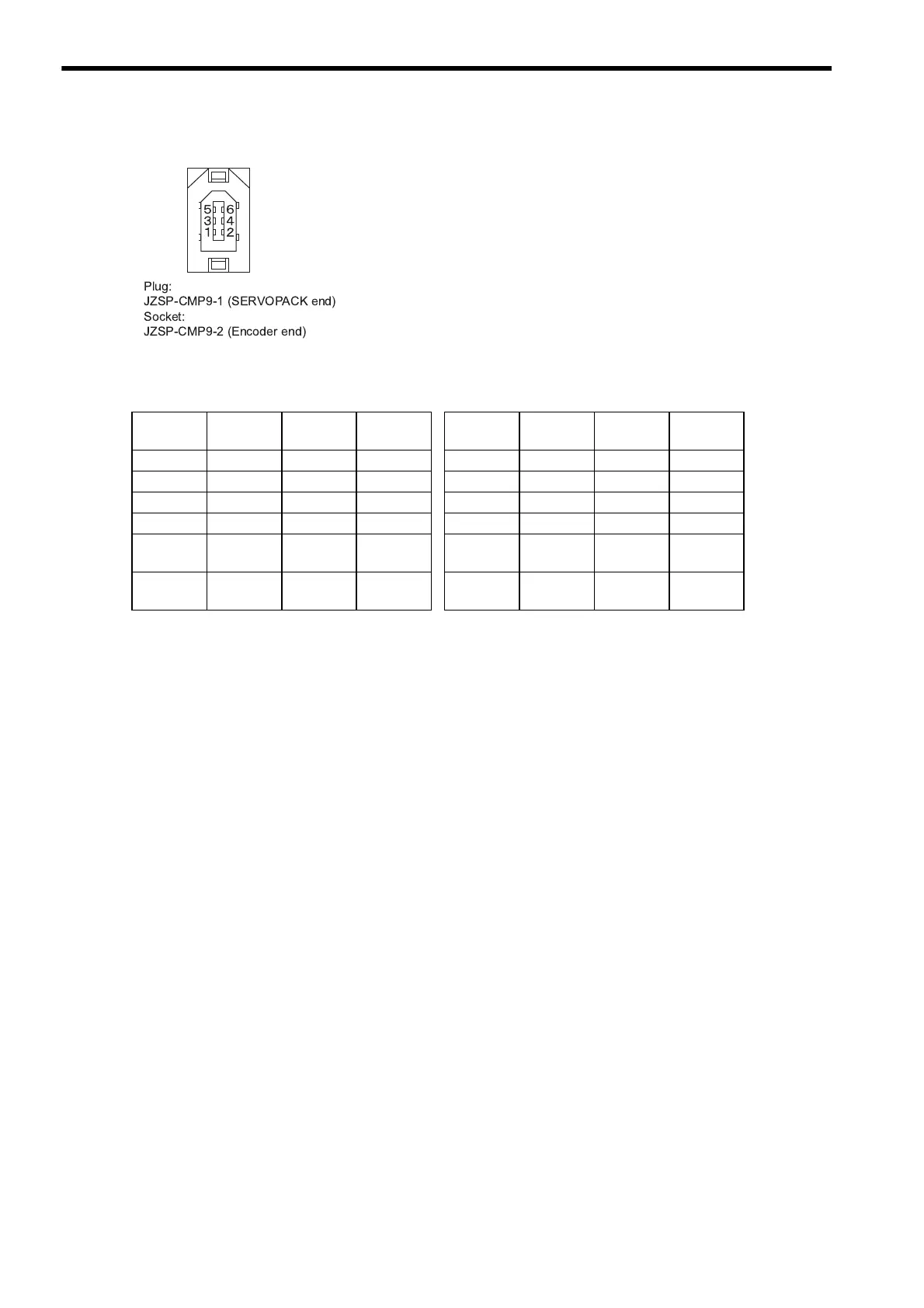

16-bit Serial Absolute Encoder Connection

Specifications

13-bit Serial Incremental Encoder Connection

Specifications

Pin No. Signal

Wire

Marker

Lead

Color

Pin No. Signal

Wire

Marker

Lead

Color

1 PG5V

Orange 1 PG5V

Orange

2 PG0V

Green 2 PG0V

Green

3 BAT(+)

Red/pink 3

− 3 −

4 BAT(−)

Black/pink 4

− 4 −

5 PS

Red/

light blue

5 PS

Red/

light blue

6 /PS

Black/

light blue

6 /PS

Black/

light blue



  



  
