5 Specifications and Dimensional Drawings of Cables and Peripheral Devices
5.8.10 Noise Filter
5-72
(2) Three-phase, 200 V
Select one of the following noise filters according to SERVOPACK capacity. For more details, refer to 2.5.3
Noise Filters, Magnetic Conductors, Surge Absorbers and DC Reactors.
Refer to 6.1.3 Typical Main Circuit Wiring Examples for the connection method.
(a) FN Series
Model FN258L-7/07 FN258L-16/07 FN258L-30/07

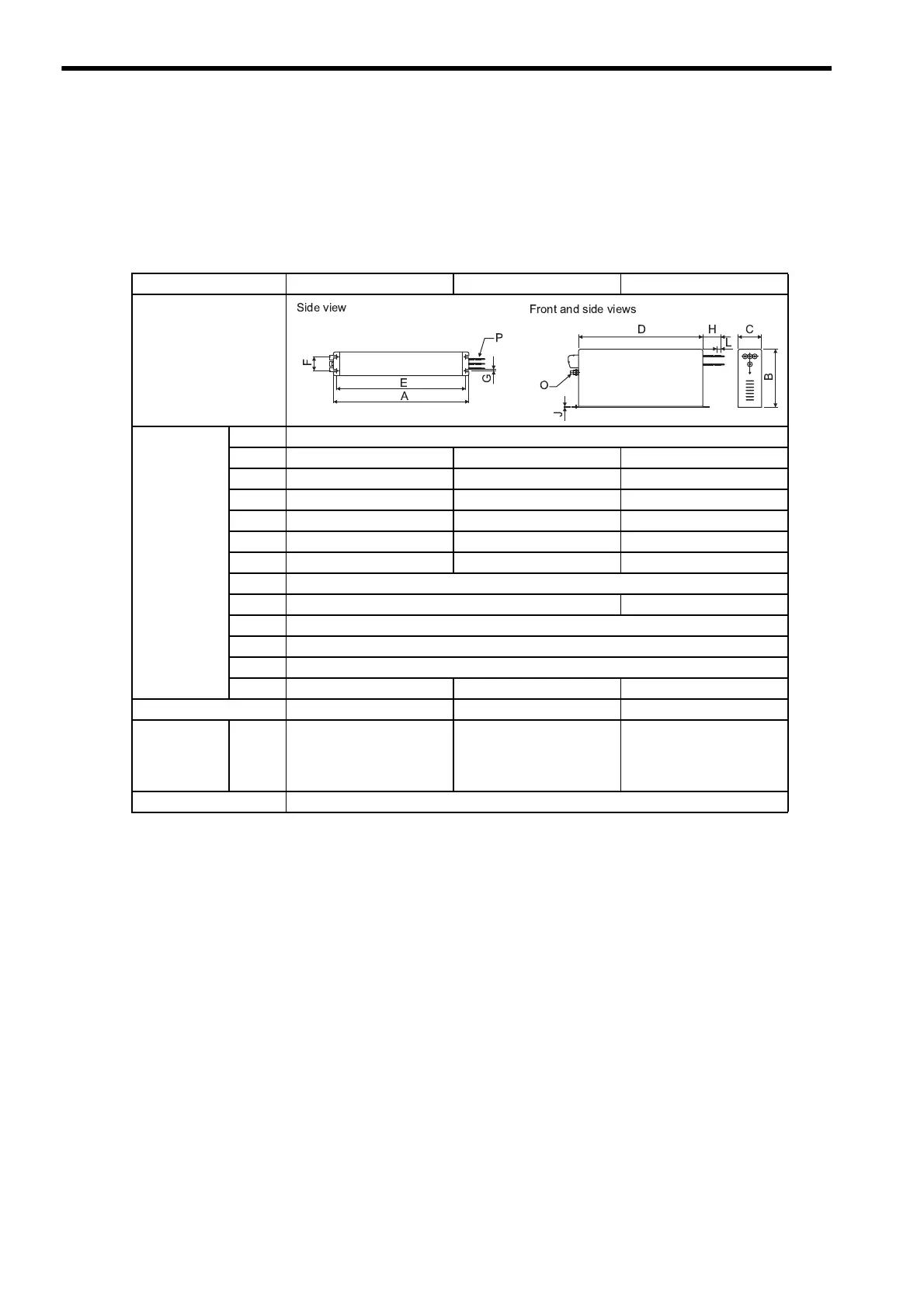

Dimensional Drawings
External
Dimensions
in mm
Symbol Dimensions
A
255 ± 1 305 ± 1 335 ± 1
B
126 ± 0.8 142 ± 0.8 150 ± 1
C
50 ± 0.6 55 ± 0.6 60 ± 0.6
D
225 ± 0.8 275 ± 0.8 305 ± 1
E
240 ± 0.5 290 ± 0.5 320 ± 0.5
F
25 ± 0.3 30 ± 0.3 35 ± 0.3
G
6.5 ± 0.2
H
300 ± 10 400 ± 10
J
1 ± 0.1
L
9 ± 1
O
M5
P
AWG16 AWG14 AWG10
Specifications
480 VAC, 7 A 480 VAC, 16 A 480 VAC, 30 A
Applicable
SERVOPACK
SGDM-
Three-
phase
200 V
05AD, 05ADA
08AD, 08ADA
10AD, 10ADA
15AD, 15ADA
20AD, 20ADA
30AD, 30ADA
Manufacturer
Schaffner Electronic
To Next Page
