5 Specifications and Dimensional Drawings of Cables and Peripheral Devices

5.8.10 Noise Filter

5-74

Model FS5559-35-33 FS5559-80-34 FS5559-150-35

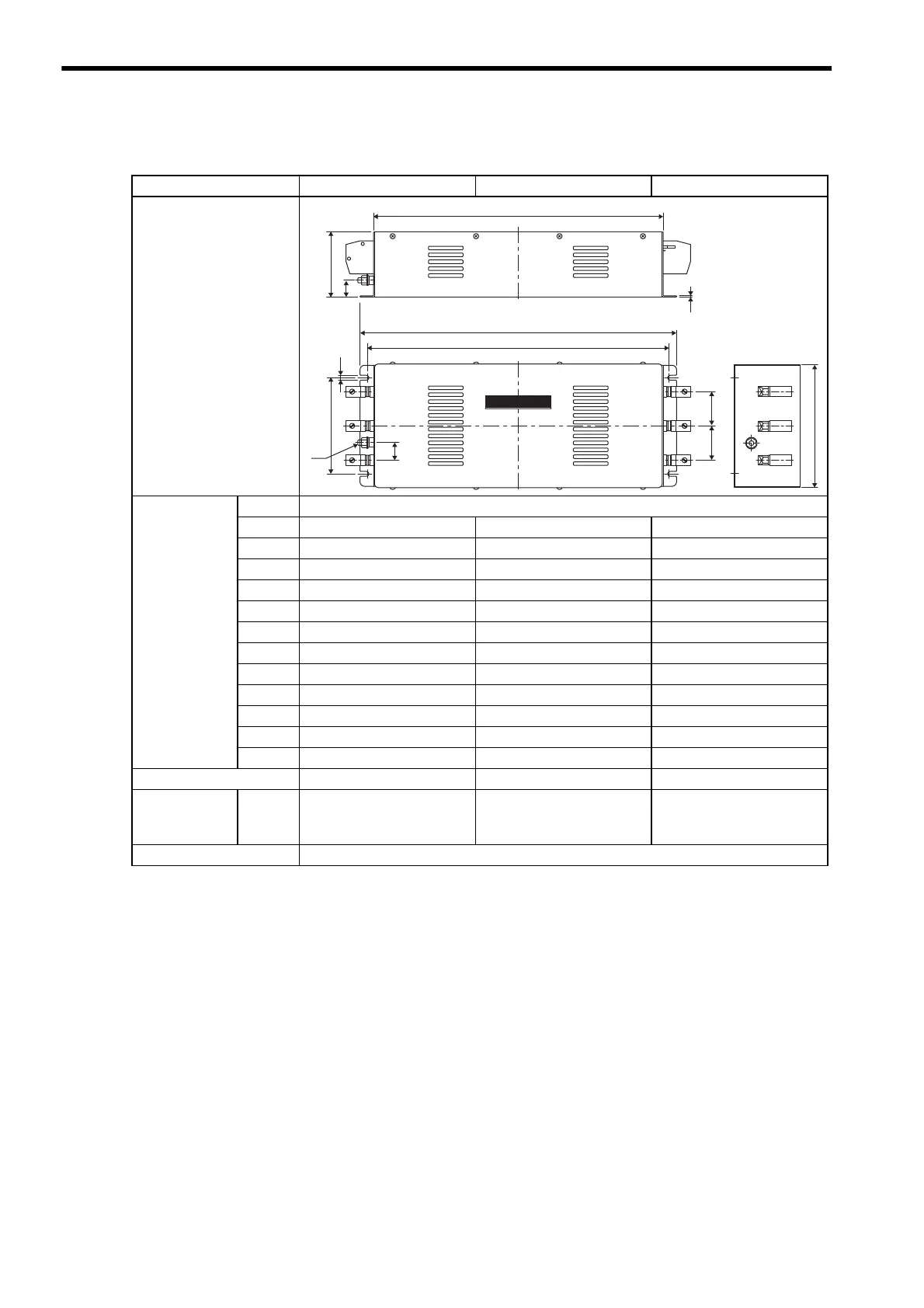

Dimensional Drawings

External

Dimensions

in mm

Symbol Dimensions

330 420 440

85 95 150

370 460 480

348 438 458

110 180 200

80 140 170

30 50 50

25 25 35

1.5 1.5 1.5

6.5 6.5 6.5

25 25 25

M6 M8 M10

Specifications

480 V, 35 A 480 V, 80 A 480 V, 150 A

Applicable

SERVOPACK

SGDM-

Three-

phase

200 V

−−

1AADA

1EADA

Manufacturer

Schaffner Electronic

SCHAFFNER
