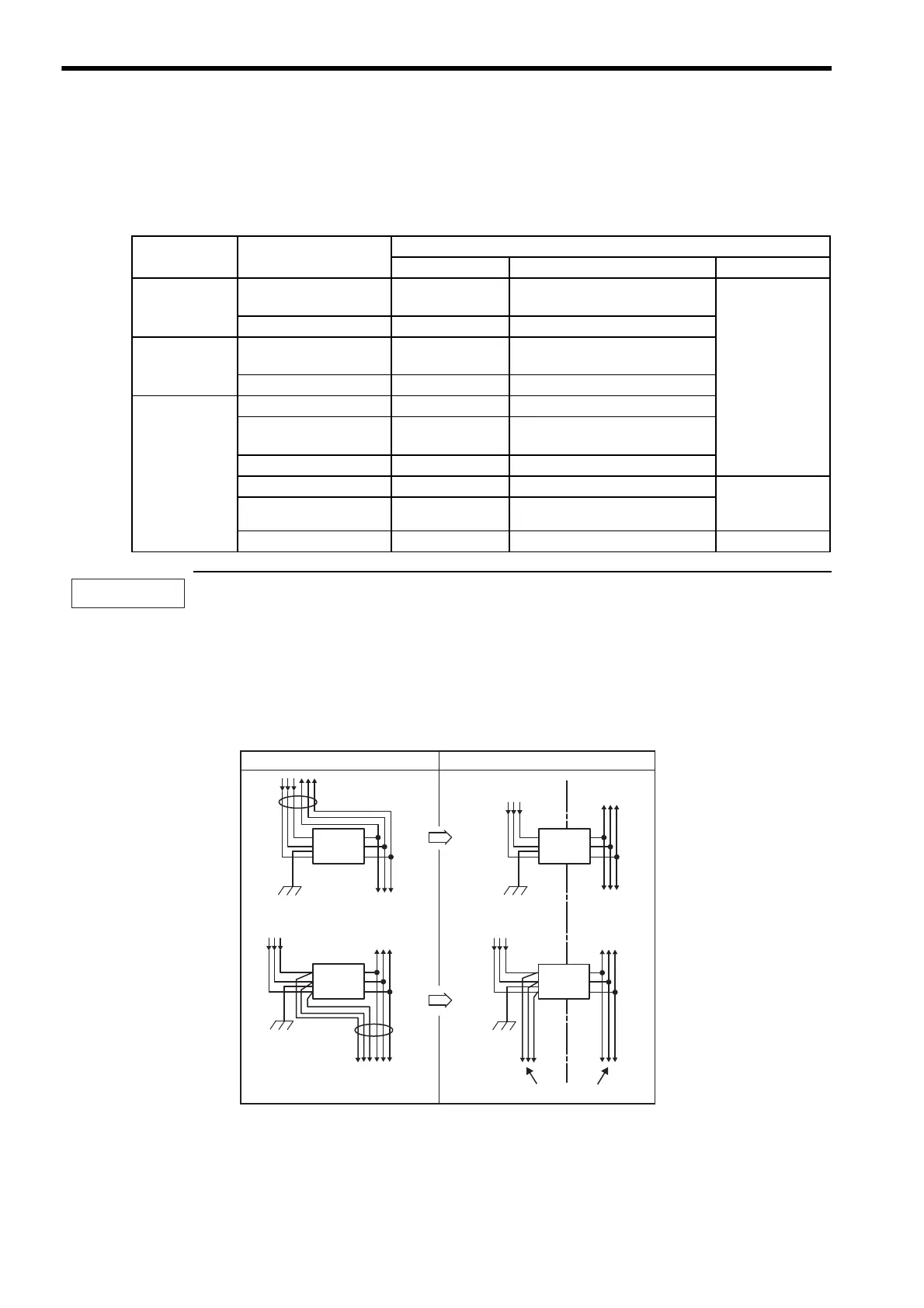

6.4.2 Wiring for Noise Control
6-20
(3) Using Noise Filters
Use an inhibit type noise filter to prevent noise from the power supply line. The following table lists recom-
mended noise filters for each SERVOPACK model.
Install a noise filter on the power supply line for peripheral equipment as necessary.
 Noise Filter for Brake Power Supplies
If the SERVOPACK has the holding brake less than 400 W, use the following model for the brake power sup-
ply input.
Noise filter model: FN2070-6/07 (Manufactured by SCHAFFNER)
 Precautions when using noise filter
Always observe the following installation and wiring instructions. Incorrect use of a noise filter halves its ben-
efits.
1. Do not put the input and output lines in the same duct or bundle them together.
Voltage
SERVOPACK Model
SGDM-
Recommended Noise Filters
Model Specifications Manufacturer
Single-phase
100 V
A3BD to -01BD
A3BDA to -01BDA
FN2070-6/07 VAC Single-phase 250 VAC, 6A
Schaffner
02BD, 02BDA FN2070-10/07 VAC Single-phase 250 VAC, 10A
Single-phase
200 V
A3AD to -02AD
A3ADA to -02ADA
FN2070-6/07 VAC Single-phase 250 VAC, 6A
04AD, 04ADA FN2070-10/07 VAC Single-phase 250 VAC, 10A
Three-phase
200 V
05AD, 05ADA FN258L-7/07 VAC Three-phase 480 VAC, 7A
08AD to -20AD
08ADA to -20ADA
FN258L-16/07 VAC Three-phase 480 VAC, 16A
30AD, 30ADA FN258L-30/07 VAC Three-phase 480 VAC, 30A
50ADA, 60ADA FMAC-0934-5010 VAC Three-phase 440 VAC, 50A Schurter
(formerly
Timonta AG)
75ADA FMAC-0953-6410 VAC Three-phase 440 VAC, 64A
1AADA, 1EADA FS5559-150-35 VAC Three-phase 480 VAC, 150A Schaffner
IMPORTANT
Noise
filter
Incorrect
Correct
Separate these circuits
Box
Box
Box
Box
Noise
filter
Noise
filter
Noise
filter
