6.4 Others

6-27

Wiring

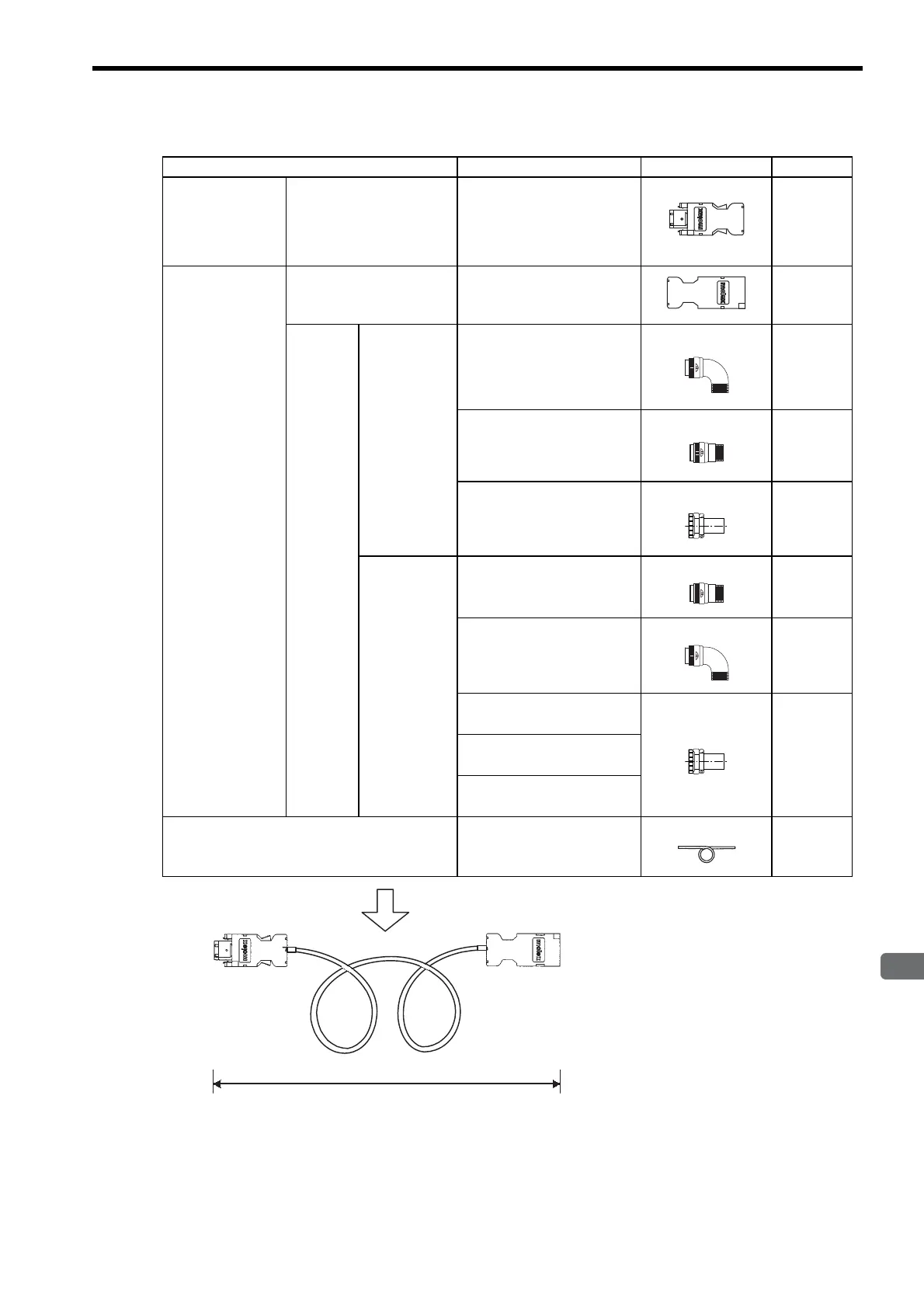

(2) Connectors and Connector kits for User-modified Encoder Cables

* 1. Contact DDK Ltd.

* 2. Contact Japan Aviation Electronics Industry, Ltd.

Name Type Specifications Reference

SERVOPACK end

connector kit

SGMAH

SGMPH

SGMGH

SGMSH

SGMDH

JZSP-CMP9-1

5.5.1

Servomotor end

connector kit

SGMAH

SGMPH

JZSP-CMP9-2

5.4.3

5.4.5

5.5.1

SGMGH

SGMSH

SGMDH

For standard

environment

MS3108B20-29S

∗

L-shaped plug

5.4.4

5.5.2

MS3106B20-29S

∗1

Straight plug

5.4.4

5.5.2

MS3057-12A

∗1

Cable clamp

5.4.4

5.5.2

For IP67

specification

JA06A-20-29S-J1-EB

∗2

Straight plug

5.5.2

JA08A-20-29S-J1-EB

∗2

L-shaped plug

5.5.2

JL04-2022CKE (09)

∗2

Cable diameter φ6.5 to φ9.5

Cable clamp

5.5.2

JL04-2022CKE (12)

∗2

Cable diameter φ9.5 to φ13

JL04-2022CKE (14)

∗2

Cable diameter φ12.9 to φ15.9

Cables

JZSP-CMP19-



50 m max.

5.5.1

Maximum length: 50 m
