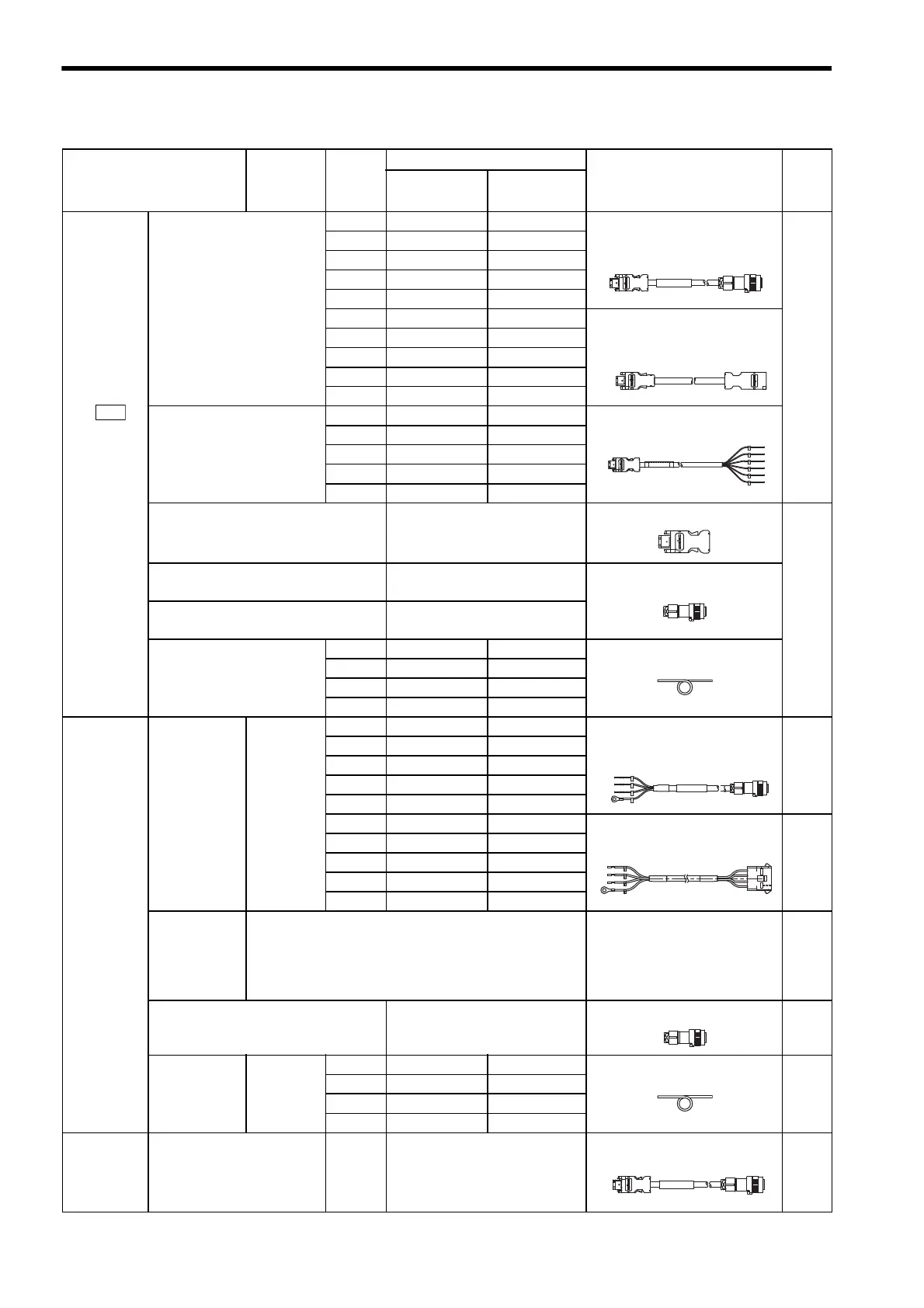

2 Selections
2.4.3 Cables for SGMCS Servomotors
2-24
Name
Servomo-
tor Model
Length
Type
Specifications
Refer-
ence
Standard type
Flexible
Type
*1
c
Encoder
Cables
* Applica-
ble for
every
type.
Cable with connectors on
both ends
(Same for incremental and
absolute encoder)
3 m
JZSP-CMP60-03 JZSP-CSP60-03
Applicable flange
*3
:1, 3
5.4.8
5 m
JZSP-CMP60-05 JZSP-CSP60-05
10 m
JZSP-CMP60-10 JZSP-CSP60-10
15 m
JZSP-CMP60-15 JZSP-CSP60-15
20 m
JZSP-CMP60-20 JZSP-CSP60-20
3 m JZSP-CMP00-03 JZSP-CMP10-03
Applicable flange
*3
: 4
5 m JZSP-CMP00-05 JZSP-CMP10-05
10 m JZSP-CMP00-10 JZSP-CMP10-10
15 m JZSP-CMP00-15 JZSP-CMP10-15
20 m JZSP-CMP00-20 JZSP-CMP10-20
Cable with loose wires at
encoder end
(Same for incremental and
absolute encoder)
3 m
JZSP-CMP03-03 JZSP-CMP13-03
5 m
JZSP-CMP03-05 JZSP-CMP13-05
10 m
JZSP-CMP03-10 JZSP-CMP13-10
15 m
JZSP-CMP03-15 JZSP-CMP13-15
20 m
JZSP-CMP03-20 JZSP-CMP13-20
SERVOPACK-end Connector kit
JZSP-CMP9-1
Solder type
5.5.3
Encoder-end Connector
(Straight plug)
JN1DS10SL1
*2
Crimping type
Encoder-end Connector
(Socket contact)
JN1-22-22S-PKG100
*2
Cables
5 m
JZSP-CMP09-05 JZSP-CSP39-05
20 m max.
10 m
JZSP-CMP09-10 JZSP-CSP39-10
15 m
JZSP-CMP09-15 JZSP-CSP39-15
20 m
JZSP-CMP09-20 JZSP-CSP39-20
d
Servomo-
tor main
circuit
cables and
connectors
Without
Brakes
(For small-
capacity se-
ries)
SGMCS-

B,C,D,E
3 m
JZSP-CMM60-03 JZSP-CSM60-03
Applicable flange
*3
: 1
5.1.6
5 m
JZSP-CMM60-05 JZSP-CSM60-05
10 m
JZSP-CMM60-10 JZSP-CSM60-10
15 m
JZSP-CMM60-15 JZSP-CSM60-15
20 m
JZSP-CMM60-20 JZSP-CSM60-20
3 m JZSP-CMM00-03 JZSP-CMM01-03
Applicable flange
*3
: 4
5.1.1
5 m JZSP-CMM00-05 JZSP-CMM01-05
10 m JZSP-CMM00-10 JZSP-CMM01-10
15 m JZSP-CMM00-15 JZSP-CMM01-15
20 m JZSP-CMM00-20 JZSP-CMM01-20
Without
Brakes
(For middle-
capacity se-
ries)
SGMCS-

M,N
Cables with connectors and
cables/connector are not avail-
able.
Applicable flange
*3
:1, 3
5.2.12
Servomotor-end Connector
JN1DS04FK1
*2
Solder type
5.1.6
5.2.12
Cables
SGMCS-
B,C,D,E
5 m
JZSP-CSM90-05 JZSP-CSM80-05
20 m max.
5.1.6
10 m
JZSP-CSM90-10 JZSP-CSM80-10
15 m
JZSP-CSM90-15 JZSP-CSM80-15
20 m
JZSP-CSM90-20 JZSP-CSM80-20
e
Relay
Encoder
Cables
Encoder-end
(Same for incremental and
absolute encoder)
0.3 m
JZSP-CSP13
CN2
SERVOPACK end Encoder end
SERVOPACK
end
Encoder
end
SERVOPACK end
Encoder end
SERVOPACK end Encoder end
SERVOPACK end Encoder end
SERVOPACK end Encoder end
