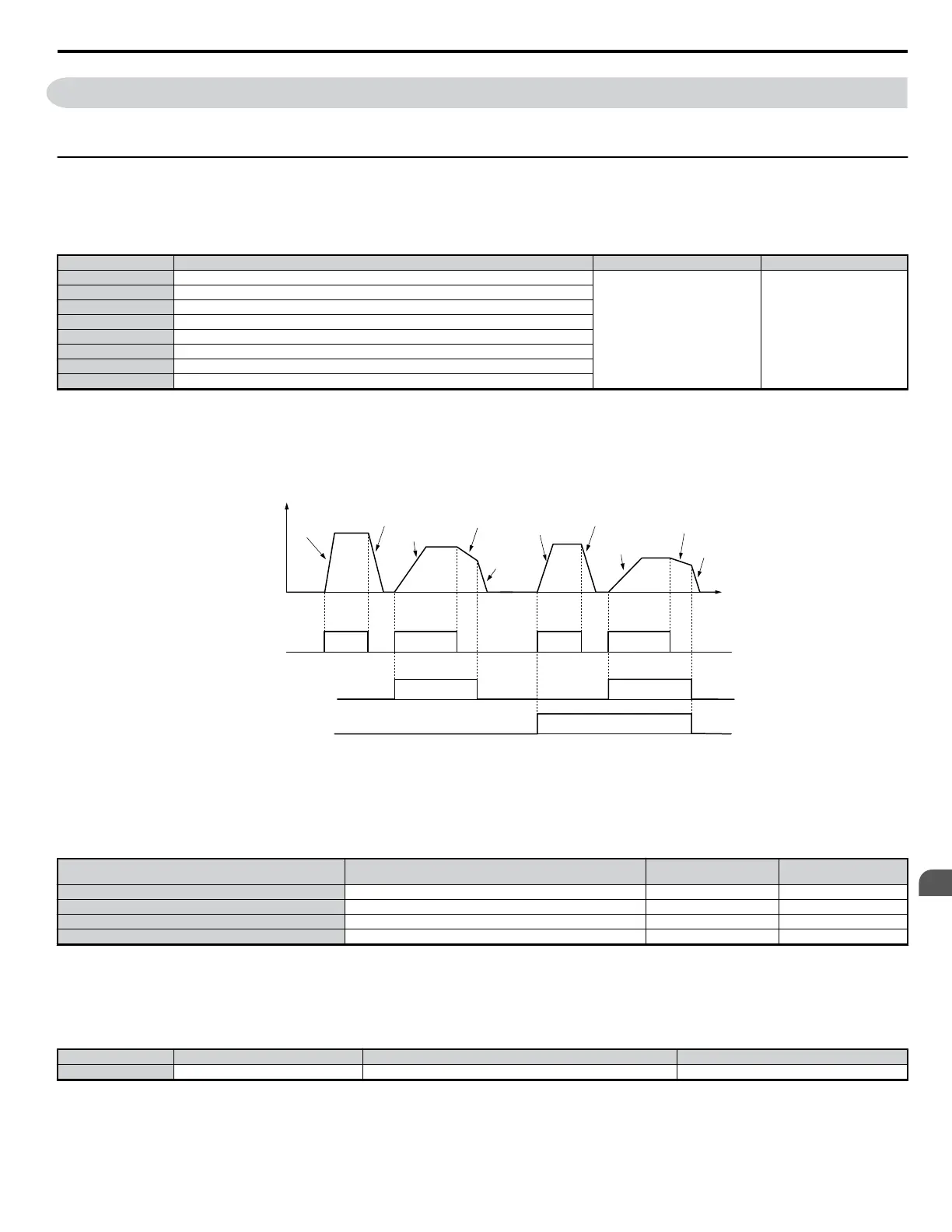

5.3 C: Tuning
C parameters control various aspects of how the drive accelerates and decelerates the motor. This includes S-curve, slip compensation, torque compensation
and carrier frequency.
u
C1: Acceleration and Deceleration Times
n
C1-01 to C1-08: Accel/Decel Times 1 to 4
C1-01 (Acceleration Time 1) sets the time to accelerate from 0 to the maximum output frequency (E1-04). C1-02 (Deceleration Time 1) sets the time to
decelerate from maximum output frequency to 0. C1-01 and C1-02 are the default active accel/decel settings.
No. Parameter Name Setting Range Default
C1-01 Acceleration Time 1
0.0 to 6000.0* 10.0 s
C1-02 Deceleration Time 1
C1-03 Acceleration Time 2
C1-04 Deceleration Time 2
C1-05 Acceleration Time 3 (Motor 2 Accel Time 1)
C1-06 Deceleration Time 3 (Motor 2 Decel Time 1)
C1-07 Acceleration Time 4 (Motor 2 Accel Time 2)
C1-08 Deceleration Time 4 (Motor 2 Accel Time 2)
*The setting range for the acceleration and deceleration times is determined by C1-10 (Accel/Decel Time Setting Units). For example, if the time is set
in units of 0.01 s (C1-10 = 0), the setting range becomes 0.00 to 600.00 s.
Detailed Description
C1-01 and C1-02 are the factory default active accel/decel “pair”. Other accel/decel pairs (C1-03 to C1-08) exist that can be activated by a multi-function
digital input (H1-oo = 7 and 1A). Alternatively, the active accel/decel pair can be switched from accel/decel pair 1 (C1-01 and C1-02) to accel/decel
pair 4 (C1-07 and C1-08) by a switch over frequency as programmed in parameter C1-11.
Output
Frequency
Accel Time 1
(C1-01)
Decel Time 1*
(C1-02)
Accel Time 2
(C1-03)
Decel Time 2*
(C1-04)
Decel Time 1*
(C1-02)
Time
FWD (REV)
Run Command
ON
OFF
ON
ON
Accel/Decel Time Selection 1
(Terminals S3 to S8, H1-0x = “7”)
* When “deceleration to stop” is selected (B1-03 = “0”)
Accel Time 3
(C1-05)
Decel Time 3*
(C1-06)
Accel Time 4
(C1-07)
Decel Time 4*
(C1-08)
Decel Time 1*
(C1-02)
ON
OFF
ON
OFF
ON
Accel/Decel Time Selection 2
(Terminals S3 to S8, H1-0x = “1A”)
ON
Figure 5.20 Timing Diagram of Accel/Decel Time Change
Ramp to Stop (b1-03 = 0)
Accel/Decel Time Selection 1
Multi-Function Input Setting = “7”
Accel/Decel Time Selection 2
Multi-Function Input Setting = “1A”
Acceleration Time Deceleration Time
Open or not set Open or not set C1-01 C1-02
Closed Open or not set C1-03 C1-04
Open or not set Closed C1-05 C1-06
Closed Closed C1-07 C1-08
n
C1-09: Fast Stop Time
A special deceleration parameter is available for use with emergency or fault operations. Parameter C1-09 will set a special deceleration that can be
operated by closing a digital input configured as H1-oo = 15 or H1-oo = 17. A digital input configured as H1-oo = 15 will look for a switch closure
before initiating the Fast Stop operation. A digital input configured as H1-oo = 17 will look for the switch opening before initiating the Fast Stop
operation.
No. Parameter Name Setting Range Default
C1-09 Fast Stop Time 0.0 to 6000.0* 10.0 s
*Unlike a standard deceleration time, once the Fast Stop operation is initiated even momentarily, the drive cannot be re-operated until the deceleration is
complete, the Fast Stop input is cleared, and the run command is cycled.
5.3 C: Tuning
YASKAWA ELECTRIC SIEP C710606 18A YASKAWA AC Drive – V1000 Technical Manual (Preliminary)
131
5
Parameter Details
