No. Display Name Function
12 ALM LED Light
Refer to LED Screen Displays on page 59.
13
RE V
REV LED Light
14 DRV LED Light
15 FOUT LED Light
u

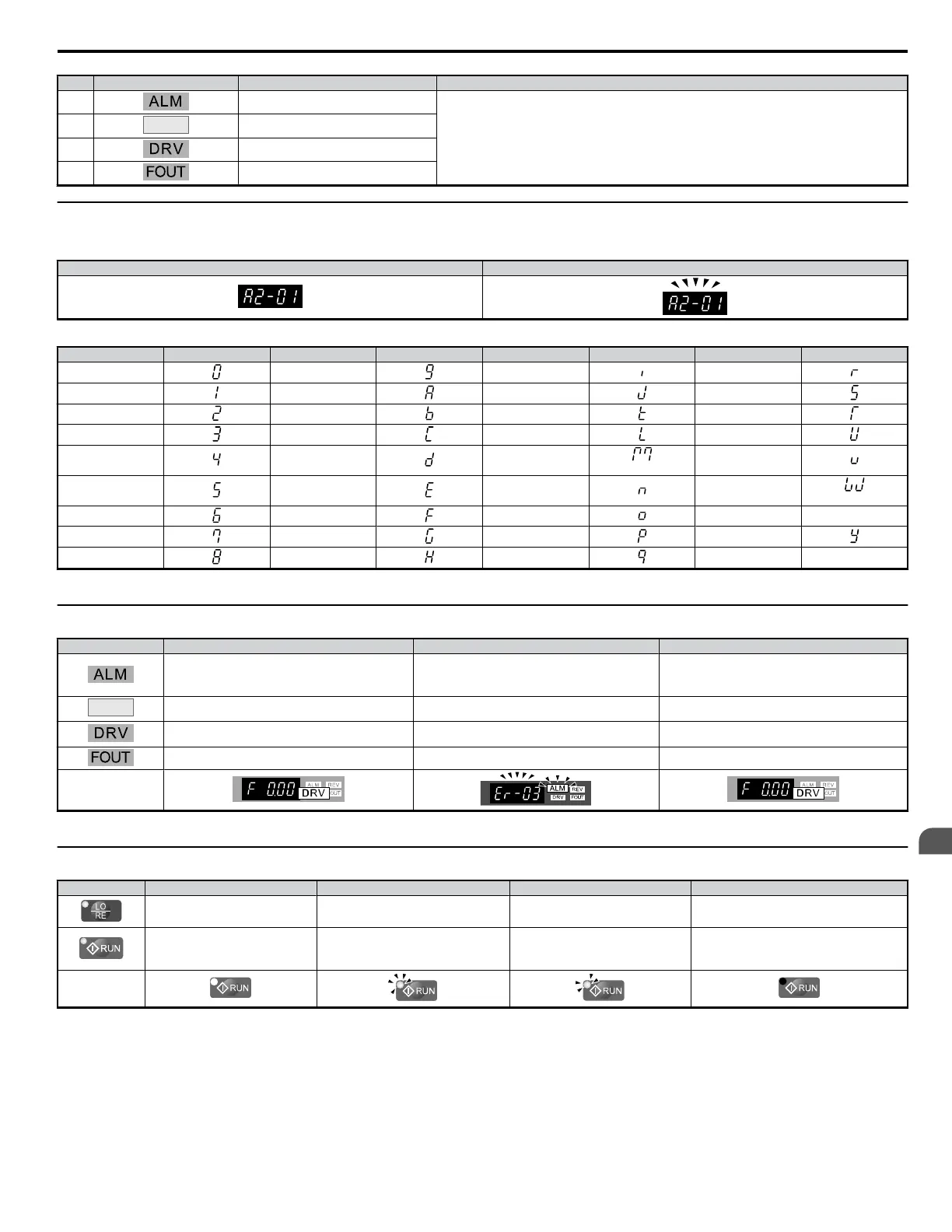

Digital Text Display
Text appears on the LED Operator as shown below. This section explains the meaning of text as it appears on the display screen.
Lit Flashing
Table 4.2 Digital Text Display
Text LED Text LED Text LED Text LED
0 9 I R
1 A J S
2 B K T
3 C L U
4 D M
<1>
V
5 E N W
<1>
6 F O X none
7 G P Y
8 H Q Z none
<1> Displayed in two digits.
u
LED Screen Displays
Display Lit Flashing Off
When the drive detects a alarm or error
• When an alarm occurs
• OPE detected
• When a fault or error occurs during Auto-Tuning
Normal state (no fault or alarm)
RE V
Motor is rotating in reverse — Motor is rotating forward
Drive Mode
Auto-Tuning
When DriveWorksEZ is used <1> Programming Mode
Displays output frequency (Hz) — —
As illustrated in this
manual
<1> Refer to the DriveWorksEZ instruction manual for further information.
u
LO/RE LED and RUN LED Indications
LED Lit Flashing Flashing Quickly <1> Off
When run command is selected from
LED operator (LOCAL)
— —
Run command is selected from device other than
LED operator (REMOTE)
During run
• During deceleration to stop
• When a run command is input and
frequency reference is 0
• During deceleration at a fast-stop.
• During deceleration
• During stop by interlock operation.
During stop
As shown
<1> For the difference between “flashing” and “flashing in short intervals” of the RUN LED, refer to Figure 4.2 , RUN LED and Drive Operation.
4.2 Using the Digital LED Operator
YASKAWA ELECTRIC SIEP C710606 18A YASKAWA AC Drive – V1000 Technical Manual (Preliminary)
59
4
Start-Up Programming
& Operation
