1.2 Model Number and Nameplate Check
Please perform the following tasks after receiving the drive:
• Inspect the drive for damage.
If the drive appears damaged upon receipt, contact the shipper immediately.
• Verify receipt of the correct model by checking the information on the nameplate.
• If you have received the wrong model or the drive does not function properly, contact your supplier.
u
Nameplate
CIMR-VU2A0001FAA REV:A
AC3PH 200-240V 50/60Hz
2.7/1.4A
AC3PH 0-240V 0-400Hz 1.2A/0.8A
1011
Assembled in USA
INSTALLATION CATEGORY
IIII
RoHSRoHS
PASS
AC drive model
Input specifications
Output specifications
Lot number
Serial number
Software version
Normal Duty Amps/Heavy Duty Amps
Enclosure Type

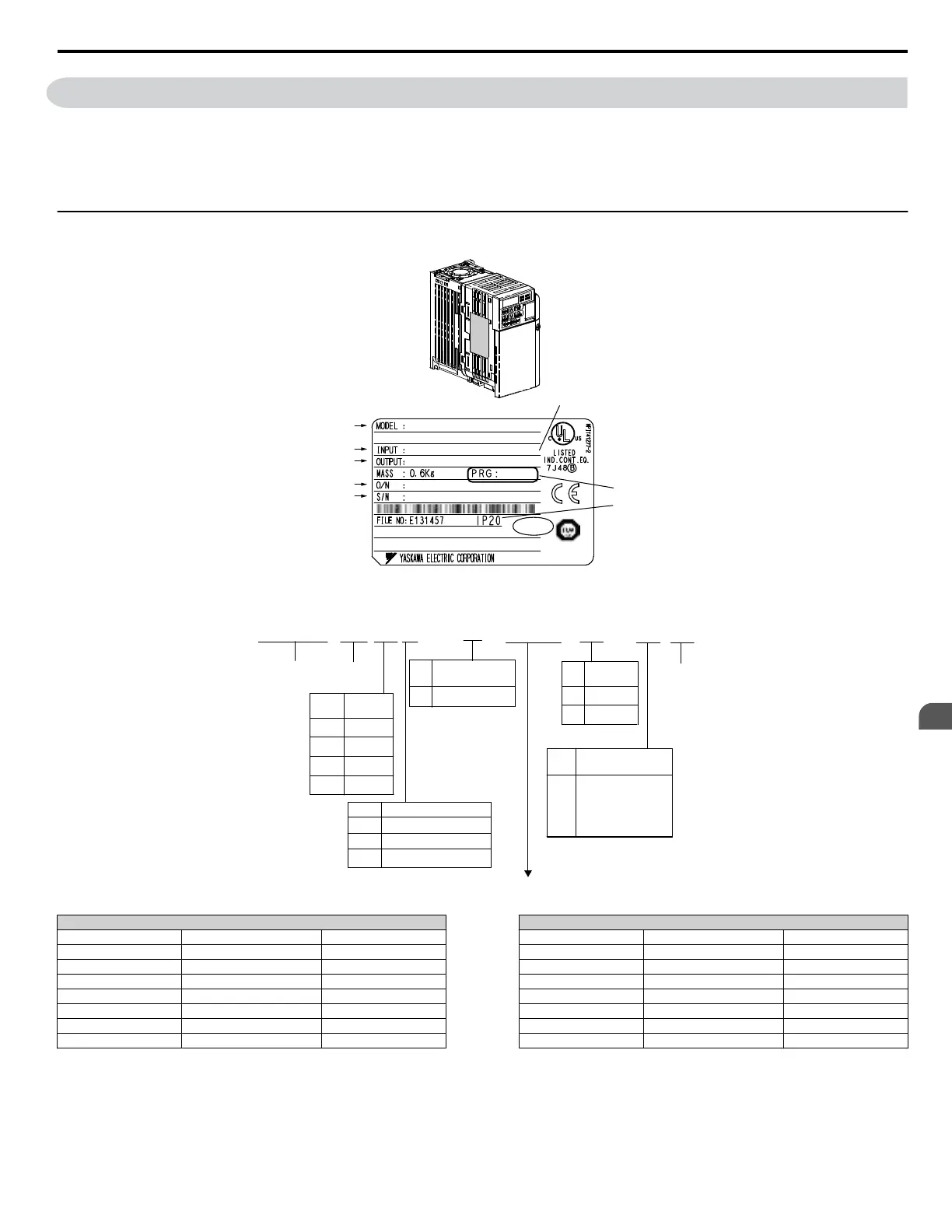

Figure 1.1 Nameplate Information
C I M R
-
Drive
V1000
Series
No.
Region
Code
U USA
A Japan
T Asia
C Europe
No. Voltage Class
B
1-phase, 200-240 Vac
No.
Enclosure
Type
No.
Environmental
Specification *
A
M
N
S
Standard
Humidity- and
dust-resistant
Oil-resistant
Vibration-resistant
Design
Revision
Order
No.
Customized
Specifications
A Standard model
IP20
F
IP20/N1
B
3-phase, 380-480 Vac
3-phase, 200-240 Vac
2
4
V
U
2
A
0 0 0 1
B
A
A
n
Single-Phase 200 V
Normal Duty Heavy Duty
No. Max. Motor Capacity kW Rated Output Current A No. Max. Motor Capacity kW Rated Output Current A
0001 0.2 1.2 0001 0.1 0.8
0002 0.4 1.9 0002 0.2 1.6
0003 0.75 3.3 0003 0.4 3
0006 1.1 6 0006 0.75 5
0010 2.2 9.6 0010 1.5 8
0012 3.0 12 0012 2.2 11
— — — 0018 3.7 17.5
Note:
CIMR-VoBA0018 is available with a Heavy Duty rating only.
