YASKAWA V1000 Series Technical Manual

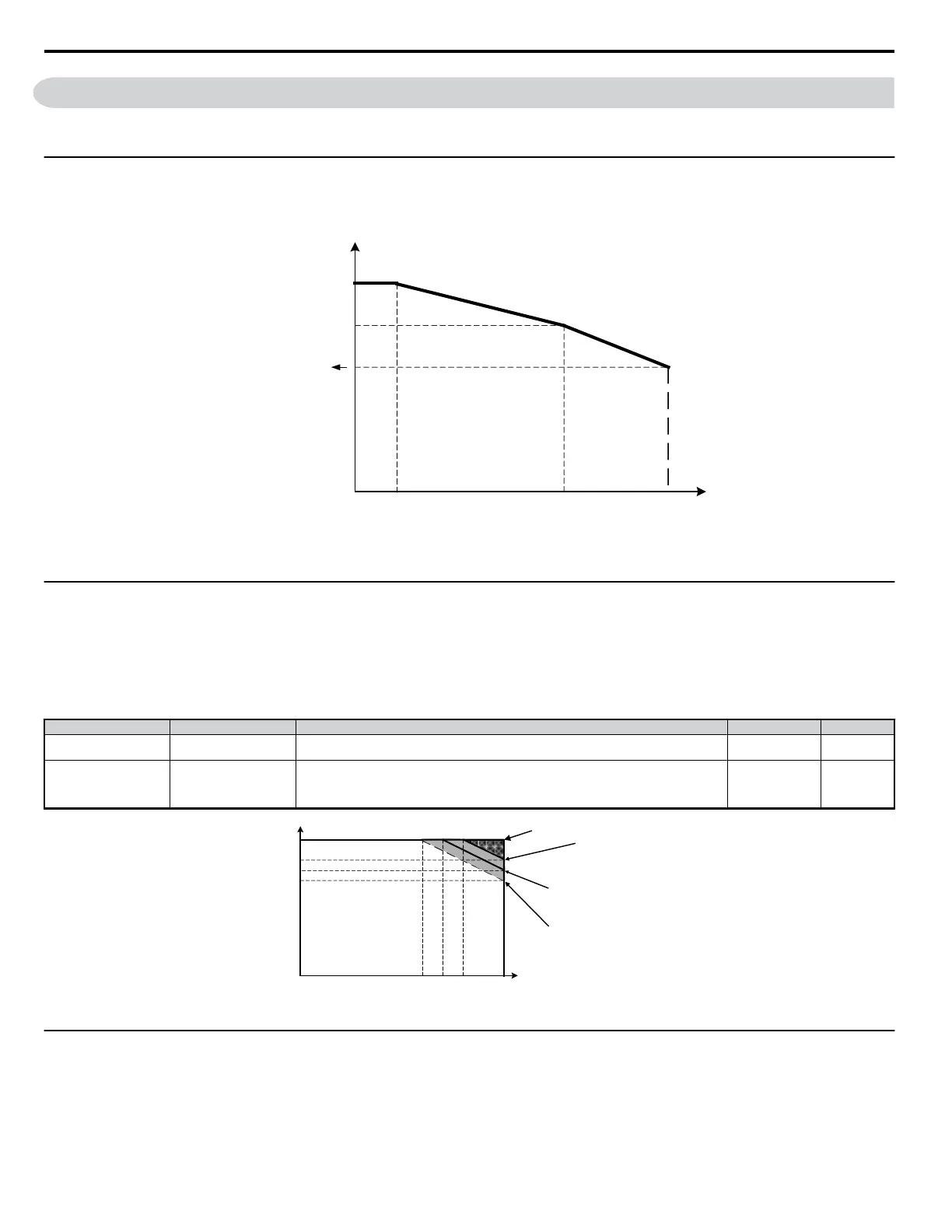

A.6 Drive Derating Data
The drive can be operated at above rated temperature, altitude and default carrier frequency by derating the drive capacity. For example, a 10 amp continuous
rated drive may be operated at higher temperatures if it is only used to supply 8 amps continuous.
u
Carrier Frequency Derating
As the carrier frequency of the drive is increased above the factory setting the drive capacity should be derated according to
Figure A.1 .
ND
200 V Class:
80% of HD
10 (8)
15
0
Drive
Rating
Carrier (C6-02)
400 V Class:
60% of HD
HD
2
Carrier Frequency Derating
Figure A.1 Carrier Frequency Derating
u
Temperature Derating
As the ambient temperature for the drive is increased above the drive specification the drive should be derated. Additionally parameter L8-35 Side-by-
Side Selection on page 290 should be set according to enclosure type and mounting method as illustrated in Figure A.2 on page 290.
n
Output Current Derating Due to Ambient Temperature
If the ambient temperature is above the drive specification or if drives are side-by-side mounted in a cabinet, the parameters L8-12 and L8-35 must be set
according to the installation conditions. The output current is derated as shown in
Figure A.2 .
No. Name Description Range Def.
L8-12
Ambient Temperature
Setting
Adjust the drive overload (OL2) protection level when the drive is installed in an environment that
exceeds its ambient temperature rating.
40 to 60 40 °C
L8-35 Side-by-Side Selection
0: Disabled (standard installation)
1: Side-by-Side installation
2: IP20/NEMA Type 1
3: Finless/Fin Outside installation
0 to 2 0
40
50
0
Drive
Rating
Ambient temp C
Parameter L8-12
30
o
o
o
o
Parameter L8-35 = 0 (IP20)
Parameter L8-35 = 2
(IP20/NEMA Type 1)
Parameter L8-35 = 1
(Side-by-side installation)
Parameter L8-35 = 3
(Finless/ Fin outside installation)
35
o
50%
70%
80%
85%
100%
Figure A.2 Ambient Temperature and Installation Method Derating
u
Altitude Derating
Yaskawa recommends referencing two standards when considering altitude derating. These standards are:
• ANSI/IEEE C 37.40: Service Conditions and Definitions for High Voltage Fuses, Distributor Enclosed Single Pole Air Switches and Accessories
• IEC 282-1.2: High Voltage Fuse
A.6 Drive Derating Data
290
YASKAWA ELECTRIC SIEP C710606 18A YASKAWA AC Drive – V1000 Technical Manual (Preliminary)

YASKAWA V1000 Series Specifications

General

Model	V1000 Series
Series	V1000
Output Frequency	0.1 to 400 Hz
Overload Capacity	150% for 60 seconds
Type	AC Drive
Control Method	V/f Control
Input Voltage	200-240V, 380-480V
Output Voltage	0 to Input Voltage
Power Range	0.1 to 18.5 kW
Horsepower	0.2 to 25 HP
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overheating, Short Circuit, Ground Fault
Communication Interfaces	Modbus RTU
Enclosure	IP20
Ambient Temperature	-10 to +50°C
Storage Temperature	-20 to +60°C
Humidity	5 to 95% RH (non-condensing)
Cooling Method	Fan Cooled
