Detailed Description
• To display the frequency reference as a percent rather than hertz, set o1-03 to 1.
• To display the reference in r/min, set o1-03 to 2. The drive will calculate the revolutions per minute from the maximum output frequency and the number
of motor poles. Motor pole data should be set to parameters E2-04, E4-04, and E5-04.
• To display the revolutions of the machine (r/min) or the line speed (m/min), set o1-03 to 3, and then set parameters o1-10 and o1-11.
n

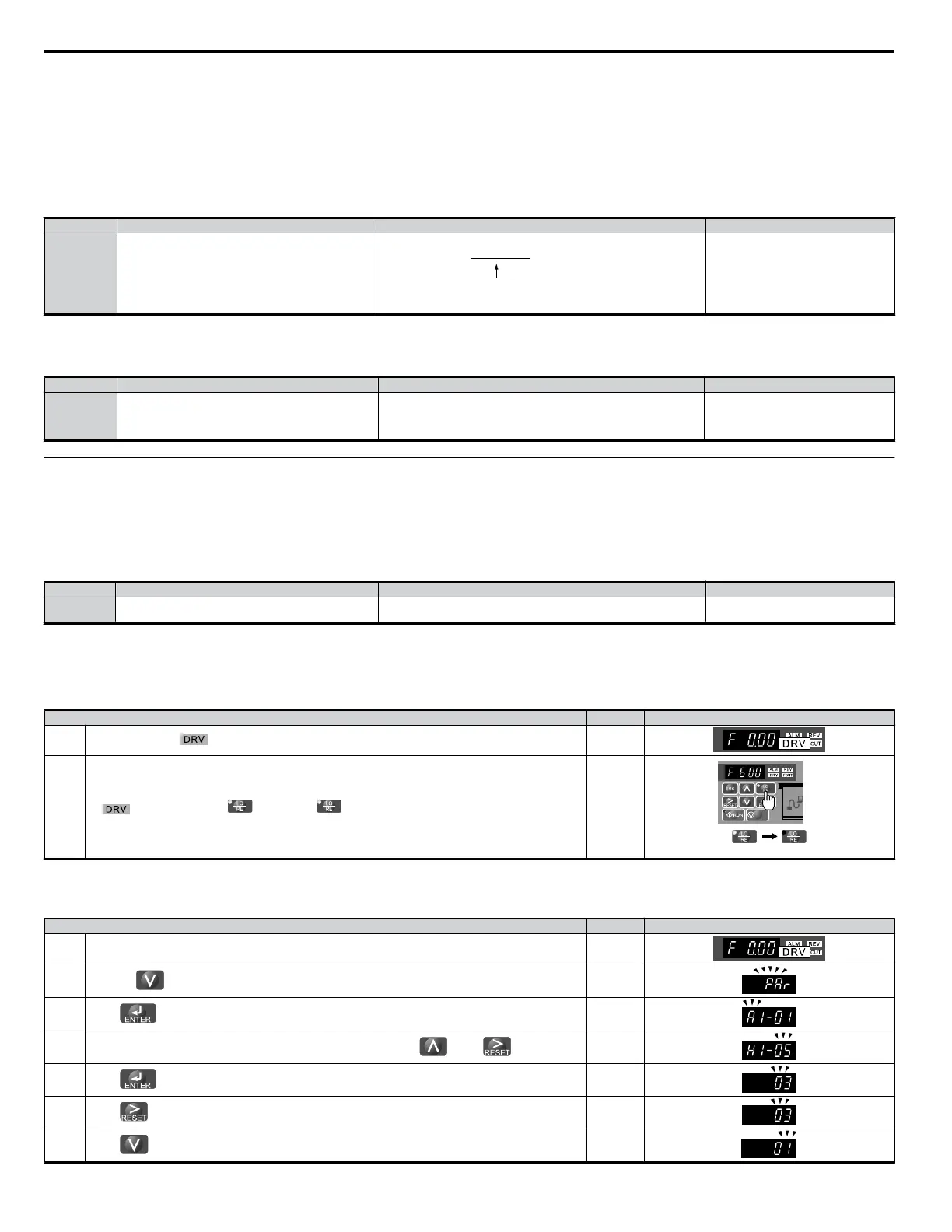

o1-10: Frequency Reference Setting and User-Set Display
Determines how values are set and displayed when operating at the max output frequency.
No. Parameter Name Setting Range Default
o1-10 Frequency Reference Setting and User-Set Display
1 to 60000: User-set display
□□□□□
o1-10: The decimal point
was removed.
5 figure digits are set
Determined by o1-03
n
o1-11: Frequency Reference Setting / Decimal Display
Sets the number of digits for setting and displaying the frequency reference.
No. Parameter Name Setting Range Default
o1-11 Frequency Reference Setting / Decimal Display
0: No decimal point.
1: Set to one decimal point.
2: Set to the second decimal point.
3: Set to the third decimal point.
Determined by o1-03
u
o2: Operator Key Selections
These parameters determine the functions assigned to the operator keys.
n
o2-01: LOCAL/REMOTE Key Function Selection
Parameter o2-01 determines whether the LOCAL/REMOTE switch on the digital operator will be enabled and will switch between keypad operation and
the sources specified by the b1-01 and b1-02 parameters when the drive is stopped.
No. Parameter Name Setting Range Default
o2-01 LOCAL/REMOTE Key Function Selection
0: Disabled
1: Enabled
1
Note: When LOCAL has been selected, the LO/RE indicator light is on. The user cannot switch between LOCAL/REMOTE while the drive is running the motor.
Detailed Description
There are three different ways to switch between LOCAL and REMOTE.
• Switching between LOCAL and REMOTE using the LO/RE key:
Step Display/Result
1.
Power up the drive. should be lit.
⇒
2.
If is not lit, press the key. Press again to put the drive back into REMOTE mode.
⇒
STOP
฀฀ ฀฀
• Switching between LOCAL and REMOTE with an input terminal (S1 through S7):
Note: For more details on multi-function input settings, Refer to H1: Multi-Function Contact Inputs on page 160. Taking the steps described here will disable the LO/RE key on
the operator keypad.
Step Display/Result
1. Power up the drive.
⇒
2.
Press the key until the parameter settings screen appears.
⇒
3.
Press to enter the parameter settings menu.
⇒
4.
Scroll to H1-05 (or any parameter between H1-05 and H1-07) by pressing and .
⇒
5.
Press to display the value set to H1-05
⇒
6.
Press to select the flashing digit.
⇒
7.
Press to set “01” (LOCAL/REMOTE).
⇒
5.10 o: Digital Operator Related Settings
206
YASKAWA ELECTRIC SIEP C710606 18A YASKAWA AC Drive – V1000 Technical Manual (Preliminary)

YASKAWA V1000 Series Specifications

General

Model	V1000 Series
Series	V1000
Output Frequency	0.1 to 400 Hz
Overload Capacity	150% for 60 seconds
Type	AC Drive
Control Method	V/f Control
Input Voltage	200-240V, 380-480V
Output Voltage	0 to Input Voltage
Power Range	0.1 to 18.5 kW
Horsepower	0.2 to 25 HP
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overheating, Short Circuit, Ground Fault
Communication Interfaces	Modbus RTU
Enclosure	IP20
Ambient Temperature	-10 to +50°C
Storage Temperature	-20 to +60°C
Humidity	5 to 95% RH (non-condensing)
Cooling Method	Fan Cooled
