YASKAWA V1000 Series Technical Manual

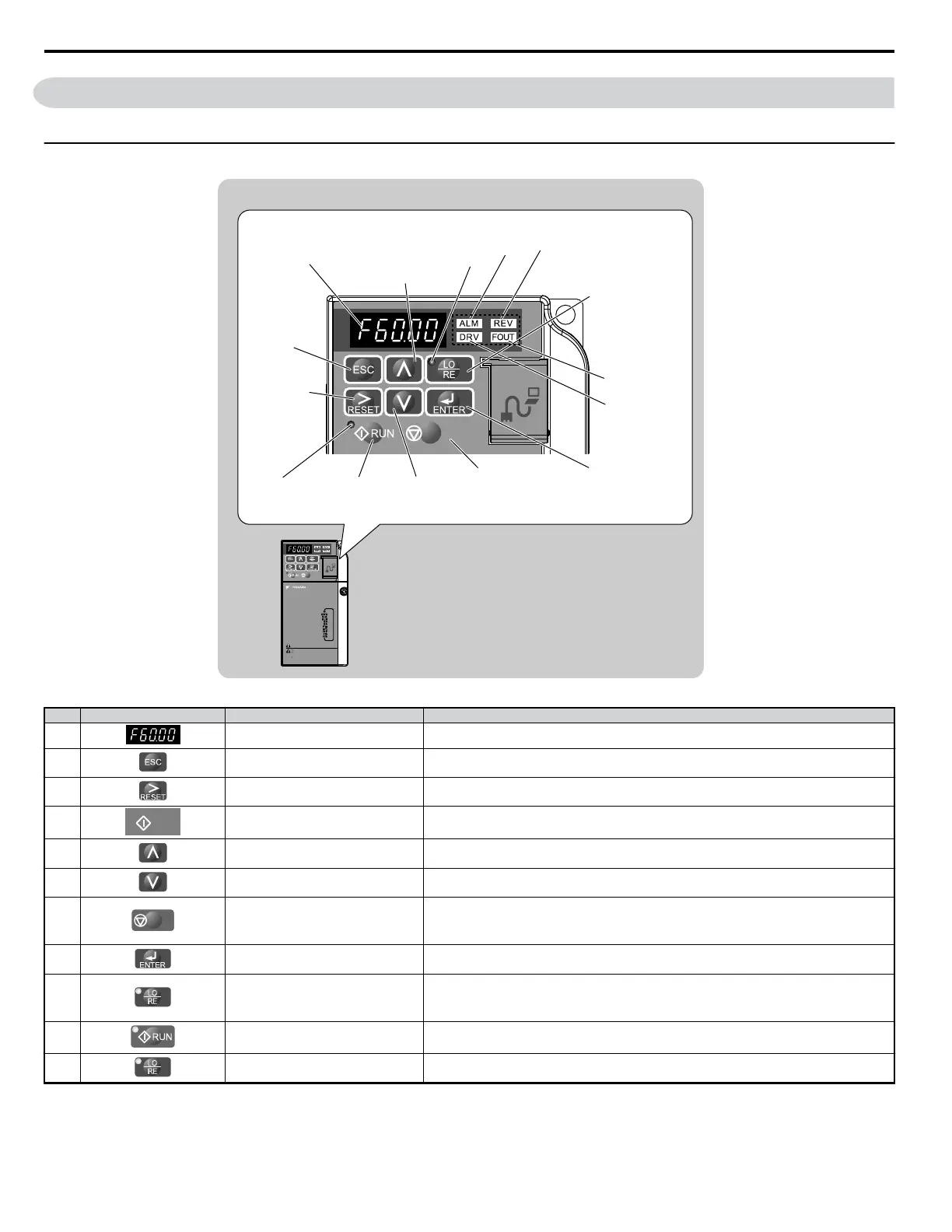

4.2 Using the Digital LED Operator
Use the LED operator to enter run and stop commands, display data, edit parameters, as well as display fault and alarm information.
u
Keys, Displays, and LEDs
STOP
(
Hz
)
(
Hz
)
(
A
)
(
V
)
:
:
:
:
:
:
:
:
:
:
Fref
FWD/REV Sel
Fout
lout
Mon1
Monitor
Verify
SetUpGuide
Program
Auto-Tuning
Read manual before installing.
Risk of electric shock.
Wait 1 minute for capacitor discharge after
disconnecting power suppl y.
To conform to requirements, make sure to
ground the supply neutral for 400V class.
WARNING
STOP
9
5
1
2
3
4 6
7
8
10
V1000
11
12
13
15
14
Table 4.1 Keys and Displays on the LED Operator
No. Display Name Function
1 Data Display Area Displays the frequency reference, parameter number, etc.
2 ESC Key Returns to the previous menu.
3 RESET Key
Moves the cursor to the right.
Resets the drive to clear a fault situation.
4
RUN
RUN Key Starts the drive.
5 Up Arrow Key Scrolls up to select parameter numbers, setting values, etc.
6 Down Arrow Key Scrolls down to select parameter numbers, setting values, etc.
7
STOP
STOP Key
Stops the drive.
Note: Stop priority circuit. A fast-stop is available by pressing the STOP key when the drive detects a danger
even if the drive is running by a signal from the multi-function contact input terminal (REMOTE is set). To
avoid stoppage by using the STOP key, set o2-02 (STOP Key Function Selection) to 0 (Disabled).
8 ENTER Key
Selects all modes, parameters, settings, etc.
Selects a menu item to move from one display screen to the next.
9 LO/RE Selection Key
Switches drive control between the operator (LOCAL) and the control circuit terminals (REMOTE).
Note: LOCAL/REMOTE key effective during stop in drive mode. If the digital operator could change from
REMOTE to LOCAL by incorrect operation, set o2-01 (LOCAL/REMOTE Key Function Selection) to
“0” (disabled) to disable LOCAL/REMOTE key.
10 RUN Light Lit while the drive is operating the motor.
11 LO/RE Light Lit while the operator (LOCAL) is selected to run the drive.
4.2 Using the Digital LED Operator
58
YASKAWA ELECTRIC SIEP C710606 18A YASKAWA AC Drive – V1000 Technical Manual (Preliminary)

YASKAWA V1000 Series Specifications

General

Model	V1000 Series
Series	V1000
Output Frequency	0.1 to 400 Hz
Overload Capacity	150% for 60 seconds
Type	AC Drive
Control Method	V/f Control
Input Voltage	200-240V, 380-480V
Output Voltage	0 to Input Voltage
Power Range	0.1 to 18.5 kW
Horsepower	0.2 to 25 HP
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overheating, Short Circuit, Ground Fault
Communication Interfaces	Modbus RTU
Enclosure	IP20
Ambient Temperature	-10 to +50°C
Storage Temperature	-20 to +60°C
Humidity	5 to 95% RH (non-condensing)
Cooling Method	Fan Cooled
