NOTICE
Do not sterilize the entire package after the product is packed.
u
Drive Label Warnings

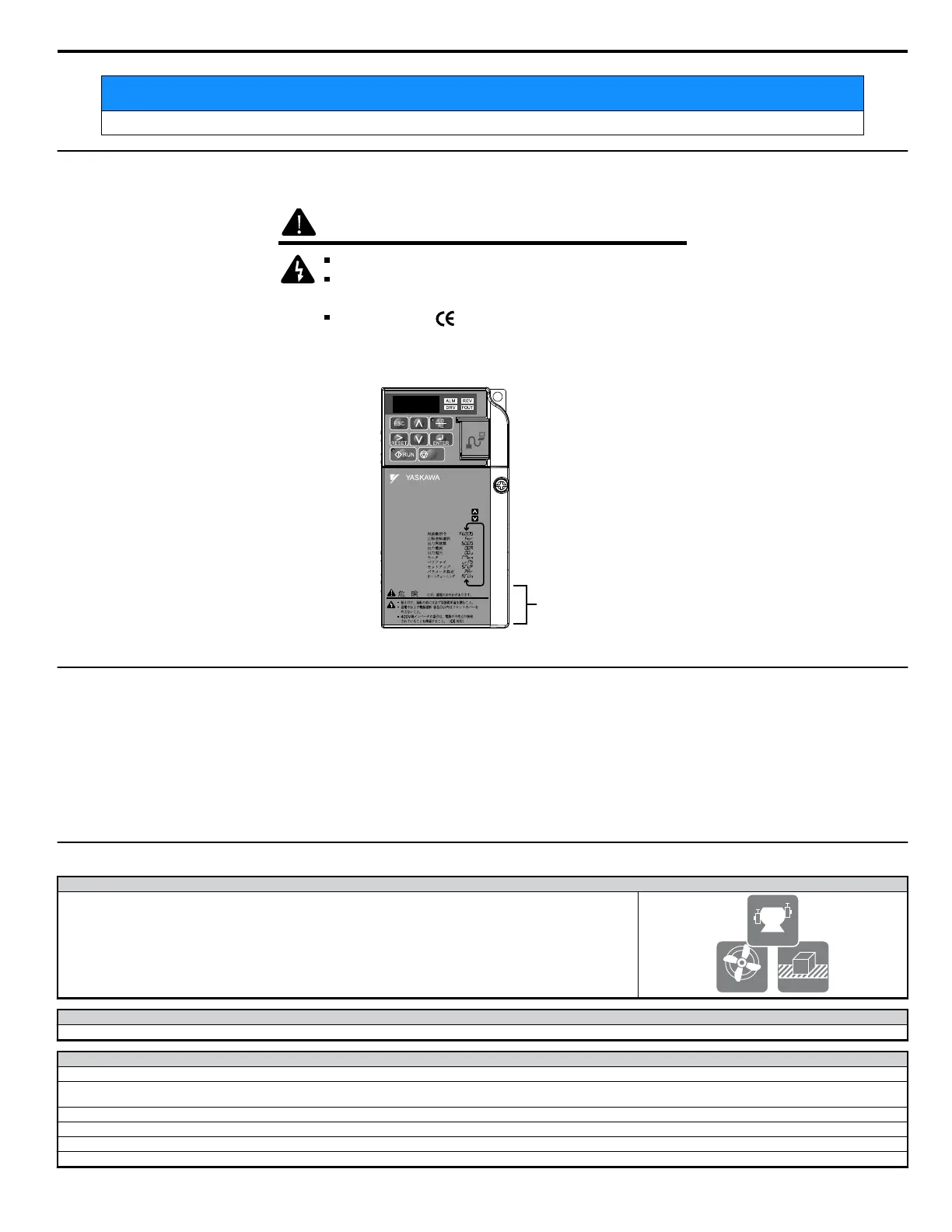

Always heed the warning information listed in Figure i.1 in the position shown in Figure i.2 .
Risk of electric shock.
WARNING
Read manual before installing.
Wait 5 minutes for capacitor discharge after
disconnecting power supply.
To conform to requirements, make sure
to ground the supply neutral for 400V class.
Figure i.1 Warning Information
STOP
(
Hz
)
(
Hz
)
(
A
)
(
V
)
:
:
:
:
:
:
:
:
:
:
V1000
Warning
Display
Figure i.2 Warning Information Position
u
Warranty Information
n
Restrictions
The V1000 was not designed or manufactured for use in devices or systems that may directly affect or threaten human lives or health.
Customers who intend to use the product described in this manual for devices or systems relating to transportation, health care, space aviation, atomic
power, electric power, or in underwater applications must first contact their Yaskawa representatives or the nearest Yaskawa sales office.
This product has been manufactured under strict quality-control guidelines. However, if this product is to be installed in any location where failure of this
product could involve or result in a life-and-death situation or loss of human life or in a facility where failure may cause a serious accident or physical
injury, safety devices must be installed to minimize the likelihood of any accident.
u
Quick Reference
Easily Set Application-Specific Parameters
Preset parameter defaults are available for many applications.
Refer to Application Presets on page 70
Run a Motor of One-Frame Larger Capacity
When using this drive for variable torque loads such as fans and pumps, a motor one frame size larger can be used. Refer to Drive Duty Mode Selection: C6-01 on page 82
Know the Details of Safety Measures
The functions listed below affect the safe operation of the drive. Ensure that the settings fit the application requirements prior to operation.
Operation of digital outputs during Auto-tuning. Rotational Auto-tuning allows for normal digital output operation, while non-rotational Auto-tuning does not allow for normal digital output
operation.
Safe operations. Run by power on. Parameter setting b1-17.
LOCAL/REMOTE key effective during stop in drive mode. Parameter o2-01.
LED operator stop key priority selection. Parameter o2-02.
Enter press required after changing the keypad frequency reference. Parameter o2-05.
i.2 General Safety
