YASKAWA V1000 Series Technical Manual

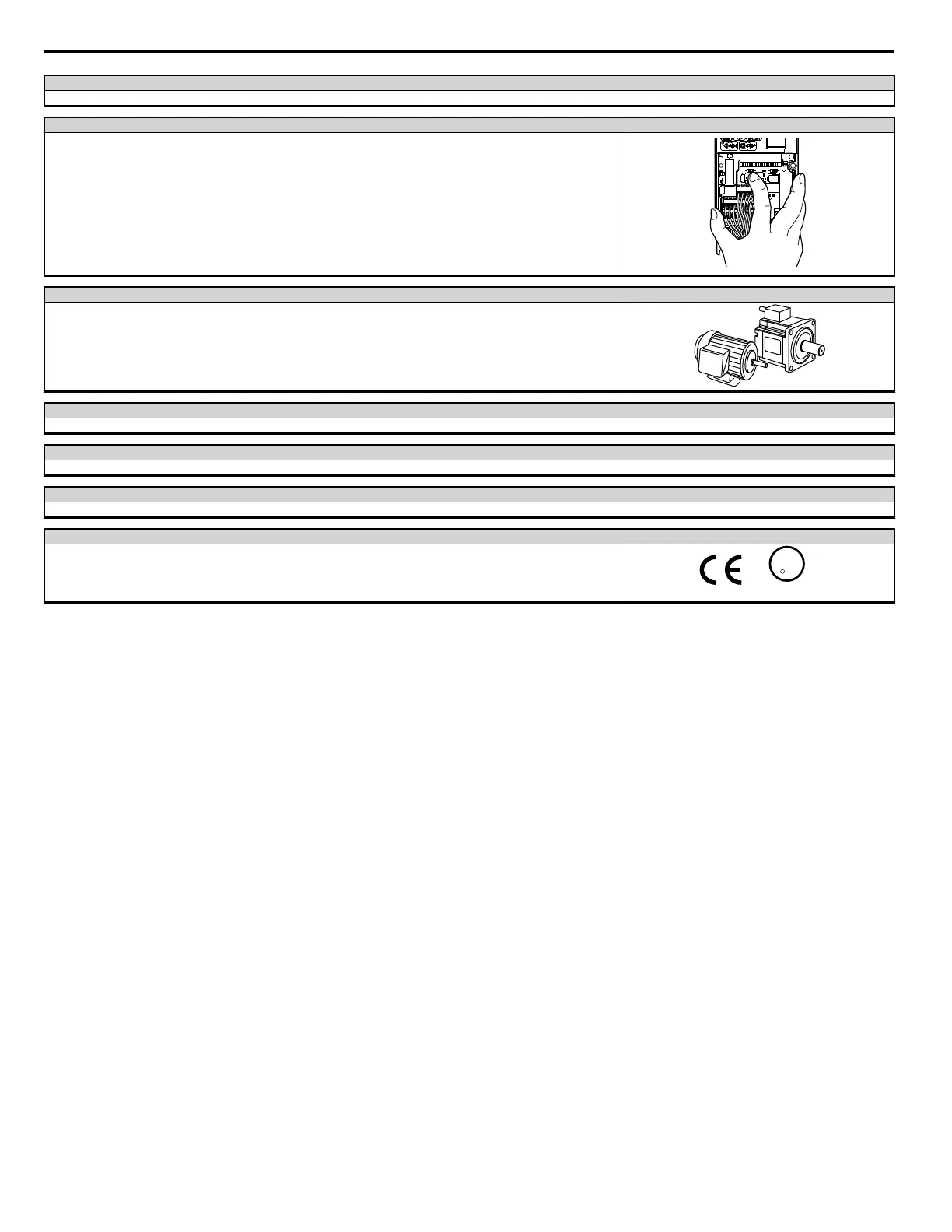

Know the Details of Safety Measures
Operation interlock when program mode is selected. Parameter b1-08.
Replace the Drive
The removable terminal block with parameter backup function allows the transfer of parameter settings after drive replacement.
Refer
to Replacing the Drive on page 263
Drive a Synchronous PM Motor
The V1000 drive can operate synchronous PM motors.
Refer to Subchart A3: Operation with Permanent Magnet Motors on page
68.
Perform Auto-tuning
Automatic tuning sets motor parameters. Refer to Auto-Tuning on page 91
Check the Maintenance Period Using Drive Monitors
The maintenance period of fans and capacitors can be checked drive monitors. Refer to Performance Life Monitors on page 260.
Drive or Motor Faults are Displayed on a Digital Operator
Refer to Fault Displays, Causes, and Possible Solutions on page 229 and Refer to Alarm Codes, Causes, and Possible Solutions on page 238.
Standards Compliance
Refer to European Standards on page 348 and Refer to UL Standards on page 353.
U
L
C
R
US
LISTED
i.2 General Safety
14
YASKAWA ELECTRIC SIEP C710606 18A YASKAWA AC Drive – V1000 Technical Manual (Preliminary)

YASKAWA V1000 Series Specifications

General

Model	V1000 Series
Series	V1000
Output Frequency	0.1 to 400 Hz
Overload Capacity	150% for 60 seconds
Type	AC Drive
Control Method	V/f Control
Input Voltage	200-240V, 380-480V
Output Voltage	0 to Input Voltage
Power Range	0.1 to 18.5 kW
Horsepower	0.2 to 25 HP
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overheating, Short Circuit, Ground Fault
Communication Interfaces	Modbus RTU
Enclosure	IP20
Ambient Temperature	-10 to +50°C
Storage Temperature	-20 to +60°C
Humidity	5 to 95% RH (non-condensing)
Cooling Method	Fan Cooled
