YASKAWA V1000 Series

• Verify Function: Verify parameter setting changes from original default values.
• Setup Group: Access a list of commonly used parameters to simplify setup.
• Parameter Setting Mode: Access and edit all parameter settings.
• Auto-Tuning: Automatically calculates and sets motor parameters for Open Loop or PM Vector control to optimize the drive for the motor
characteristics.
The Setup Group within the Programming Mode
In Setup Group, the user can access the minimum group of parameters required to operate the application.
Note: Setup Group parameters are listed in Appendix B, and indicated with the letter “S” in the Access Level column.
Note: Pressing ENTER from APPL navigates to the Application Preset setting display. When the set value is changed, the parameter is changed to the optimum value for each
application. It is set to 0 (General-purpose) prior to shipment. Refer to Application Presets on page 70.

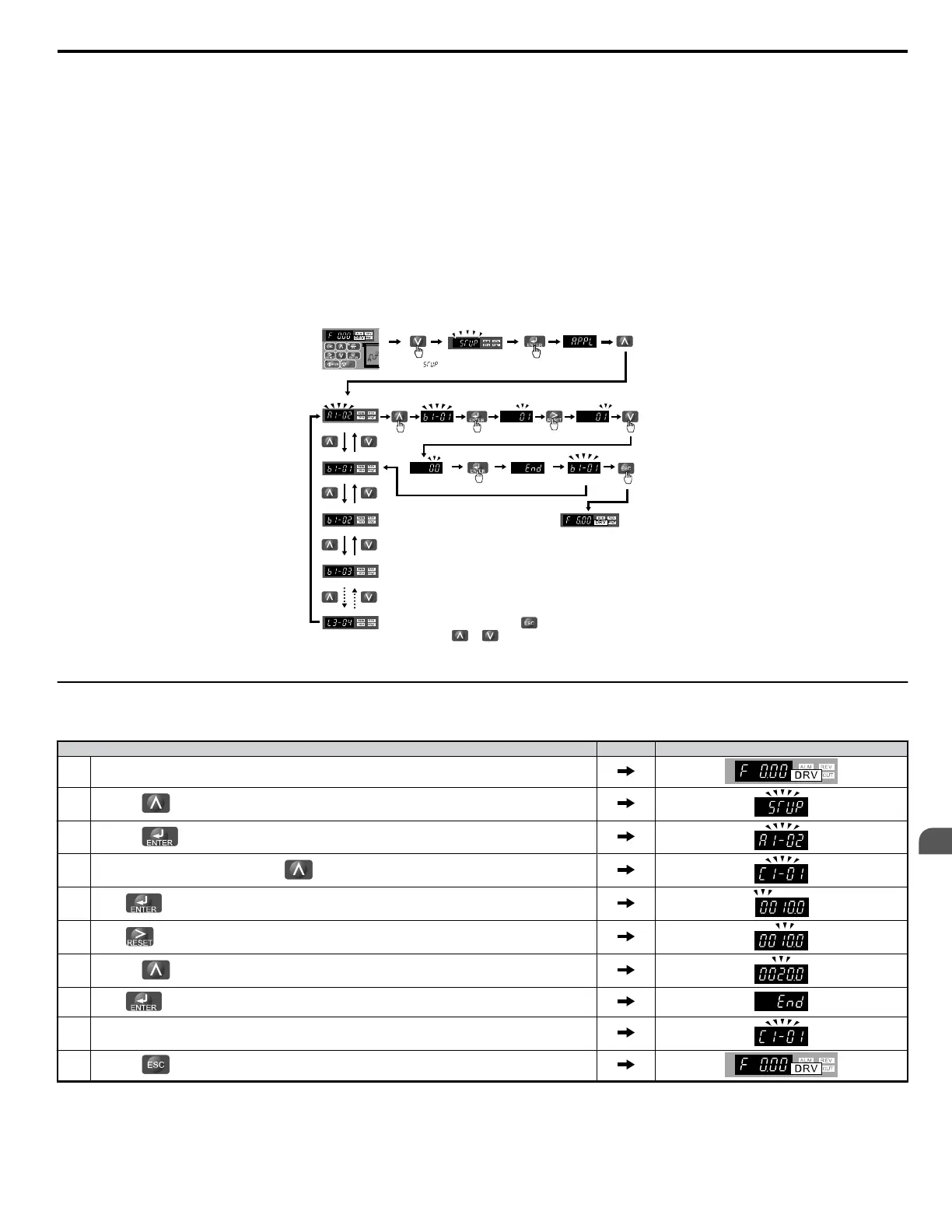

Figure 4.5 illustrates the keys to press to enter the Setup Group.
In this example, the source of the frequency reference is changed from the control circuit terminals to the LED Operator (i.e., b1-01 is changed from 1 to
0).
STOP
STOP
STOP
STOP
STOP
STOP
Control Circuit Terminal
Select digit
to edit
Parameter Display
LED Operator
Frequency reference
appears when powered up
Parameter Display
*1 Pressing ENTER from APPL navigates to the Application Preset setting display.
When the set value is changed, the parameter is changed to the optimum value for
each application. It is set to 0 (General-purpose) prior to shipment.
*2 Move to the right to change parameter settings. Scroll down to view and check
settings in the Setup Mode
*3 To return to the Top Menu, press . To view or edit other parameters,
press and .
*2
*3
Press until
appears
*1
Figure 4.5 Setup Group Example
u
Changing Parameter Settings or Values
This example explains changing C1-01 (Acceleration Time 1) from 10.0 seconds (default) to 20.0 seconds.
Step Display/Result
1. Turn on the power to the drive. The initial display appears.
2.
Press the key until the Setup Mode Screen appears.
3.
Press the key to view the parameter setting display.
4.
Scroll through parameters by pressing the key until C1-01 appears.
5.
Press to view the current setting value (10.0 seconds). (Number farthest to the left flashes)
6.
Press until the desired number is selected. (“1” flashes)
7.
Press the key and enter 0020.0.
8.
Press and the drive will confirm the change.
9. The display automatically returns to the screen shown in Step 4.
10.
Press the key until back at the initial display.
4.3 The Drive and Programming Modes
