YASKAWA V1000 Series

Drive Mode
Output Voltage Reference
(Default setting)
STOP
Scroll through o1-01 (User Monitor Selection) until the desired contents appear. Refer to Parameter List on
page 293
Monitor Display
STOP
Monitor parameters (U-parameters) are displayed. Refer to Drive Status Monitors: U1-01 to U6-19 on page
89.
Programming Mode
Verify Function
STOP
Lists all parameters that have been edited or changed from default settings. Refer to Verifying Parameter
Changes: Verify Menu on page 64.
Setup
STOP
A select list of parameters necessary to get the drive operational quickly. Refer to The Setup Group within
the Programming Mode on page 63. Note: Parameters to be displayed differ depending on the setting of A1-06
(Application Preset). Refer to Application Presets on page 70.
Parameter Setting
STOP
Allows the user to access and edit all parameter settings. Refer to Parameter List on page 293.
Auto-Tuning
STOP
Motor parameters are calculated and set automatically. Refer to Auto-Tuning on page 91.
Drive Mode
Frequency Reference
STOP
Returns to the frequency reference display screen.
n
Drive Mode Details
The following actions are possible in the Drive Mode:
• Run and stop the drive.
• Monitor the operation status of the drive (frequency reference, output frequency, output current, output voltage, etc.).
• View information on an alarm.
• View a history of alarms that have occurred.
Note: Select "Drive Mode" when running. The mode can be switched to any mode (program mode, etc.) other than drive mode while the drive is stopped. However, the drive cannot
be operated in other modes. Return the mode to "Drive Mode" after completing periodic inspection.

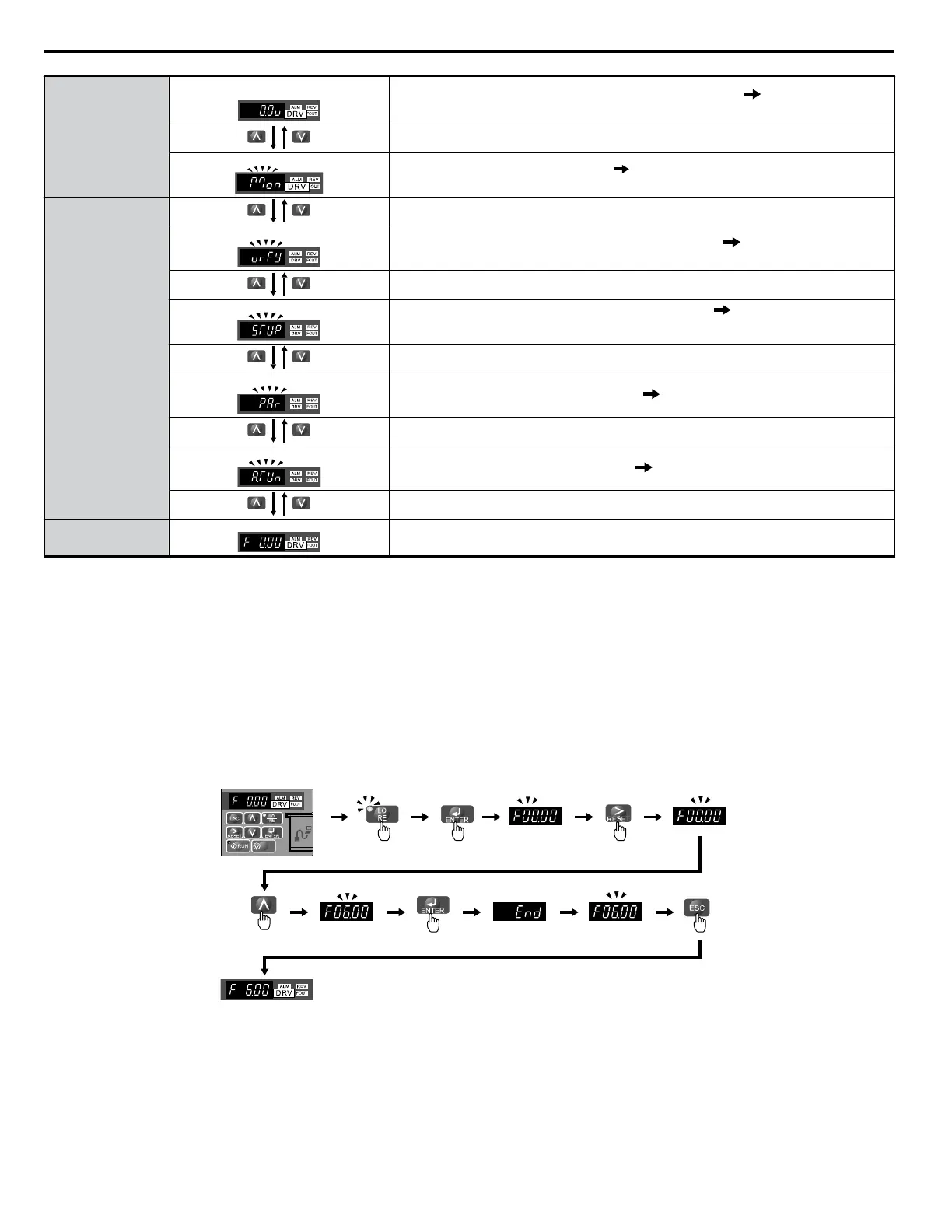

Figure 4.4 illustrates changing the default frequency reference of F 0.00 (0 Hz) to F 6.00 (6 Hz) while in Drive Mode. This example assumes the drive
is set to LOCAL.
STOP
Frequency reference
display at power up
Press to select LOCAL
Press until the frequency
reference becomes 6 Hz
Press to select the
digit to the right
Figure 4.4 Setting the Frequency Reference while in Drive Mode
Note: The drive will not accept a frequency reference set value unless the ENTER key is pressed after the frequency reference is entered. This feature prevents accidental setting of
the frequency reference. By setting o2-05 (Frequency Reference Setting Method Selection) to 1 (Enabled), the drive will accept the frequency reference while it is being
adjusted on the digital operator.
n
Programming Mode Details
The following actions are possible in the programming mode:
4.3 The Drive and Programming Modes
