5.10 o: Digital Operator Related Settings
These parameters concern the various functions and features of the operator.
u
o1: Display Settings and Selections
There parameters determine how data is displayed on the operator screen.
n
o1-01: Drive Mode Unit Monitor Selection
Selects which monitor will be displayed in the operation menu upon power-up when o1-02 = 4. Press the up arrow key four times and select the desired
monitor.
No. Parameter Name Setting Range Default
o1-01 Drive Mode Unit Monitor Selection
104 to 621 (U1-04 to U6-21
*
)
106 (U1-06)
*U2-฀฀ and U3-฀฀ parameters cannot be selected.
Detailed Description
To select a monitor, set the three numeric digits that make up that monitor, in other words, enter the o-oo part of Uo-oo. For more information,
Refer to U1: Status Monitors on page 215.
The following example explains how to set U4-03 (Cooling Fan Operation Time) to be displayed when the drive is first powered up.

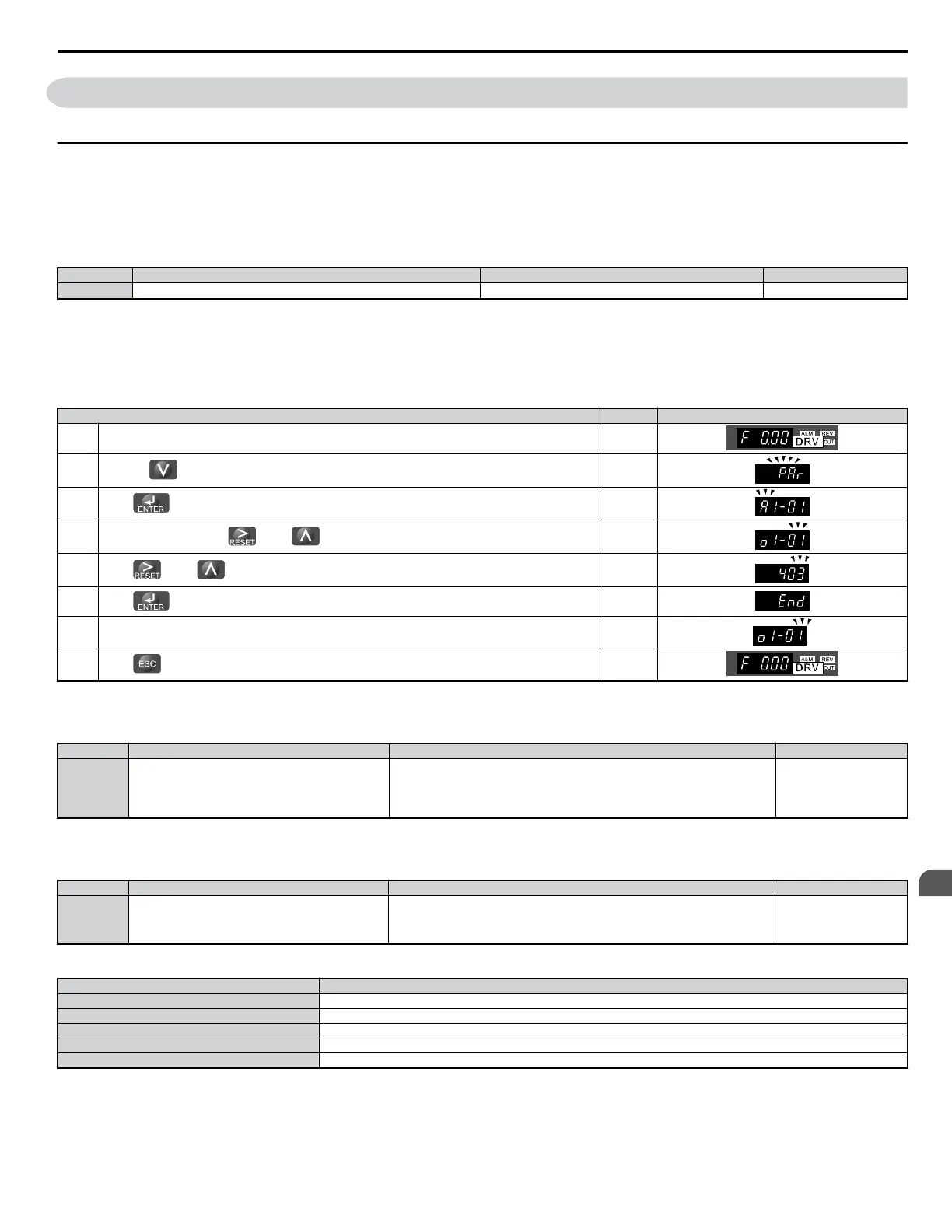

Step Display/Result
1. Power up the drive.
⇒
2.
Press the key until the parameter settings screen appears.
⇒
3.
Press to enter the parameter settings menu.
⇒
4.
Scroll to o1-01 by pressing and .
⇒
5.
Press and to set “403”.
⇒
6.
Press to save the setting.
⇒
7. The screen display will automatically return to step 4.
⇒
8.
Press until the display returns to the first screen.
⇒
n
o1-02: User Monitor Selection After Power Up
Selects which monitor will be displayed upon power-up. Defaulted to show the frequency reference when the drive is first turned on.
No. Parameter Name Setting Range Default
o1-02 User Monitor Selection After Power Up
1: Frequency Reference (U1-01)
2: Forward/Reverse
3: Output Frequency (U1-02)
4: Output Current (U1-03)
5: User Monitor (set by o1-01)
1
n
o1-03: Digital Operator Display Selection
Parameter o1-03 allows the programmer to change the units used in the speed monitors and when some speed parameters are displayed.
No. Parameter Name Setting Range Default
o1-03 Digital Operator Display Selection
0: 0.01 Hz
1: 0.01% (100% = E1-04)
2: r/min (enter the number of motor poles)
3: User-set
0
The o1-03 parameter will change the units of the following parameters along with o1-10 and o1-11.
No. Parameter Name
U1-01 Frequency Reference
U1-02 Output Frequency
U1-05 Motor Speed
U1-16 Output Frequency after Soft Start
d1-01 to d1-17 Frequency Reference 1 to 17
