APPEAR AS Confidential 76/352

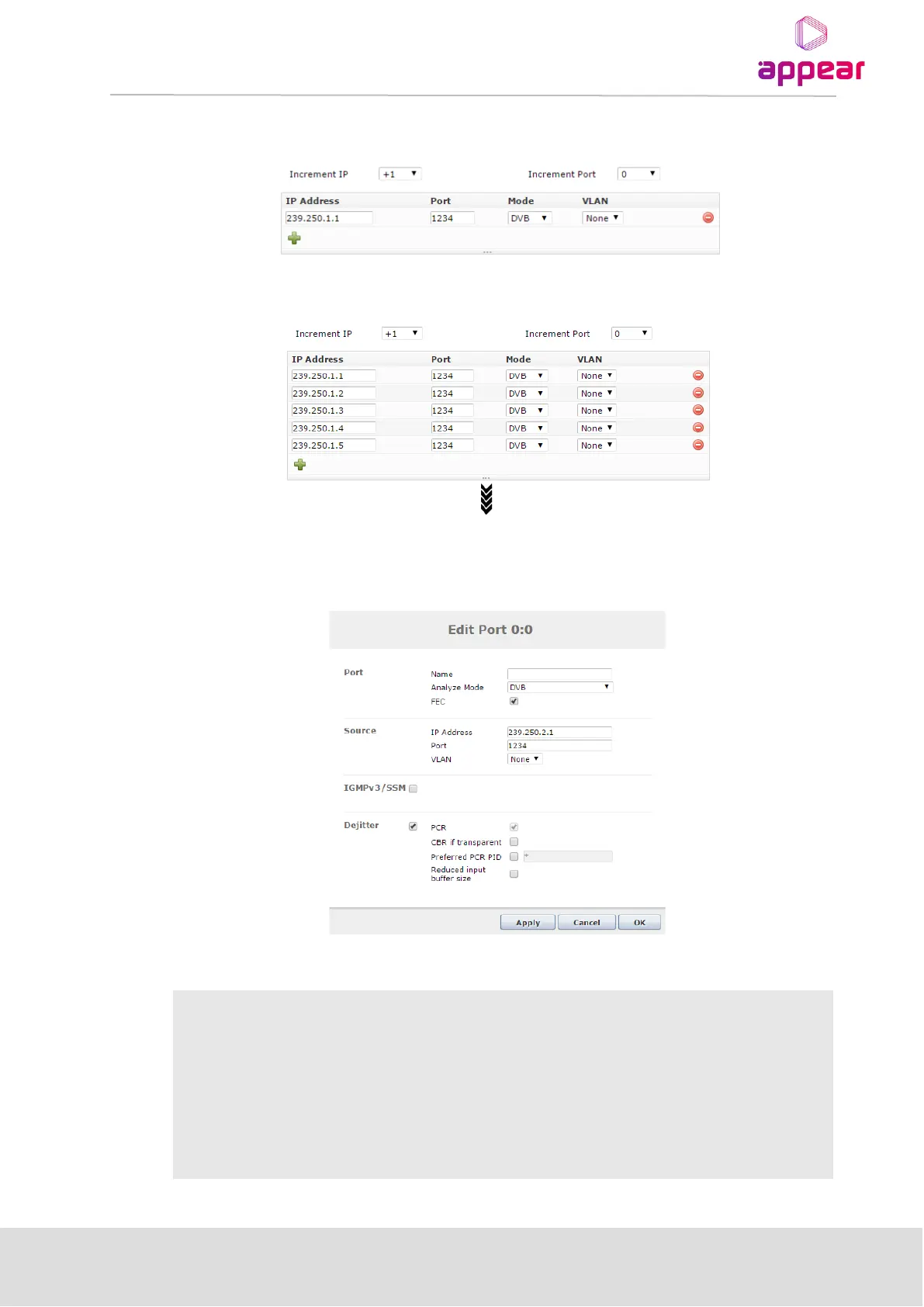

When adding an IP input, the following parameters are available:
Extending the dialog box down will add more multicasts based on the ‘Increment’ settings:
Settings here can be adjusted per input stream and once complete click the ‘Add’ to apply.
Once a list of input streams are added, you can edit each input. The following parameters are available:
The following additional parameters are available for configuration:
Name
This name is displayed as a tooltip when the mouse cursor hovers over the port.
Analyse Mode
Select one of the following modes:
o DVB
o DVB (SDT)
o MPEG
o ATSC
OFF
