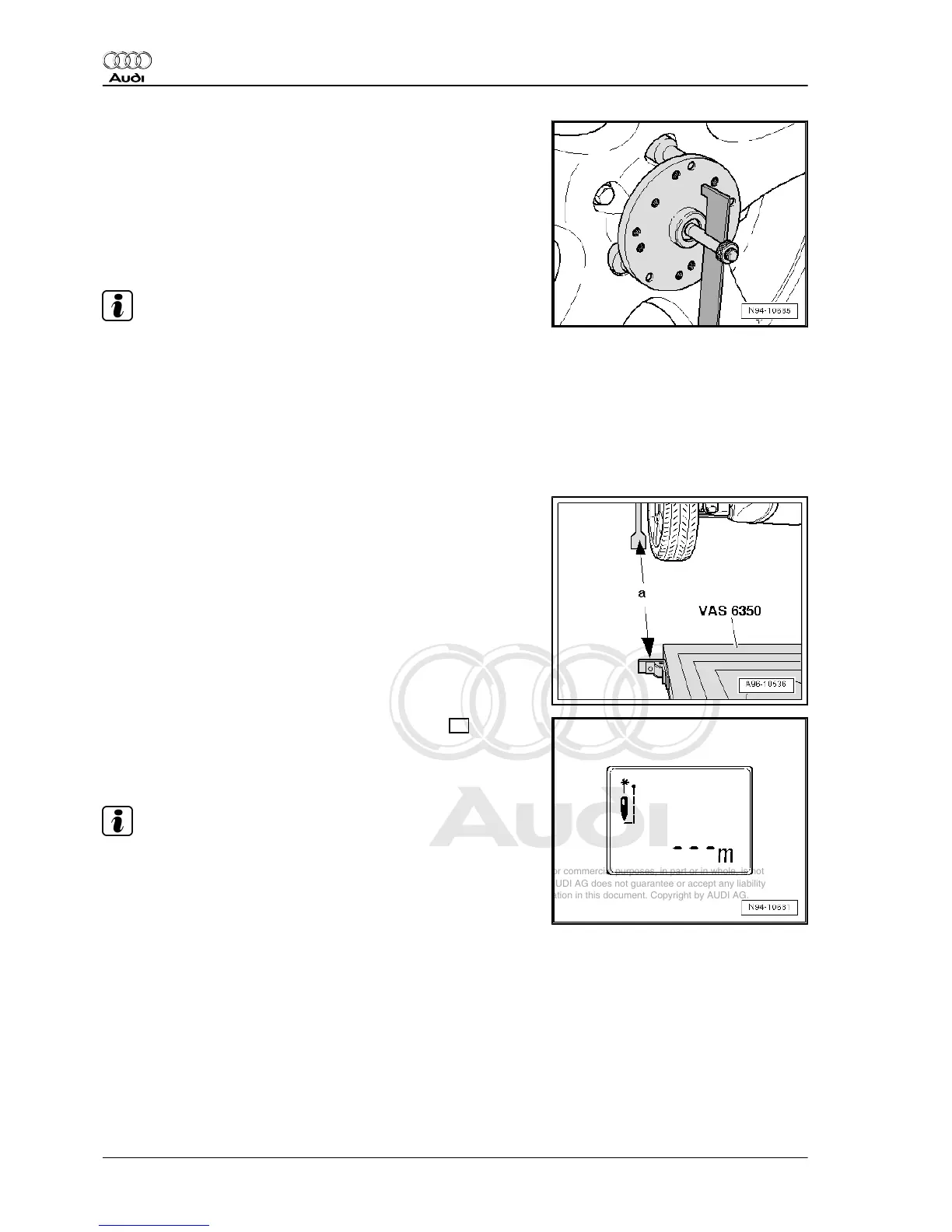

– Fit three wheel bolt adapters (19 mm) onto each wheel centre
mounting - VAS 6350/1- .
– Fit measuring paddle onto each of the wheel centre mountings
-VAS 6350/1- and secure each paddle with lock nut.
– Fit wheel centre mountings - VAS 6350/1- onto wheel bolts on
both rear wheels.
• Centre of rotation of wheel centre mounting must align with
centre of rotation of wheel.
Note
When fitting the wheel centre mountings - VAS 6350/1- onto the
wheels, make sure that the “anti-theft wheel bolts” do not come
into contact with the wheel centre mounting.
– Use lock nuts to adjust measuring paddles so that they are
free to move just slightly above the ground.
• Measuring paddles must move freely.
• Measuring paddle must be in an upright position.
– Position the calibration unit - VAS 6350- at a distance of -a-
from rear wheels.
• Dimension -a- = 1,700 mm
– Switch on spacing laser -VAS 6350/2- by pressing ON button.
Display on -VAS 6350/2- :
• “- - - m”
Note
The laser is switched on simultaneously.
