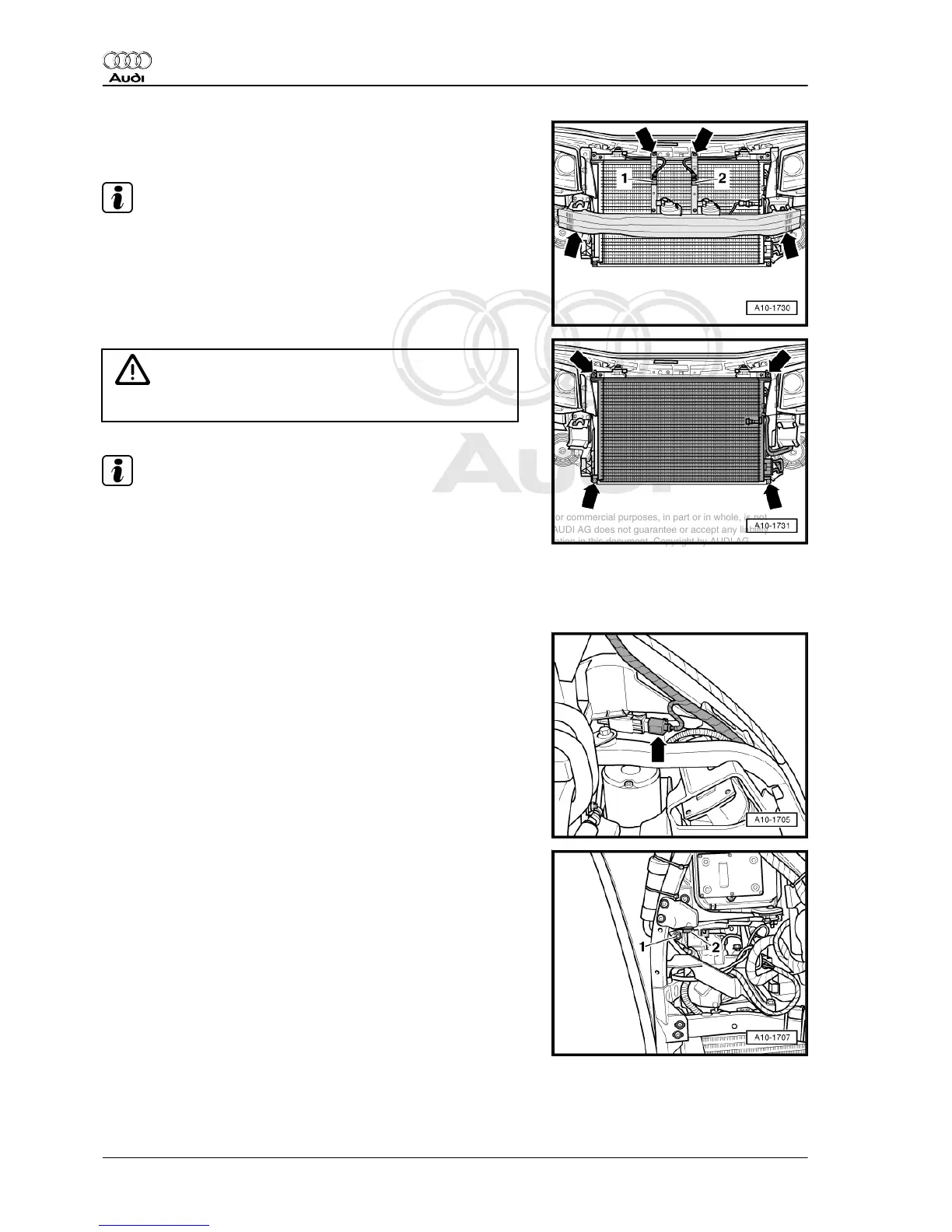

– Unscrew bolts -arrows-.
– Remove bumper with braces.
Note
Disregard -item 1- and -item 2-.
WARNING
Do not open refrigerant circuit of air conditioner.
Note
To avoid damage to the refrigerant pipes/hoses, take care not to
strain, kink or bend pipes and hoses.
– Unscrew bolts -arrows-.
– Swivel down condenser with cooler for power steering.
– Tie up condenser at bottom to engine.
– Unplug electrical connector -arrow- on crash sensor for front
airbag (left and right).
– Move all wiring clear at rear of lock carrier.
– Unscrew one nut -1- and one bolt -2- each for lock carrier in
left and right wheel housing.
