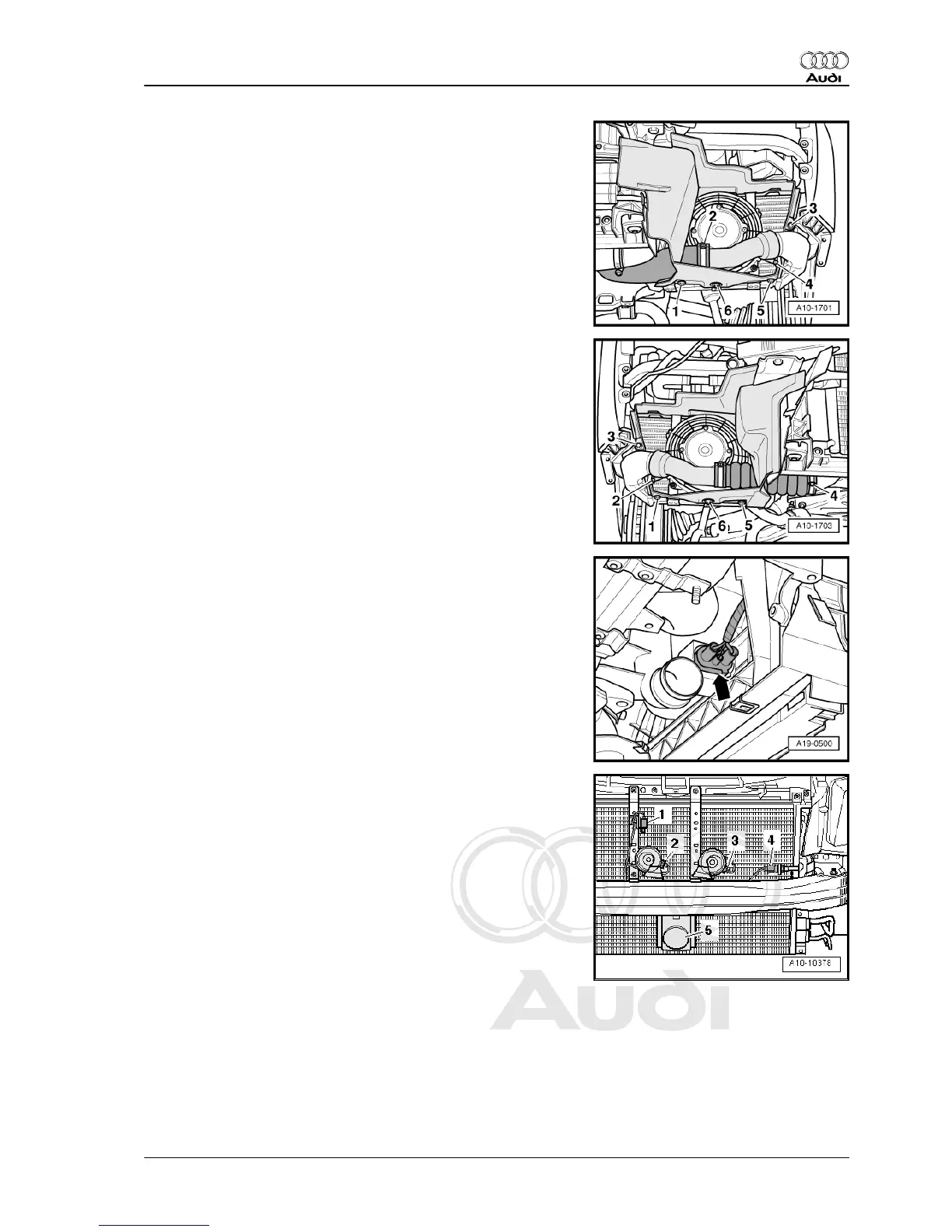

– Unscrew bolts -1-, -3- and -5-.
– Remove bolt -4- and nut -6-.
– Loosen hose clip -2- and remove air pipe.
– Detach air duct for charge air cooler (left-side).
– Unscrew bolts -1-, -3- and -5-.
– Remove bolt -2- and nut -6-.
– Loosen hose clip -4- and remove air pipe with hose.
– Detach air duct for charge air cooler (right-side).
– Unplug electrical connector -arrow- for radiator fan - V7- .
– Move wiring clear.
– Remove ambient temperature sensor - G17- -item 1- from
bracket.
– Unplug electrical connectors -2 ... 4-.
– Unbolt adaptive cruise control unit - J428- -item 5- and unplug
electrical connector.
– Move harness clear.
