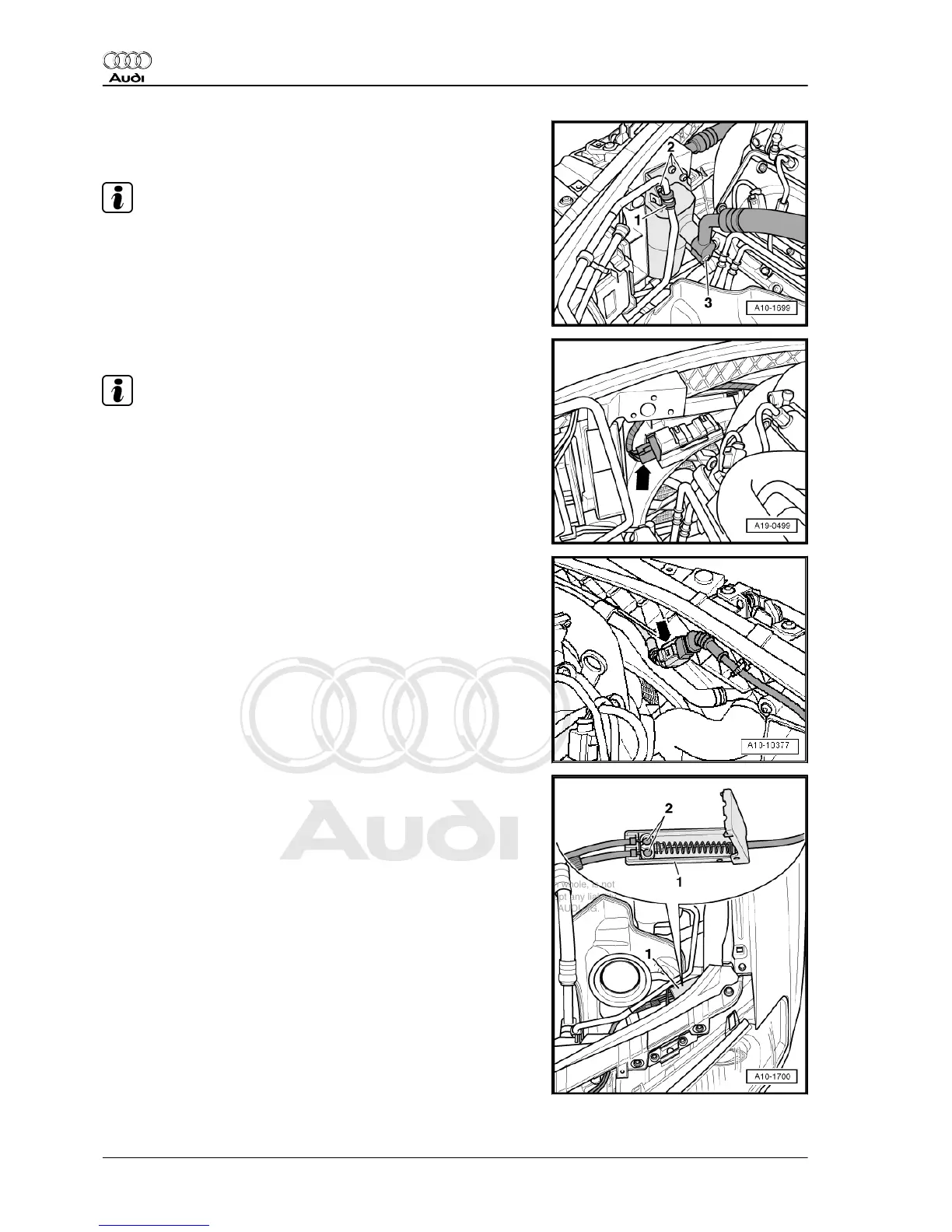

– Detach clamp -1- at reservoir.
– Remove bolts -2-.
Note
Do not open refrigerant pipe -3-.
– Unplug electrical connector -arrow- for radiator fan 2 - V177- .
Note
Shown with reservoir removed for illustration purposes.
– Unplug electrical connector -arrow- (left and right) at bonnet
lock.
– Move wiring clear.
– Detach cable junction -1- from lock carrier.
– Open housing and disengage the two bonnet cables -2-.
