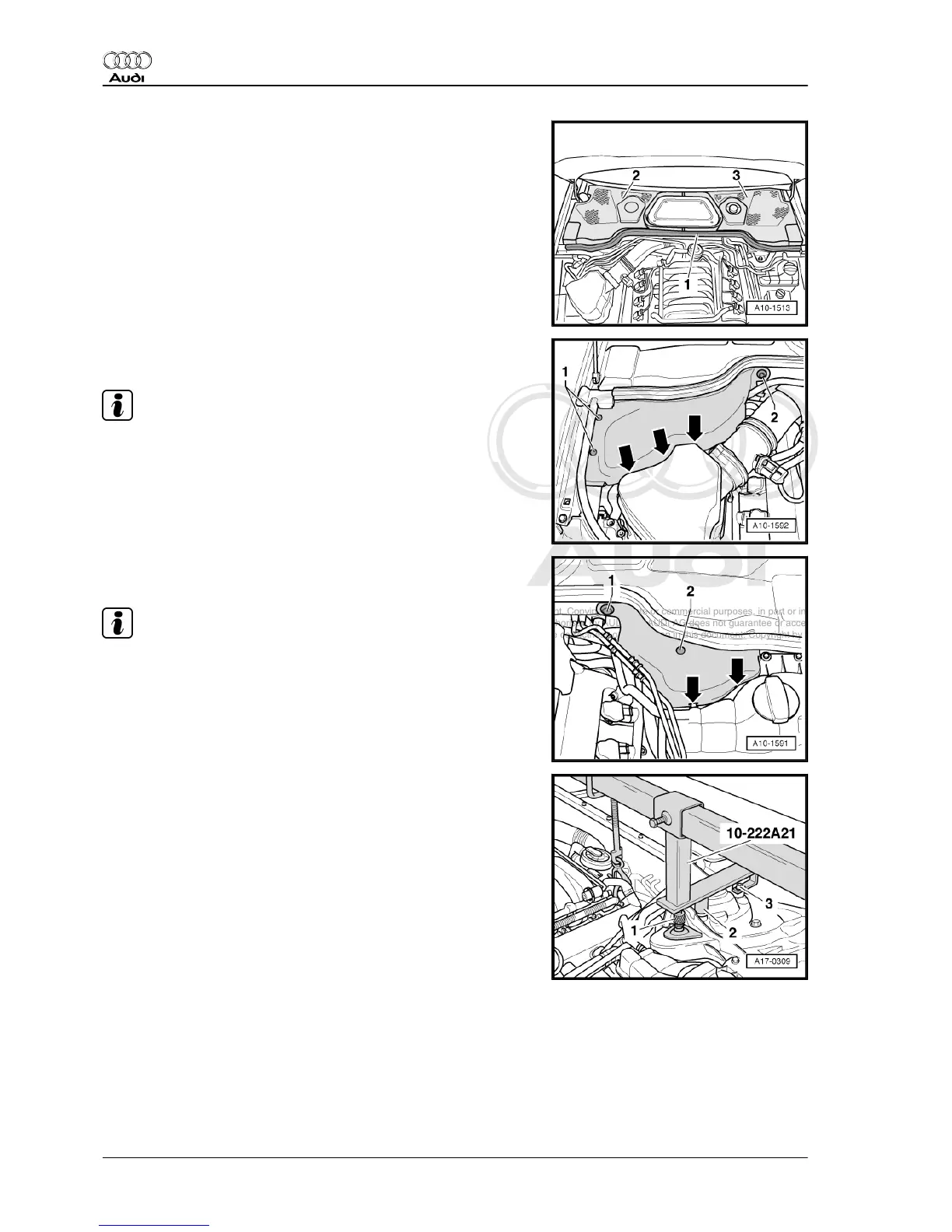

– Pull off rubber seal -1- for plenum chamber covers.
– Detach plenum chamber covers -2- and -3-.
– Remove cover for suspension strut turret (right-side) by de‐
taching fasteners -1- and unscrewing bolt -2-.
Note
Pay attention to retaining clips -arrows- when installing.
– Remove cover for suspension turret (left-side); to do so, un‐
screw bolt -2- and detach fasteners -1-.
Note
Pay attention to retaining clips -arrows- when installing.
– Remove rear bolts -3- for body brace.
– Attach support bracket - 10 - 222 A- with adapters - 10 - 222
A /21- to suspension turrets.
• Supports are marked for left and right side of vehicle.
• Centre resting point of supports is positioned on front bolts for
body brace.
• Adapters - 10 - 222 A /21- are secured with rear bolts -3- for
body brace.
• Knurled screw -1- must be screwed down so that support plate
rests on suspension strut turret.
Audi A8 2003 ➤
Electrical system - Edition 08.2014
64 Rep. gr.27 - Starter, current supply, CCS
