BST CCD CAM 100 User Manual

8
Commissioning
100/198 CCD CAM 100 – Installation and Operating Manual

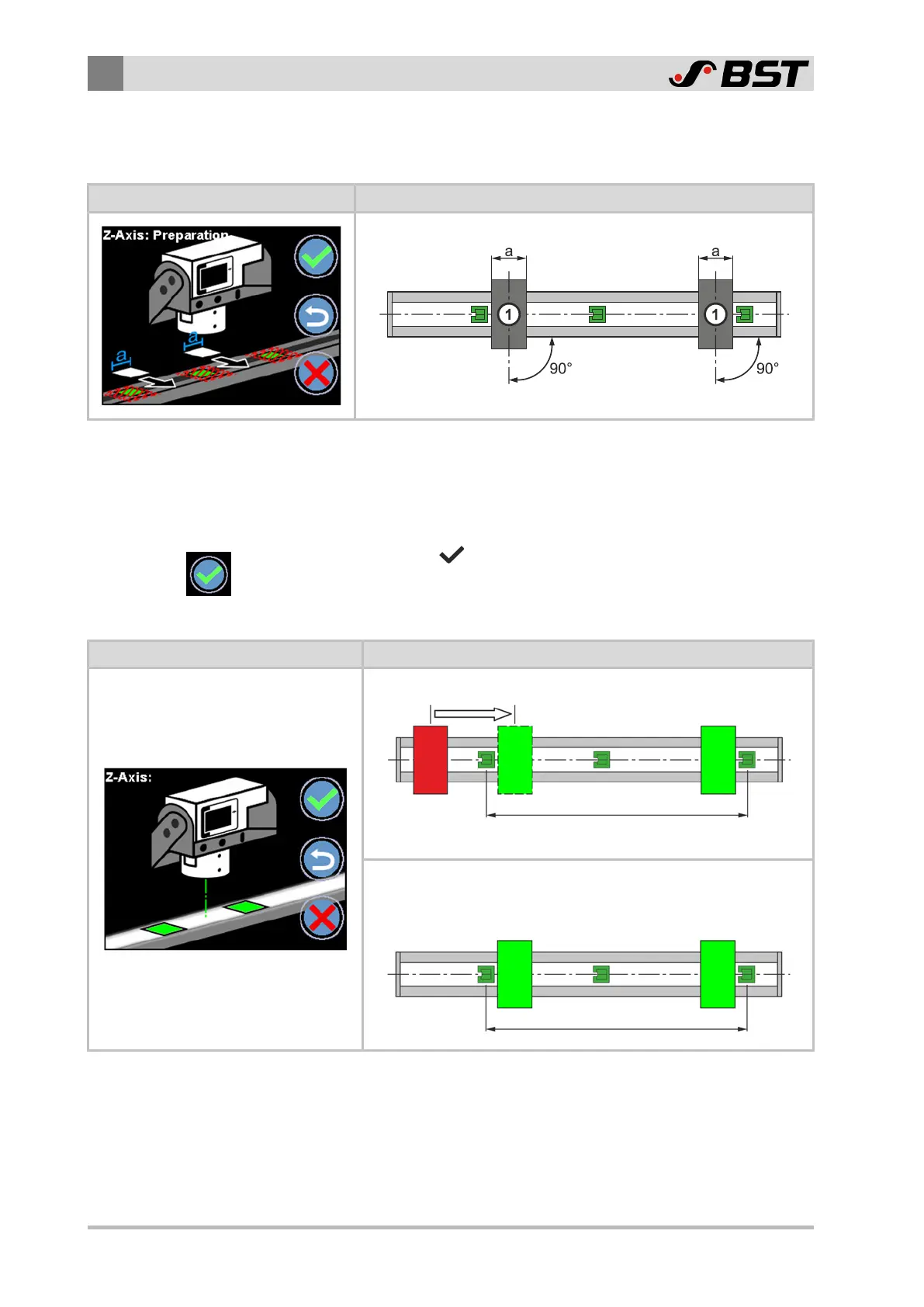

8.9.10.2 Procedure for "Pattern" Alignment Method
Inserting material strips
Display Screen Mechanical Setting
›› The LED lighting of the light box is switched on.
1. Position two opaque material strips ① with identical width
(e.g. business cards) above the lighting field of the light box.
The angle between the material strips and the light box must
be exactly 90°.
2. Press the button to complete the adjustment step.
The screen display changes to the next step.
Aligning material strips
Display Screen Mechanical Setting
Incorrect
Measuring range
Material strip
outside the
measuring range
Correct
Both material strips
within the measuring range
Measuring range
1. Align the material strips as follows:
Both material strips must be located within the camera meas-
uring range. They should be positioned as close to the outer
LED projection points as possible without making contact with
them.
