Chery QQ - Page 204

Chery QQ Service Manual Transmission System
-102-
Chery Automobile Co., Ltd

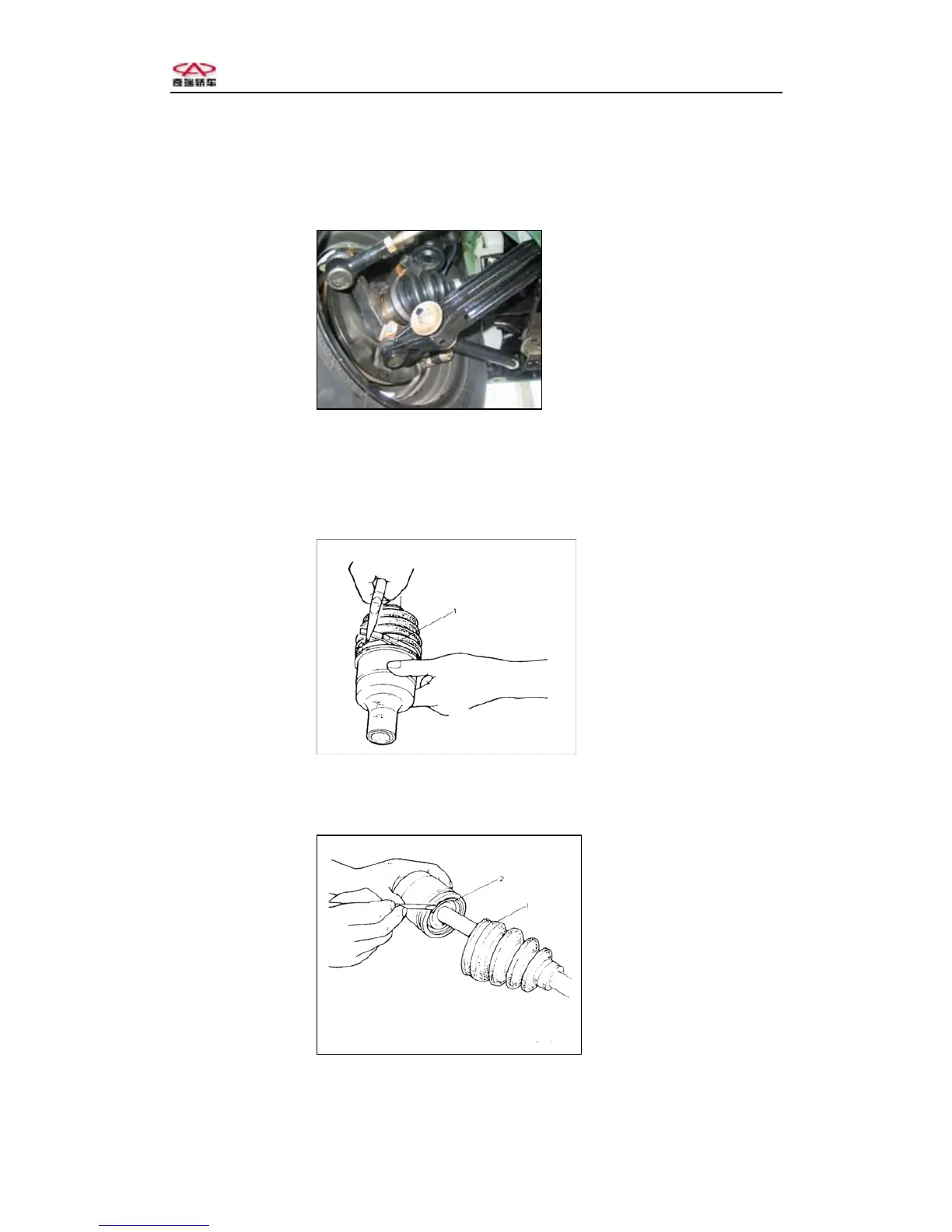

（6） Loosen the central bearing seat bolt, remove the output shaft from
differential side gear.
3. Disassemble the propeller shaft.
（1） Remove the differential universal joint boot hoop.
1， Boot hoop
（2） Move the boot to the middle position and take out the shaft from the
bell-mouthed.
1， Boot 2， Snap ring
