Cisco ASR 1000 Series Software Configuration Guide

The following figure shows the SPA numbering sequence on a Cisco ASR 1000 Series Aggregation Services
Routers SIP.

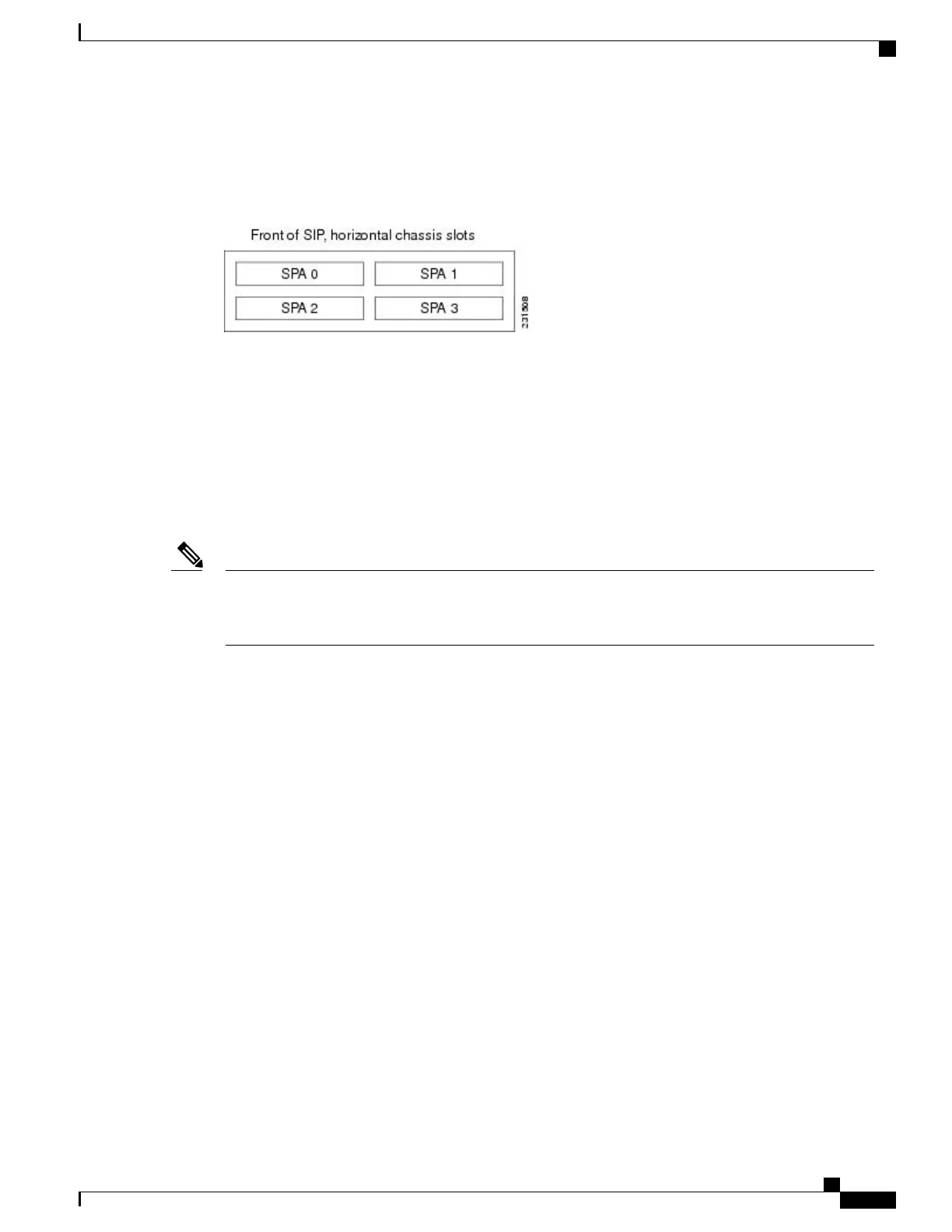

Figure 4: Cisco ASR 1000 Series SIP SPA Numbering
The SIP subslot numbering is indicated by a small numeric label beside the subslot on the faceplate.
Just as with the SIPs, some commands allow you to display information about the SPA itself, such as show
diag subslot. These commands require you to specify both the physical location of the SIP and SPA in the
format, slot /subslot , where:
• slot —Specifies the chassis slot number in the Cisco ASR 1000 Series Routers where the SIP is installed.
• subslot —Specifies the slot of the SIP where the SPA is installed.
To display the operational status for a SPA installed in the SIP, enter the show platform command.
The Cisco ASR1000-SIP40 supports four half-height SPAs, two full-height SPAs, and a combination of
two half-height and one full-height SPAs. The Cisco ASR1000-SIP40 does not support double-wide SPAs
and double-high SPAs having two connectors.
Note
The Cisco ASR1000-SIP40 runs on the Cisco ASR1004 Router, Cisco ASR1006 Router, and Cisco ASR
1013 router. The Cisco ASR1000-SIP40 is also compatible with both Cisco ASR1000-RPs and the Cisco
ASR 1000 ESP10, ASR1000-ESP20, Cisco ASR1000-ESP40, and Cisco ASR1000-ESP100 modules. The
LEDs on the modules are the same for both the Cisco ASR1000-SIP10 and Cisco ASR1000-SIP40.
Hardware Module Scheduling Commands
The following hardware module scheduling command is supported on the router.
Cisco ASR 1000 Series Aggregation Services Routers SIP and SPA Software Configuration Guide, Cisco IOS XE
Everest 16.5
OL-14127-17 33
Configuring the SIP
Hardware Module Scheduling Commands
