Chapter 13. Active Multi-way Speakers
13.4 CALIBRATING AN ACTIVE SPEAKER
Calibration proceeds in a similar manner to Chapter 7, with specific differences noted
here.

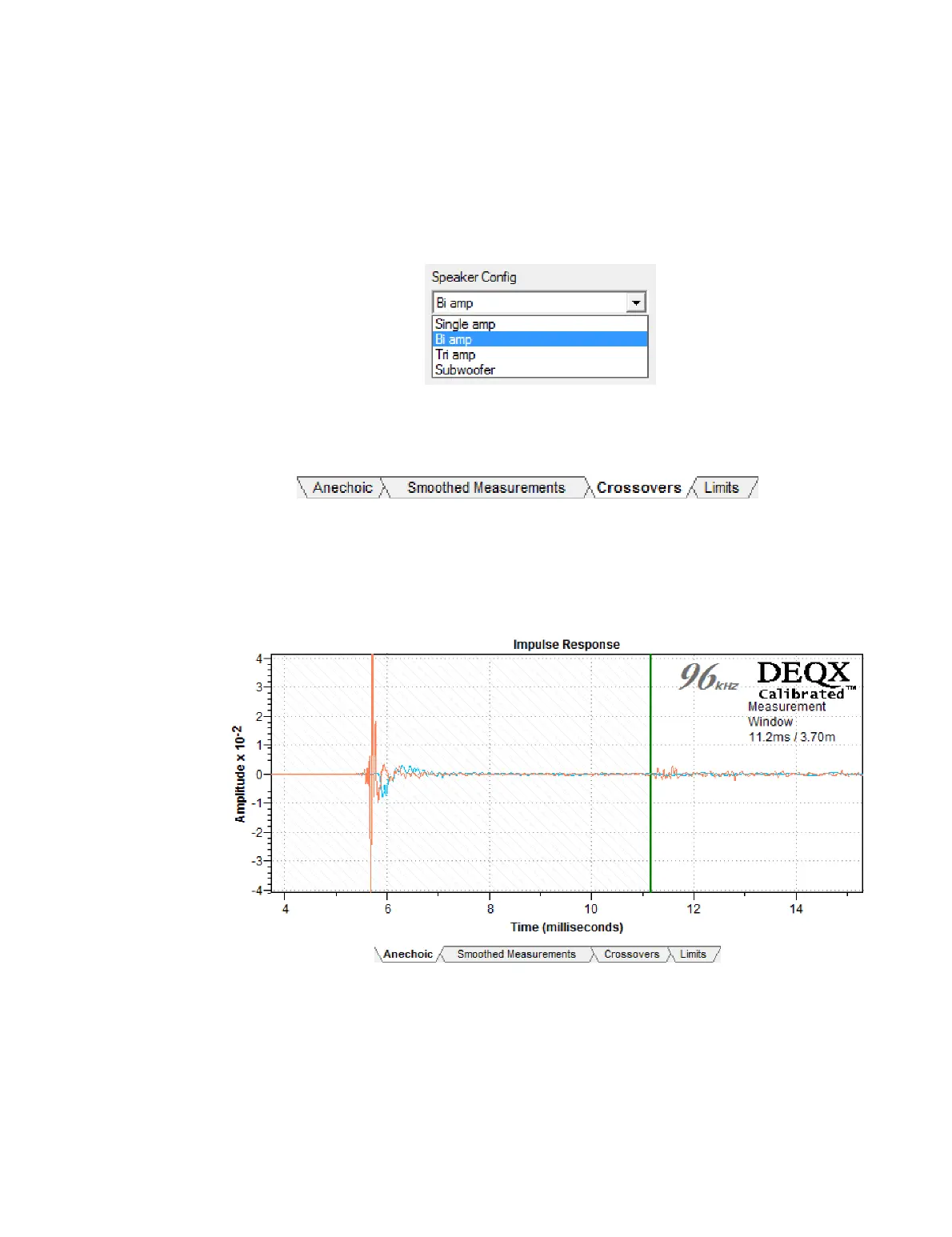

Screen 3. Choose “Bi amp” or “Tri amp.”
When the Calibration window opens, it will be seen that there is an additional tab,
Crossovers. As before, you will usually proceed through these tabs in sequence, but can
also jump back and forth by clicking on individual tabs.
13.4.1 Anechoic tab
Set the time window as described on page 56. This time, there will be two or three
impulse responses visible, one for each driver.
