2.6 DIGITAL OUTPUTS

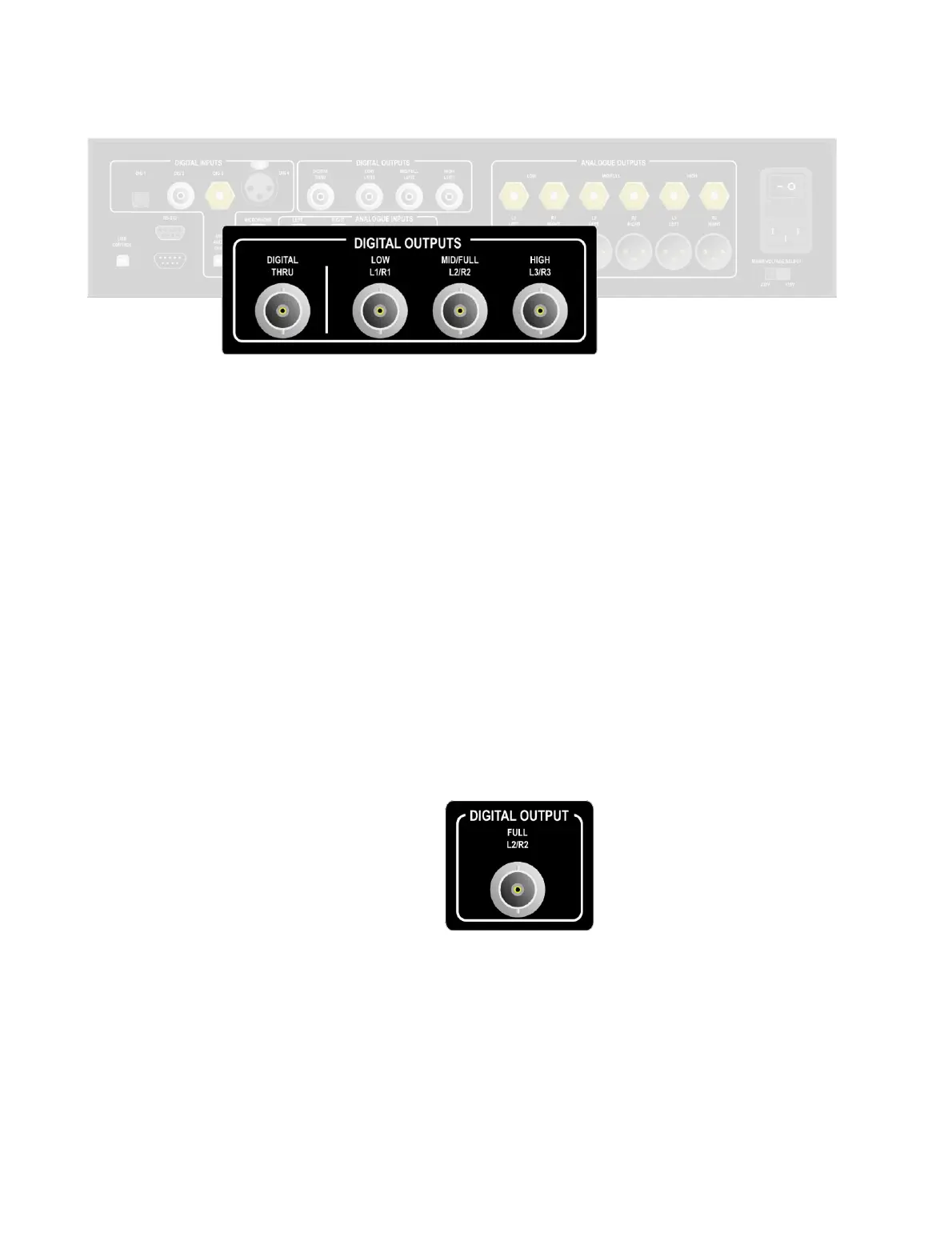

The HDP-4 and HDP-5 provide a full complement of digital outputs, as shown above. All
digital outputs are on professional 75 Ω (75 ohm) BNC connectors and produce an
S/PDIF digital audio stream at 96 kHz sample rate. (BNC-RCA adapters can be used for
connection of RCA digital cables.) See page 24 for an example of the use of digital
outputs.
Digital Thru
This is the selected stereo input signal (analog or digital), with no correction or
processing applied. It is used to create more complex system configurations by
chaining multiple DEQX units (see Chapter 14). Digital Thru does not have volume
control or any form of filtering or other processing applied to it.
Low, Mid/Full, High
These three stereo digital outputs carry the same signal as the analog Low,
Mid/Full, and High outputs. They can be used to connect external DACs instead
of using the internal DACs of the DEQX.
The PreMATE and PreMATE+ provide a single digital output:
Full
This is the same signal as provided on the Main Speakers analog output. It carries
the corrected audio signal for the speakers, optionally with limit filters for
subwoofer integration. It can be used to connect an external DAC instead of using
the internal DAC of the DEQX.
The HDP-Express II does not have digital outputs.
