Chapter 2. Installation and Connectivity
2.5 ANALOG OUTPUTS
The set of analog outputs varies by model. In all cases, the maximum output voltage
can be set by internal jumpers (see Appendix D). The connections made to the analog
outputs depend on the chosen system configuration – see the explanatory box on
page 23 for use with full range passive speakers and pages 107–108 for active speakers.

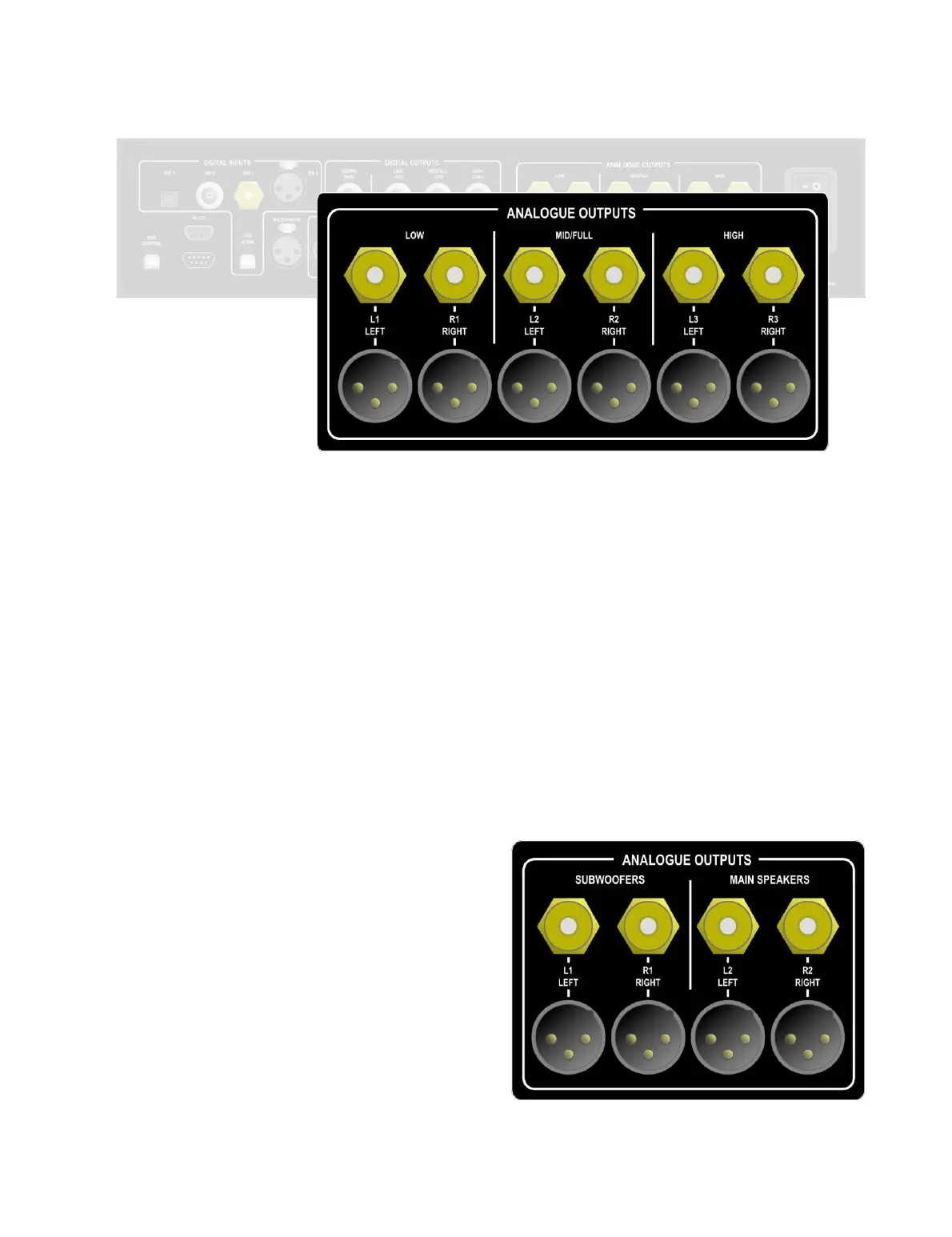

HDP-4 and HDP-5
The HDP-4 and HDP-5 have three pairs of outputs, provided by separate
unbalanced (on RCA) and balanced (on XLR) circuits. In accordance with the full
tri-amped output configuration (page 108), each pair is labeled Low, Mid/Full,
and High. Individual outputs are labeled L1/R1, L2/R2, and L3/R3.
HDP-Express II
The HDP-Express II has three pairs of outputs as per the HDP-4 and HDP-5,
provided as unbalanced signals on RCA connectors. The HDP-Express II does not
have balanced outputs.
PreMATE and PreMATE+
The PreMATE and PreMATE+
have two pairs of outputs,
labeled Subwoofers and Main
Speakers, provided by
separate single-ended (on
RCA) and balanced (on XLR)
circuits. Individual outputs are
labeled L1/R1 and L2/R2.
