DEQX User Manual

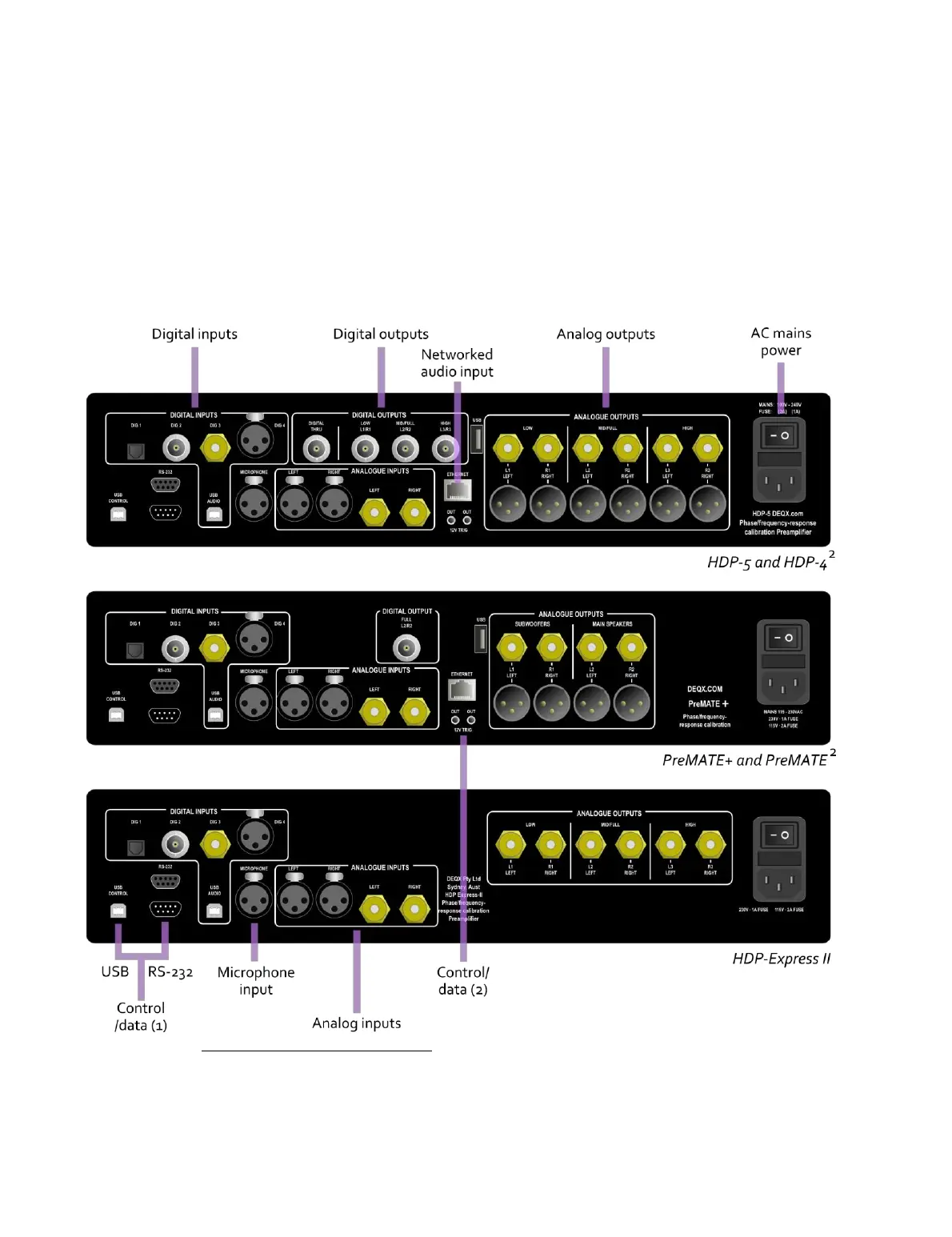

2.2 REAR PANEL OVERVIEW
All DEQX units are variations on a theme, designed to provide a high degree of
flexibility in connecting your new DEQX into your audio system. Each features a full
complement of five digital inputs as well as balanced and unbalanced analog inputs.
The HDP-5 and PreMATE+ also act as a networked streaming audio destination via their
Ethernet port. Specific units differ in output connectivity with different analog and
digital output configurations according to intended use.
The HDP-4 and PreMATE lack the USB A, Ethernet, and 12V Trigger connectors in the center of
the rear panel. The HDP-4 has an additional switch for mains input voltage selection.
