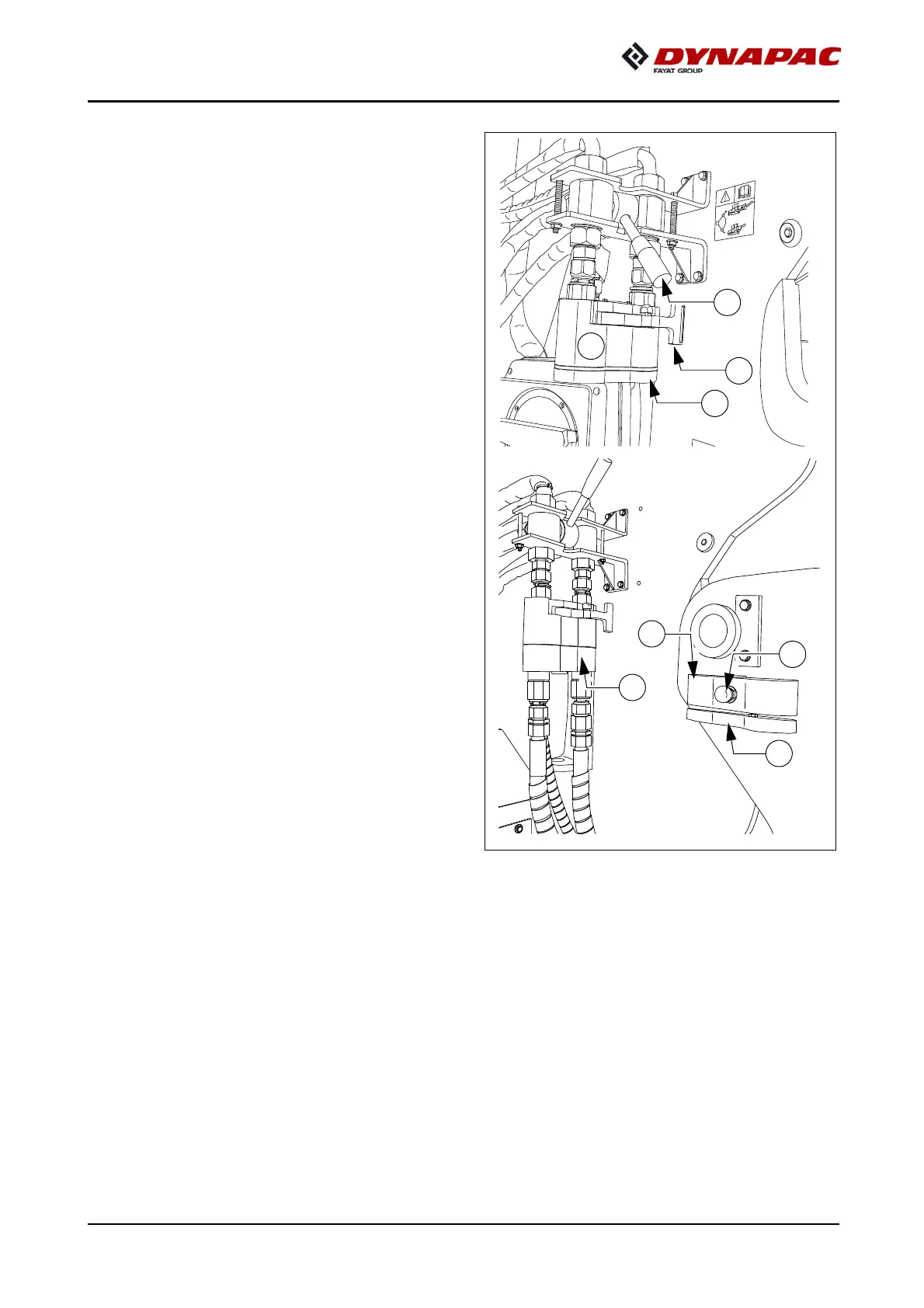

Connect the hydraulic compact coupling:
- Move the locking clamp (16) on the
compact coupling (15) and remove the
plate (17).
- Pull the knob (19) on the parking cou-
pling (18), remove the hose pack-
age (20) and insert in the compact
coupling (15).
- Move the locking clamp (16) into lock-
ing position.
- Insert the plate (17) in the parking cou-
pling (18).
- Open the valve (21) (swivel the handle
upwards).
f
If the slewing conveyor belt is not mount-
ed to the vehicle, the hose package (20)
must always be fastened to the parking
coupling (18)!
