iPECS-LIK
Feature Description & Operation Manual
Issue 6.1
413

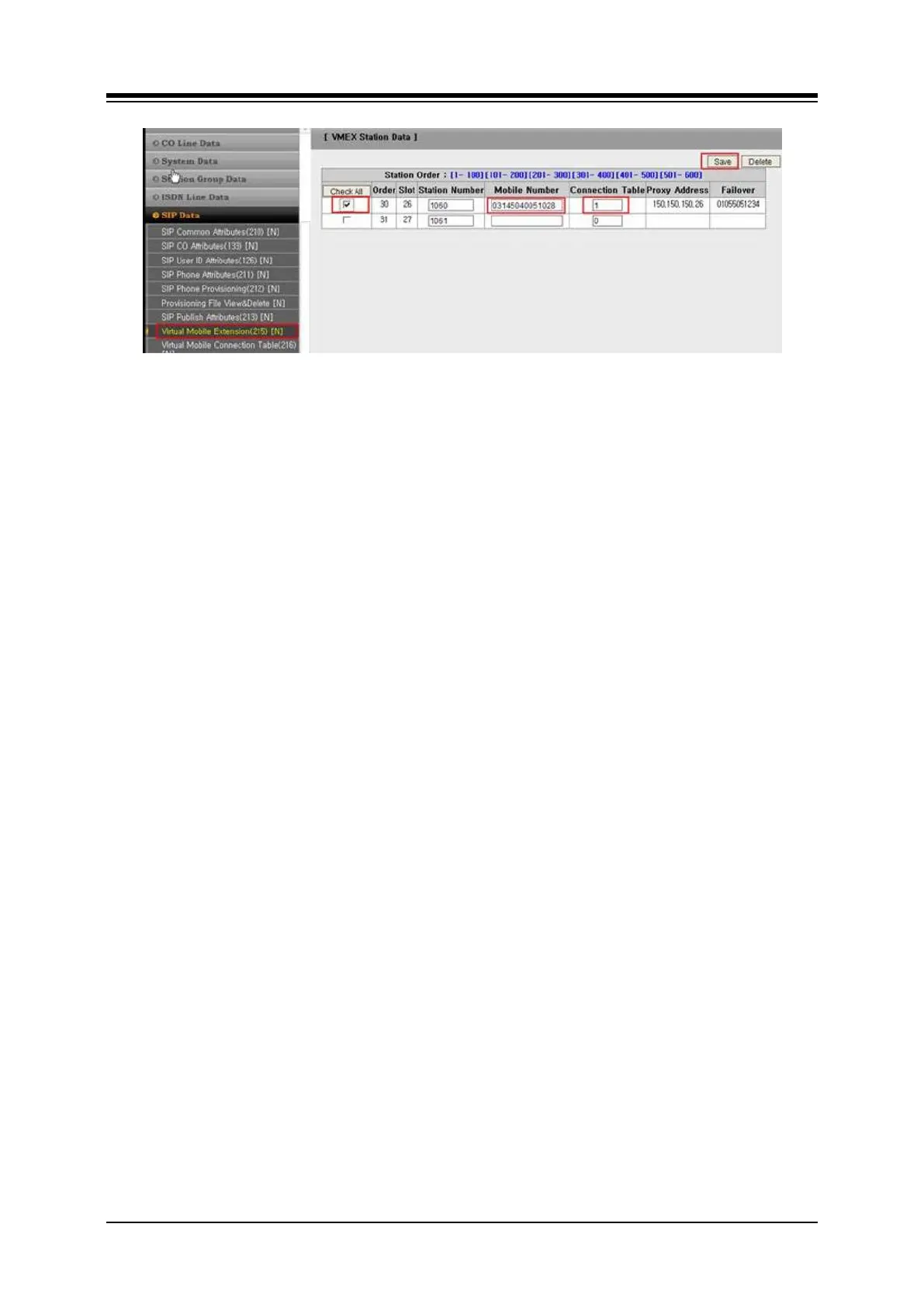

4. VMEX Connection Table
– SIP Data / PGM 216
– Number of table is 10 because there can be some of different trunk over
different SIP service provider.
– Proxy IP : IP address of VMEX over SIP service provider
– Domain Name : domain name instead of IP address will be supported later.
currently you can input same IP address as Proxy IP.
– Port : SIP Port Number of VMEX over SIP service provider
– Firewall : Apply = use firewall IP of MFIM ; Not = use LAN IP of MFIM
– E164 type : It was originally modification of incoming invite from Mobile by
removing
– nation and area code manually.
But currently it is just for reserved because incoming invite is automatically
modified.
for example)
if To: < sip:+999908920533@tdc.se > then +999908920533 is converted to
‘999908920533’ and
if the ‘9999’ is incoming prefix then it is converted again to ‘08920533’ and if
‘089’ is nation and area code
then the last invite will be ‘20533’.
c.f) If you need to modify manually by E164 type, I will change to see this
attribute.
– To Prefix : add this in To: header when invite to Mobile Phone
– From/Contact Prefix : add this in From: and Contact: header when invite to
Mobile Phone
– Outband Prefix : analize this for To: header of invite from Mobile Phone.
Remove this prefix if it is matched.
Reject the invite if this prefix if it is not matched.
c.f) If you mean this as an authentication number per VMEX then I should move
this to PGM 215, per VMEX.
– Outband Usage : currently reserved and it will be for authorization ON/OFF of
incoming invite from Mobile Phone.
