Fujitsu PRIMERGY RX1330 M3

106 Upgrade and Maintenance Manual RX1330 M3
Power supply unit (PSU)

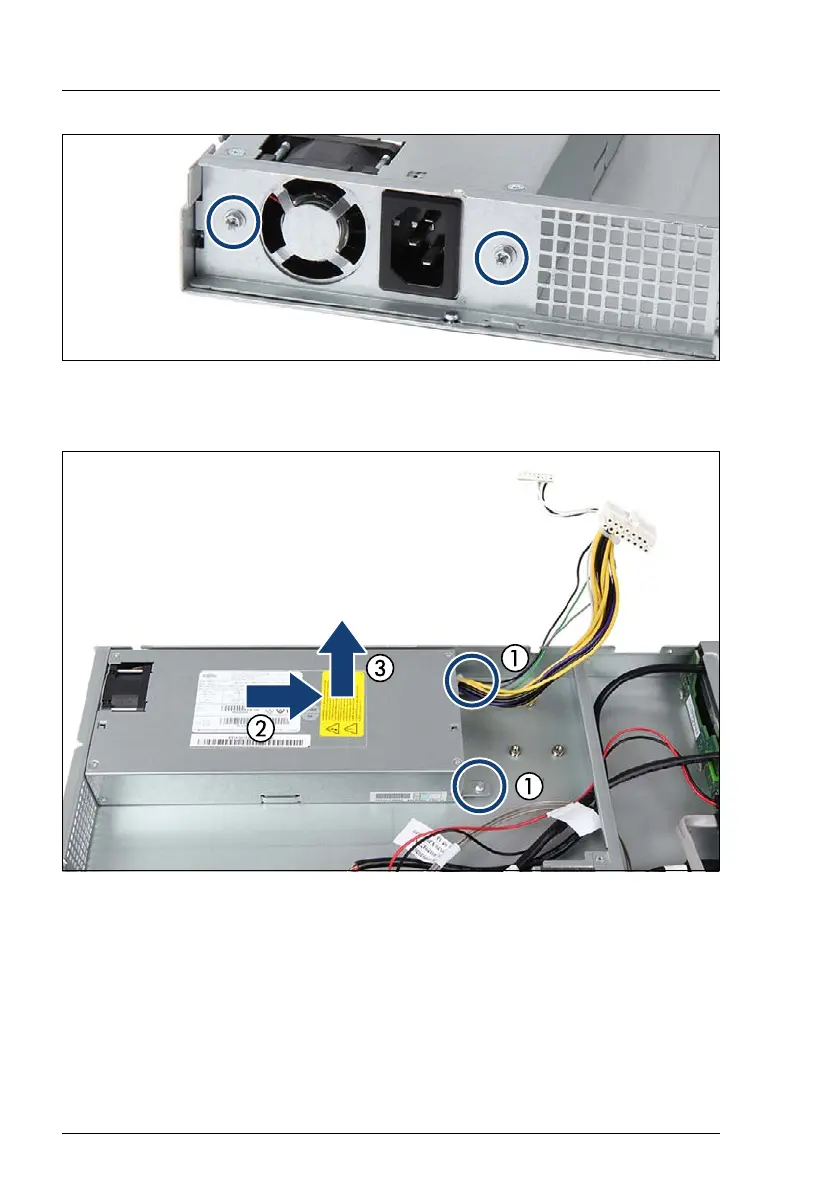

Figure 22: Removing the screws
Ê Remove the two screws (see circles).
Figure 23: Taking out the standard PSU
Ê Remove the two screws (1).
Ê Pull the PSU a few centimeters toward the inside (2).
Ê Take the PSU out upward (3).
