RX1330 M3 Upgrade and Maintenance Manual 159
Hard disk drive (HDD) / solid state drive (SSD)

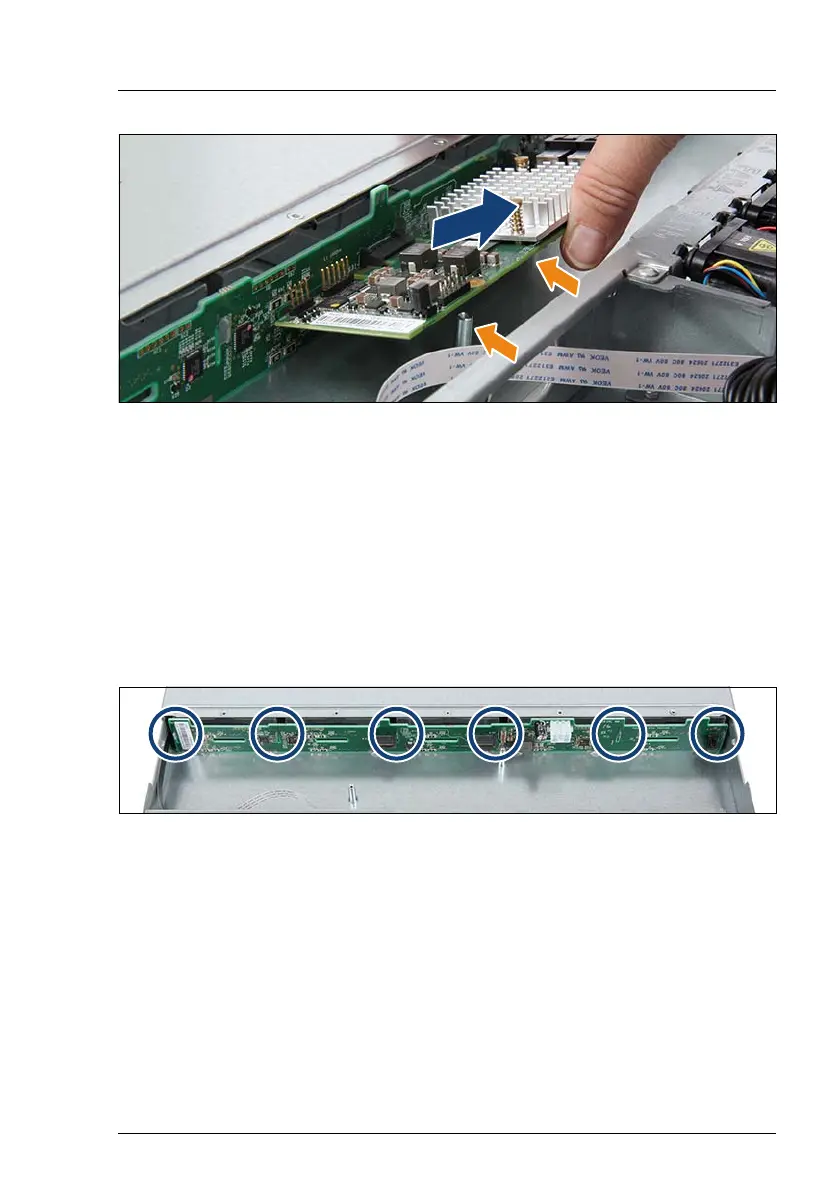

Figure 76: Removing the SAS expander board (B)
Ê Get the SAS expander board out of the two connectors of the HDD
backplane and remove it.
V CAUTION!
Lift up the SAS expander board while removing it in order to prevent
the components to be damaged by the stand-offs of the chassis (see
orange arrows).
7.2.9.3 Removing the defective 10 x 2.5-inch HDD backplane
Figure 77: Removing the 10 x 2.5-inch HDD backplane
Ê Pull the HDD backplane upward until the six hooks disengage (see circles).
Ê Take out the HDD backplane.
