266 Upgrade and Maintenance Manual RX1330 M3
13.3.2.2 Removing the front VGA board

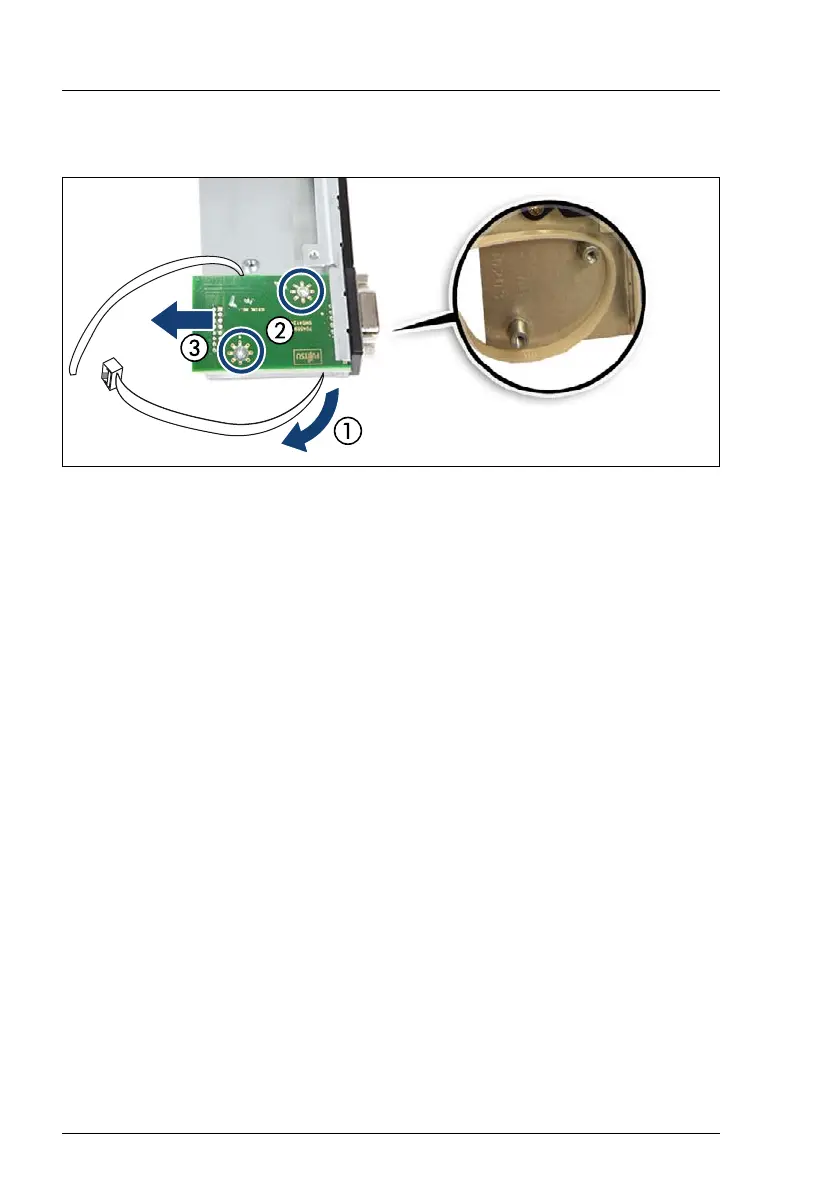

Figure 180: Removing the front VGA board
Ê If the VGA cable was secured with a cable tie, pull out the cable tie (1).
Ê Remove the two screws (2) and remove the front VGA board (3).
13.3.2.3 Installing the dummy cover
Ê Install the dummy cover (see figure 178).
13.3.2.4 Concluding steps
Ê "Installing the front panel module" on page 261
Ê "Reassembling" on page 60
Ê "Connecting the power cord" on page 64
Ê "Switching on the server" on page 66
