108 Upgrade and Maintenance Manual RX1330 M3

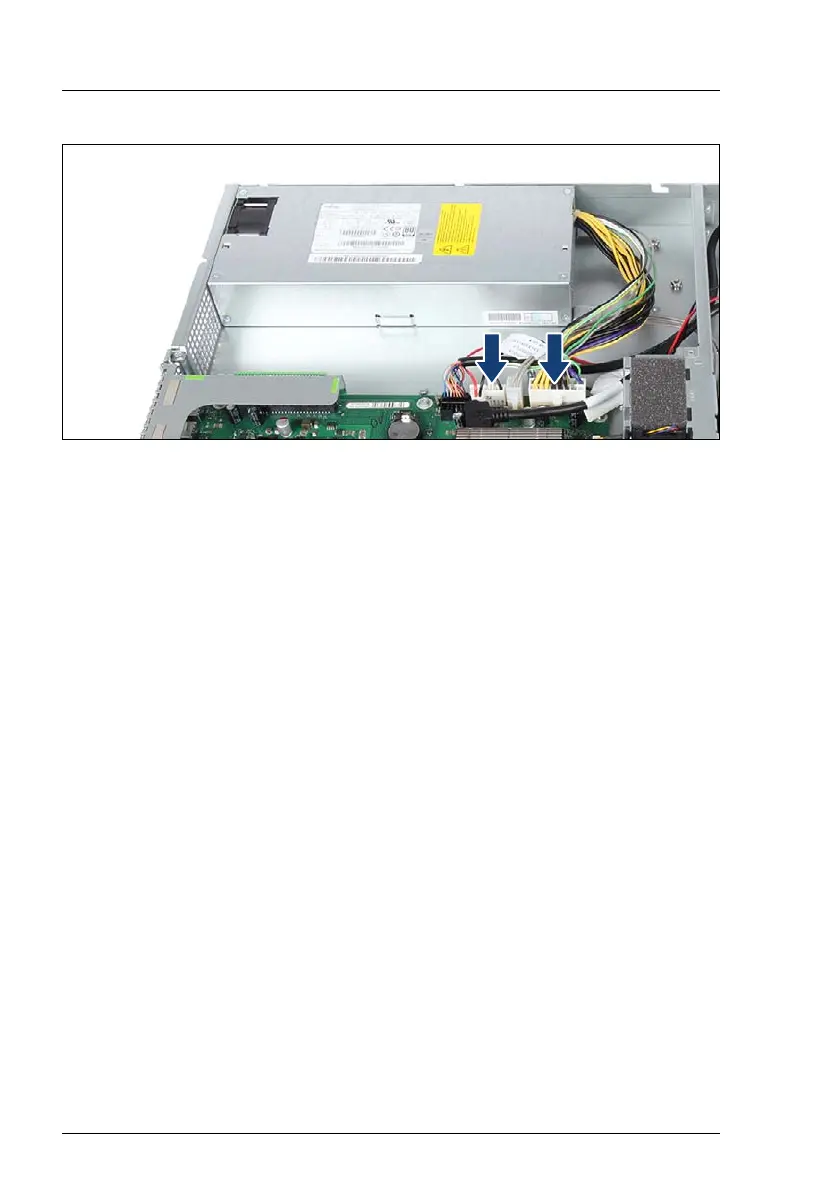

Figure 25: Connecting the power cables
Ê Connect the two power cables to the system board connectors "PC98" and
"PWR1".
For the cable plan see section "Cabling plans" on page 312.
6.2.1.4 Concluding steps
Ê "Reassembling" on page 60
Ê "Connecting the power cord" on page 64
Ê "Switching on the server" on page 66
Ê "Resuming BitLocker functionality" on page 95
Ê "Performing a fan test" on page 101
V CAUTION!
(Except for Japan) After replacing the PSU a fan calibration must be
started for the PSU fan. You will find the description for this procedure in
the manual "ServerStart".
