RX1330 M3 Upgrade and Maintenance Manual 295
System board and components

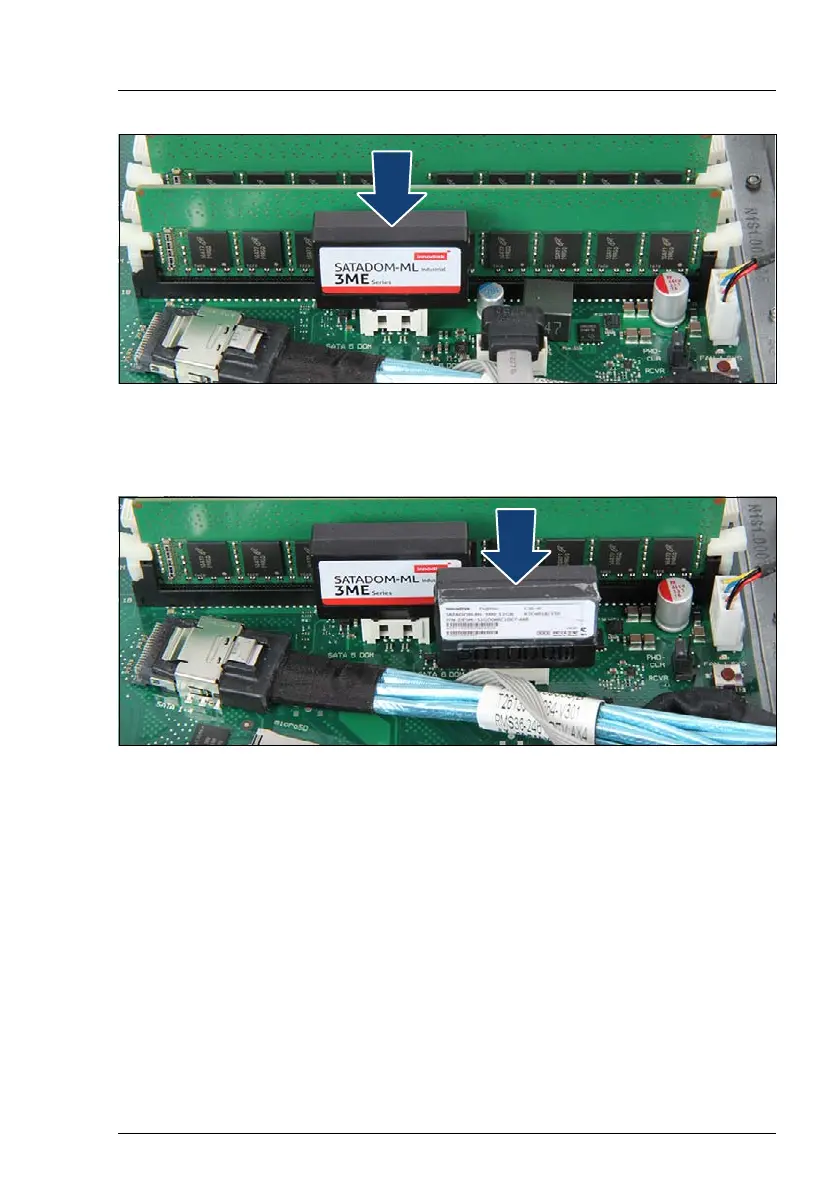

Figure 207: Installing the first SATA DOM
Ê Connect the first SATA DOM to the connector "SATA5 DOM" on the system
board.
Figure 208: Installing the second SATA DOM
Ê If applicable, disconnect the SATA cable for an ODD from connector "SATA6
DOM" on the system board.
Ê Connect the second SATA DOM to the connector "SATA6 DOM" on the
system board.
14.5.1.3 Concluding steps
Ê "Reassembling" on page 60
Ê "Connecting the power cord" on page 64
Ê "Switching on the server" on page 66
Ê "Resuming BitLocker functionality" on page 95
