334 Upgrade and Maintenance Manual RX1330 M3
16.2.3 Server rear
16.2.3.1 Connectors on the I/O panel

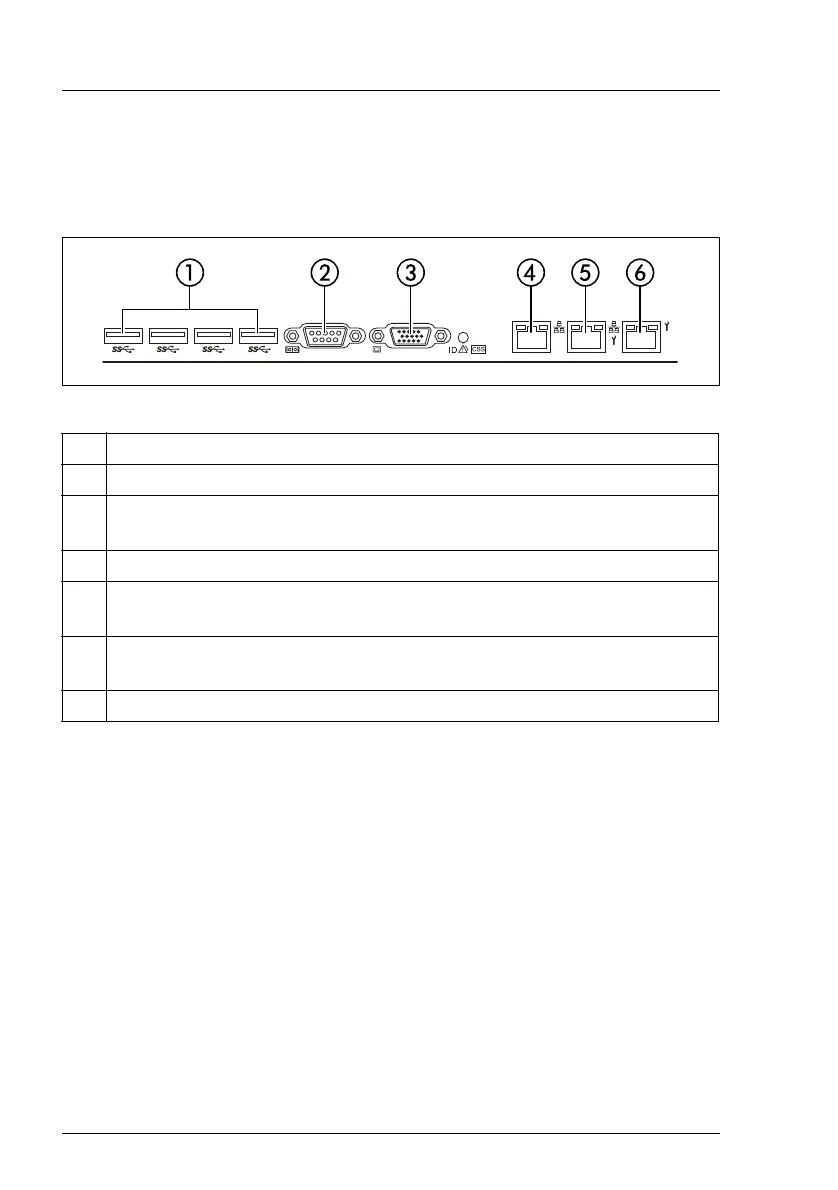

Figure 242: Connector panel
No. Description
1 4x USB 3.0 connectors
2 Serial connector COM1 (can be used as default interface or to
communicate with the iRMC S4)
3 Video connector (VGA)
4 Standard LAN connector; this connector is displayed in BIOS Setup
Utility and MAC address label as LAN1
5 Shared LAN connector (for WOL/PXE/iSCSI function); this connector is
displayed in BIOS Setup Utility and MAC address label as LAN2
6 Management LAN connector (for iRMC S4 server management function)
