RX1330 M3 Upgrade and Maintenance Manual 287
System board and components

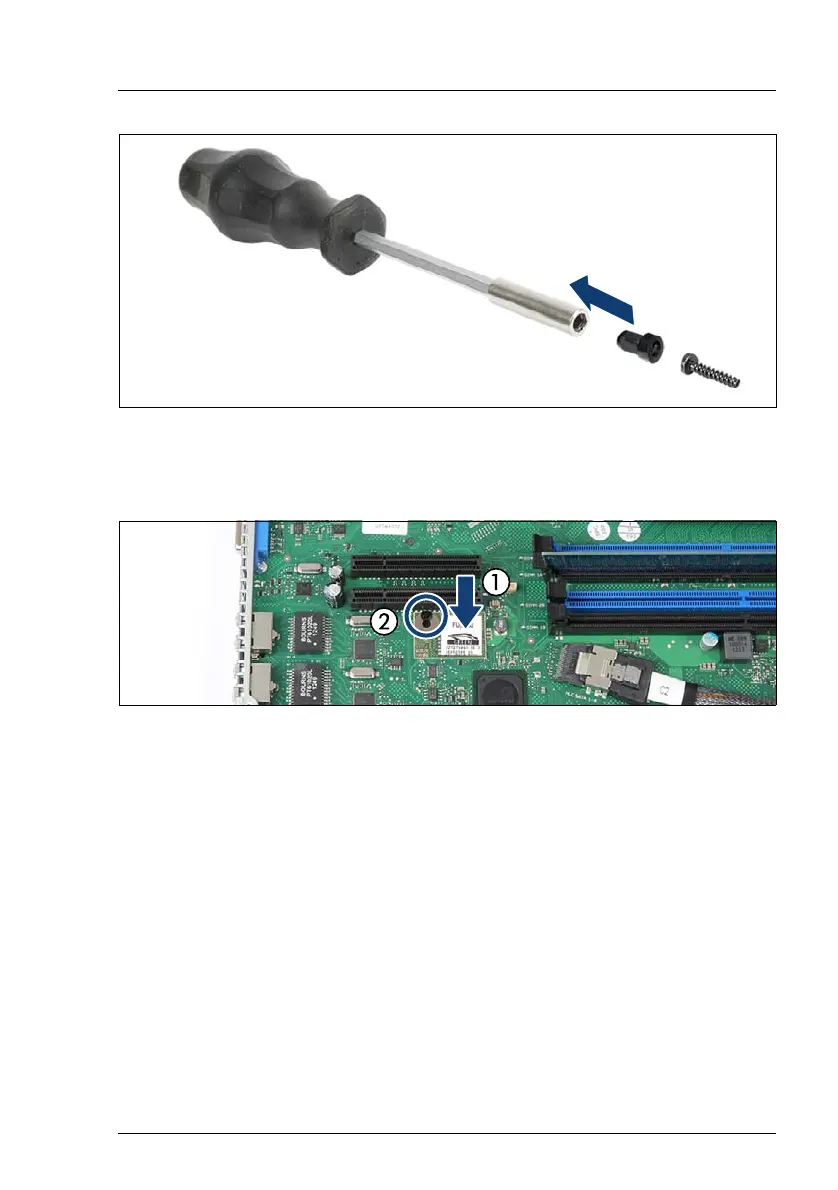

Figure 201: TPM bit insert
Ê Attach the TPM bit insert or TPM module fixing tool (for Japan) to a bit screw
driver.
Figure 202: Installing the TPM
Ê Connect the TPM to the system board (1).
Ê Fasten the TPM with the special screw for the TPM using the TPM bit insert
or TPM module fixing tool (for Japan) (2).
V CAUTION!
Do not fasten the screw too firmly. Stop it by extent where the head
of the screw lightly touches the TPM (torque value of 0.6 Nm).
14.4.1.3 Concluding steps
Ê Install the riser module 1 as described in section "Installing a riser module"
on page 68.
Ê "Reassembling" on page 60
