182 Upgrade and Maintenance Manual RX1330 M3

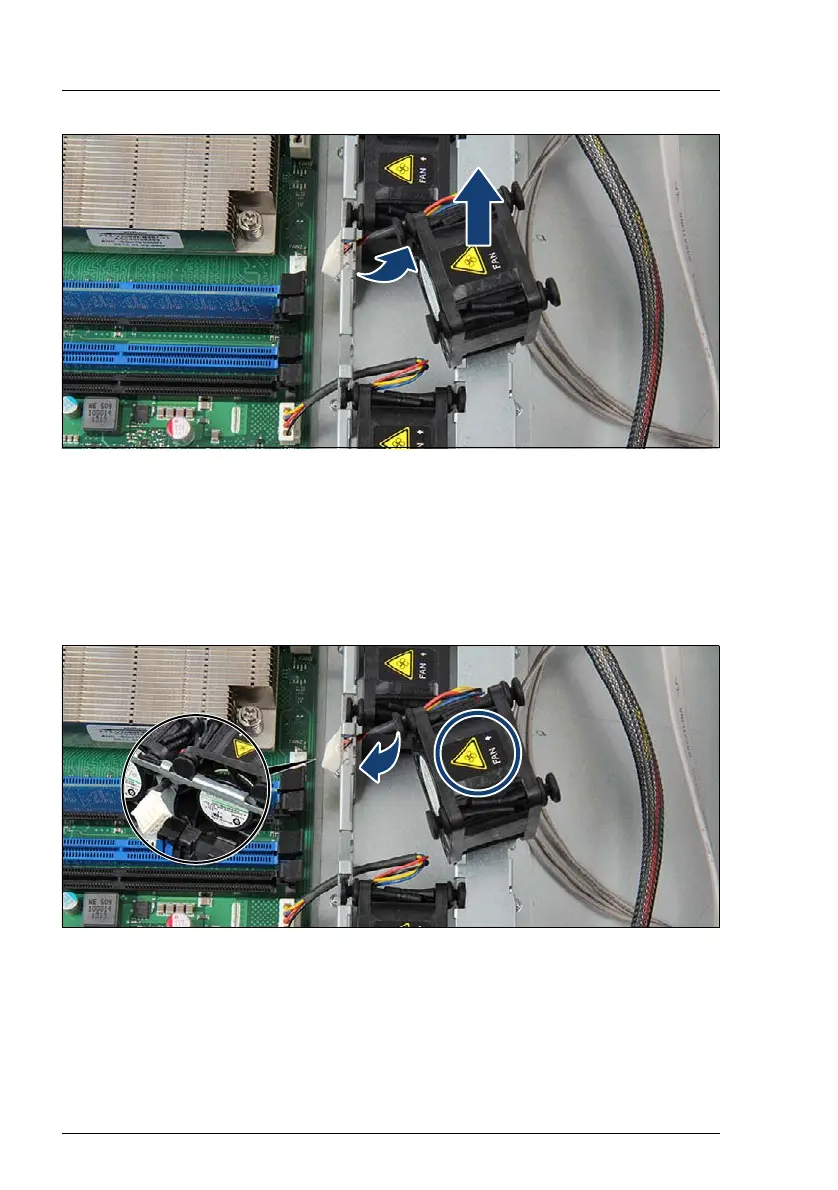

Figure 98: Removing the fan module
Ê Push the fan cable through the opening of the fan cage.
Ê Take out the fan module.
8.2.3 Installing the new fan module
Figure 99: Installing the fan module
Ê Thread the fan cable through the opening of the fan cage (see close-up) and
insert the fan module. Notice the direction of the fan label (see circle).
