RX1330 M3 Upgrade and Maintenance Manual 139
Hard disk drive (HDD) / solid state drive (SSD)
7.1.1.3 3.5-inch HDD and 3.5-inch installation frame
Installing a 3.5-inch HDD in a 3.5-inch installation frame

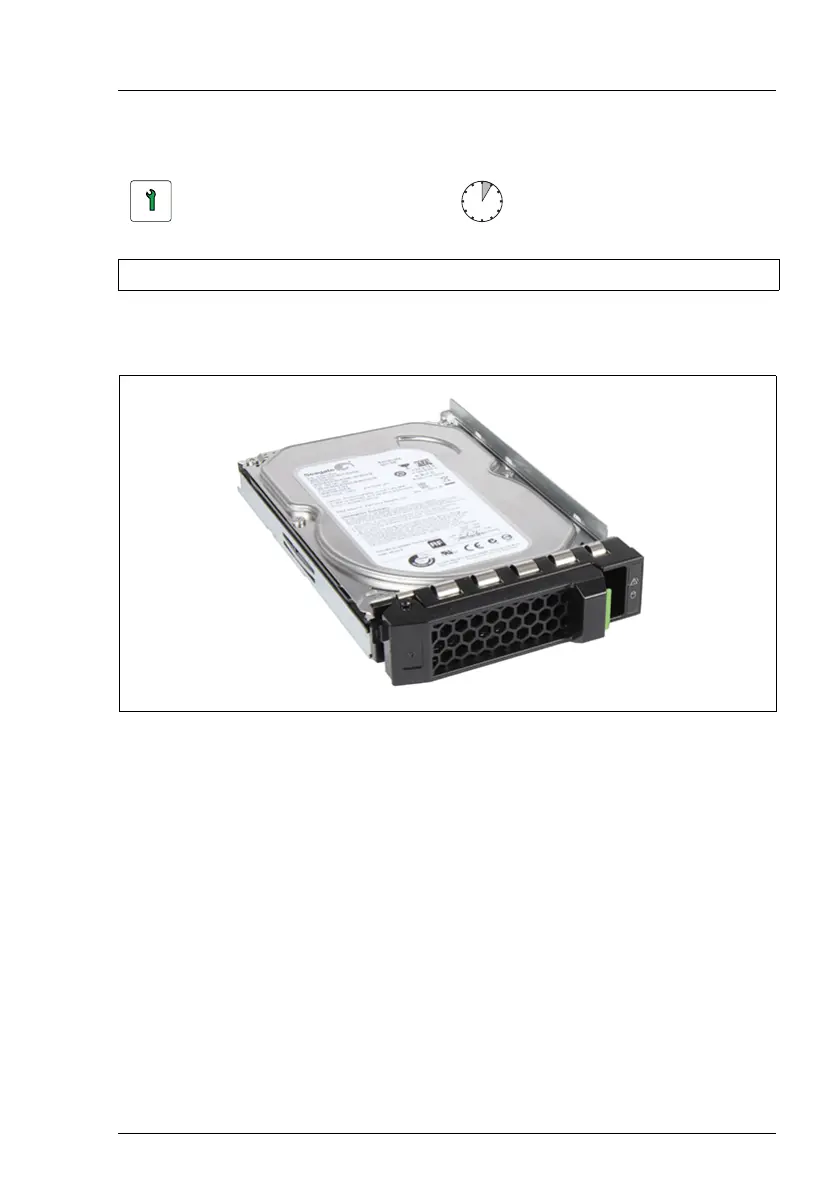

Figure 57: Installing the 3.5-inch HDD in the 3.5-inch installation frame (A)
Ê Lay the 3.5-inch HDD into the 3.5-inch HDD installation frame as shown.
Customer Replaceable Unit
(CRU)
Hardware: 5 minutes
Tools: Phillips PH1 / (+) No. 1 screw driver
