RX1330 M3 Upgrade and Maintenance Manual 183

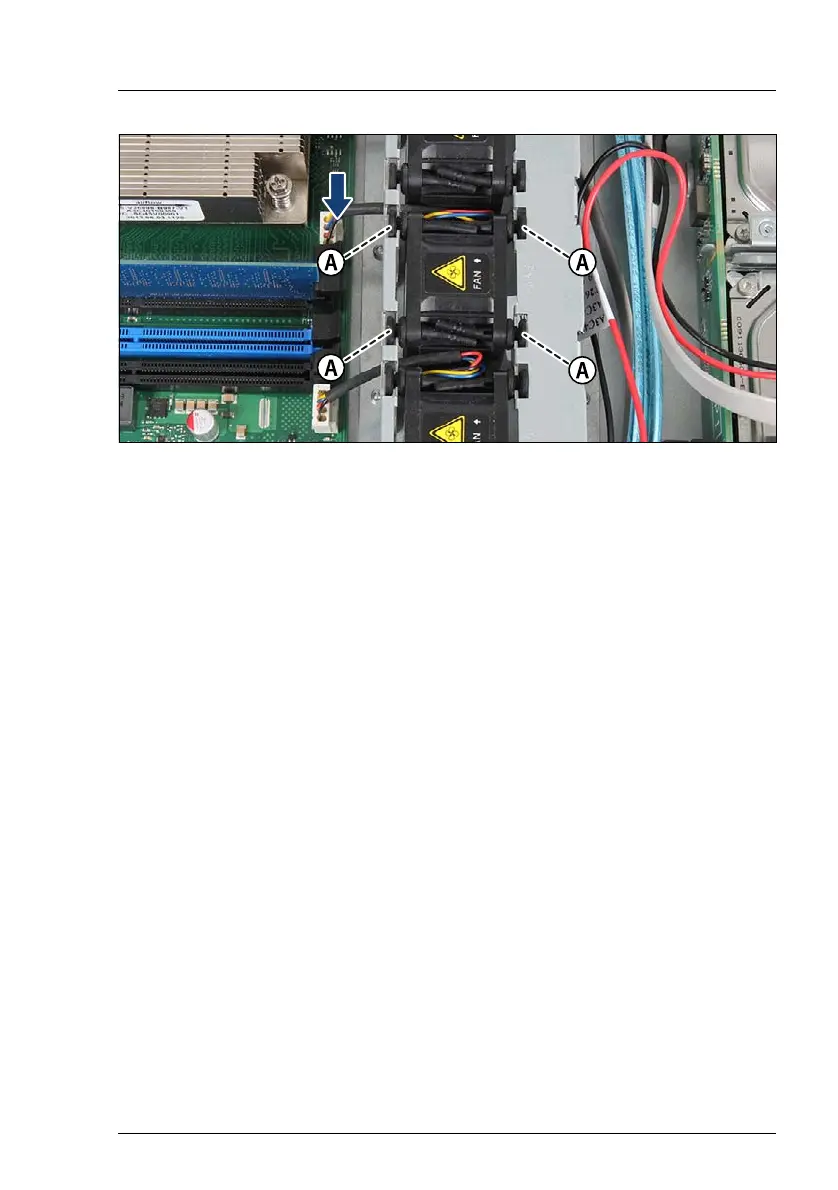

Figure 100: Connecting the fan cable
Ê Press down the four rubber pins until they engage (A).
Ê Connect the fan cable to the system board.
8.2.4 Concluding steps
Ê "Reassembling" on page 60
Ê "Connecting the power cord" on page 64
Ê "Switching on the server" on page 66
Ê "Performing a fan test" on page 101
