RX1330 M3 Upgrade and Maintenance Manual 299
System board and components

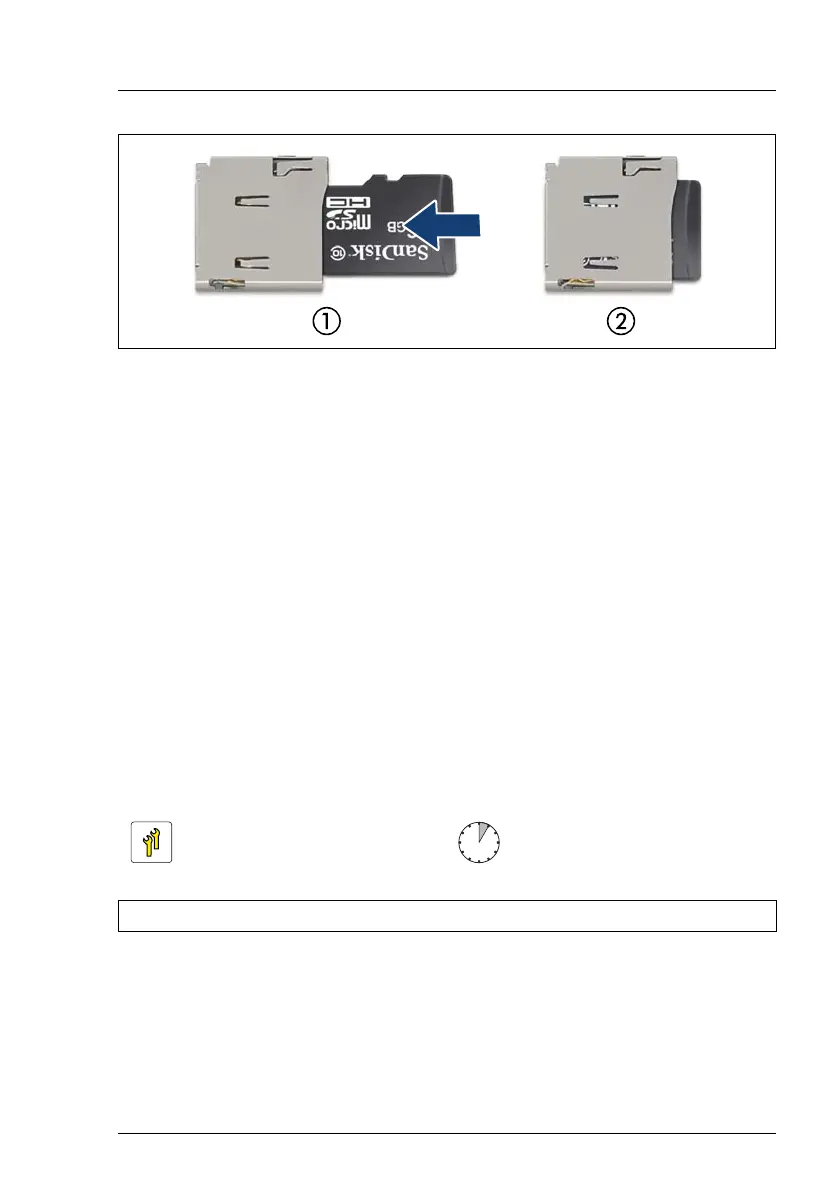

Figure 211: Installing the iRMC microSD card
Ê With the label facing up, insert the iRMC microSD card into the microSD
card slot (1) until it locks in place (2).
I The onboard position of the microSD card slot can be found in section
"Connectors and indicators on the system board" on page 324.
14.6.1.3 Concluding steps
Ê Install the riser module 1 as described in section "Installing a riser module"
on page 68.
Ê "Reassembling" on page 60
Ê "Connecting the power cord" on page 64
Ê "Switching on the server" on page 66
14.6.2 Removing the iRMC microSD card
14.6.2.1 Preliminary steps
Ê "Shutting down the server" on page 53
Ê "Disconnecting the power cord" on page 54
Ê "Getting access to the component" on page 55
Upgrade and Repair Unit
(URU)
Hardware: 5 minutes
Tools: a pair of side-cutting pliers
