RX1330 M3 Upgrade and Maintenance Manual 131

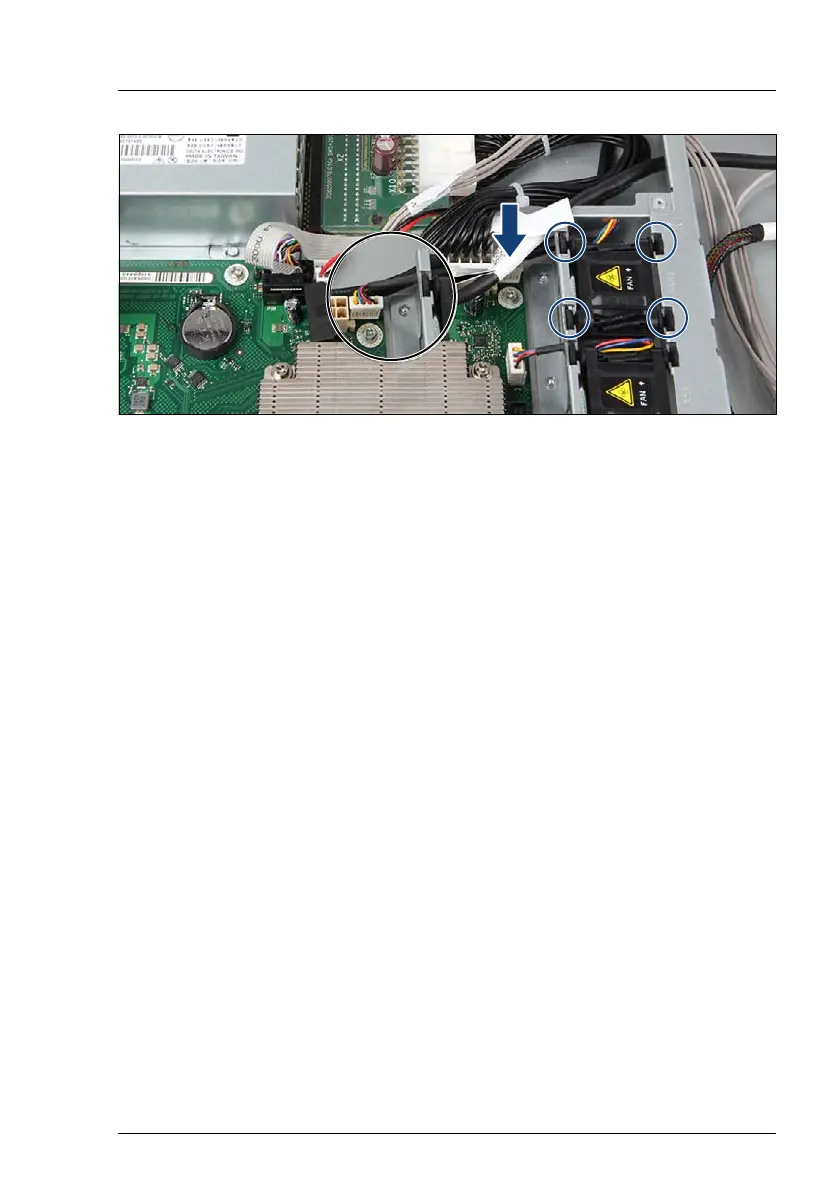

Figure 51: Installing fan module 5
Ê Press down the four rubber pins until they engage (see circles).
Ê Connect the fan cable to connector "FAN5" on the system board.
For the cable plan see section "Cabling plans" on page 312.
For the connector see section "Onboard connectors" on page 324.
6.5.4 Concluding steps
Ê "Reassembling" on page 60
Ê "Connecting the power cord" on page 64
Ê "Switching on the server" on page 66
Ê "Resuming BitLocker functionality" on page 95
