Fujitsu PRIMERGY RX1330 M3

RX1330 M3 Upgrade and Maintenance Manual 127
Power supply unit (PSU)

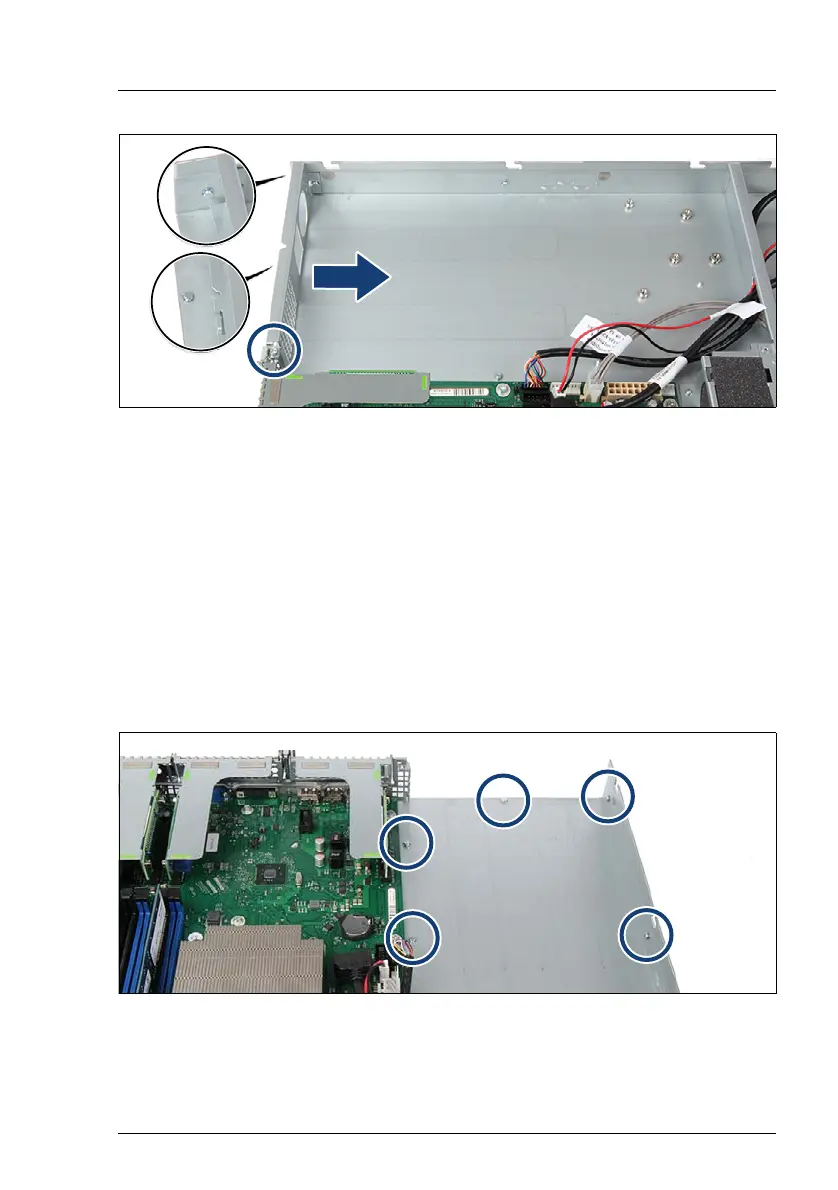

Figure 43: Removing the adapter plate
Ê Remove the screw (see circle) which attach the adapter plate of the PSU to
the housing.
Ê Push the adapter plate a few centimeters inward to detach it from the two
bolts (see close-ups).
Ê Remove the adapter plate.
6.5.3 Installing the upgrade kit
Installing the PSU cage
Figure 44: Positions of the bolts
