16.1.3 Server interior

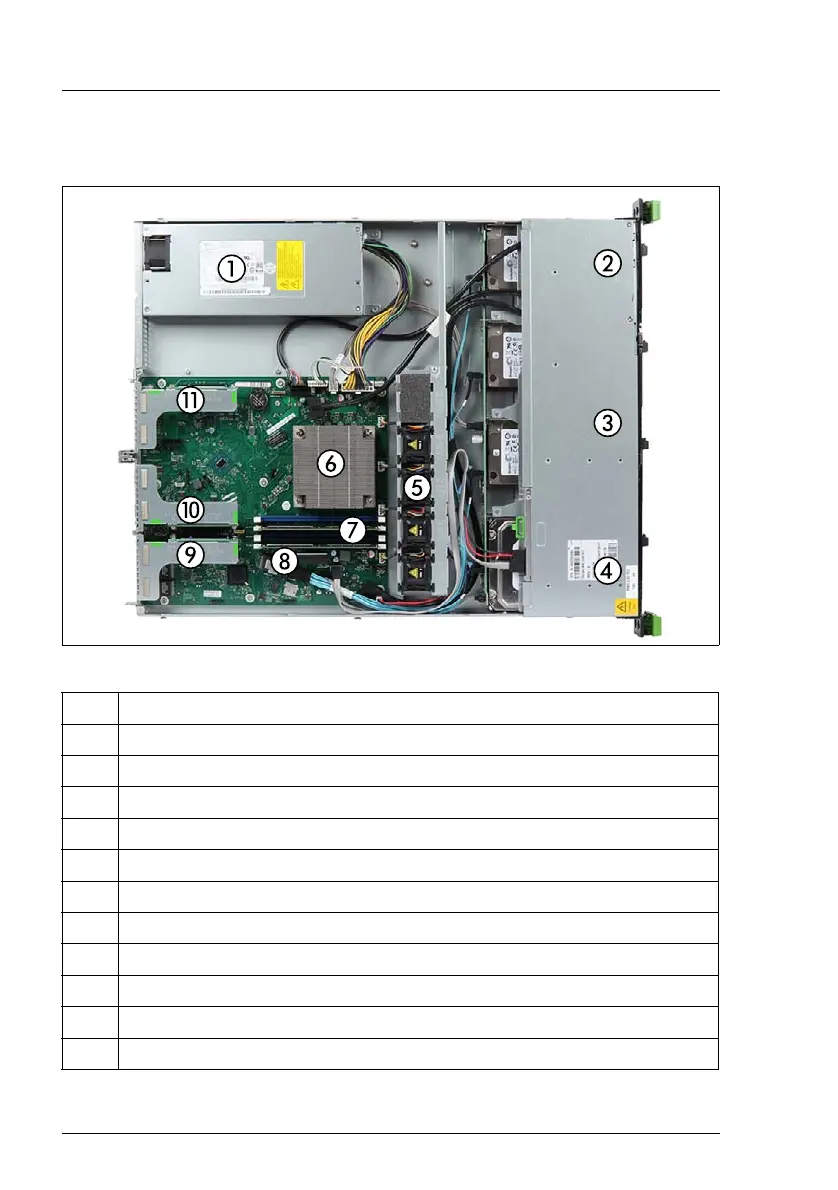

Figure 234: Interior (example 3.5-inch HDDs and standard PSU)
Pos. Component
1 Standard PSU: one PSU
2 Front panel module / front VGA (option) / dummy cover
3 Up to 4x 3.5-inch HDDs / dummy modules
4 ODD (option) / dummy cover
5 4x fan modules
6CPU
7 Main memory
8 SATA DOM (option)
9 Riser module 1
10 Riser module 2
11 Riser module 3
